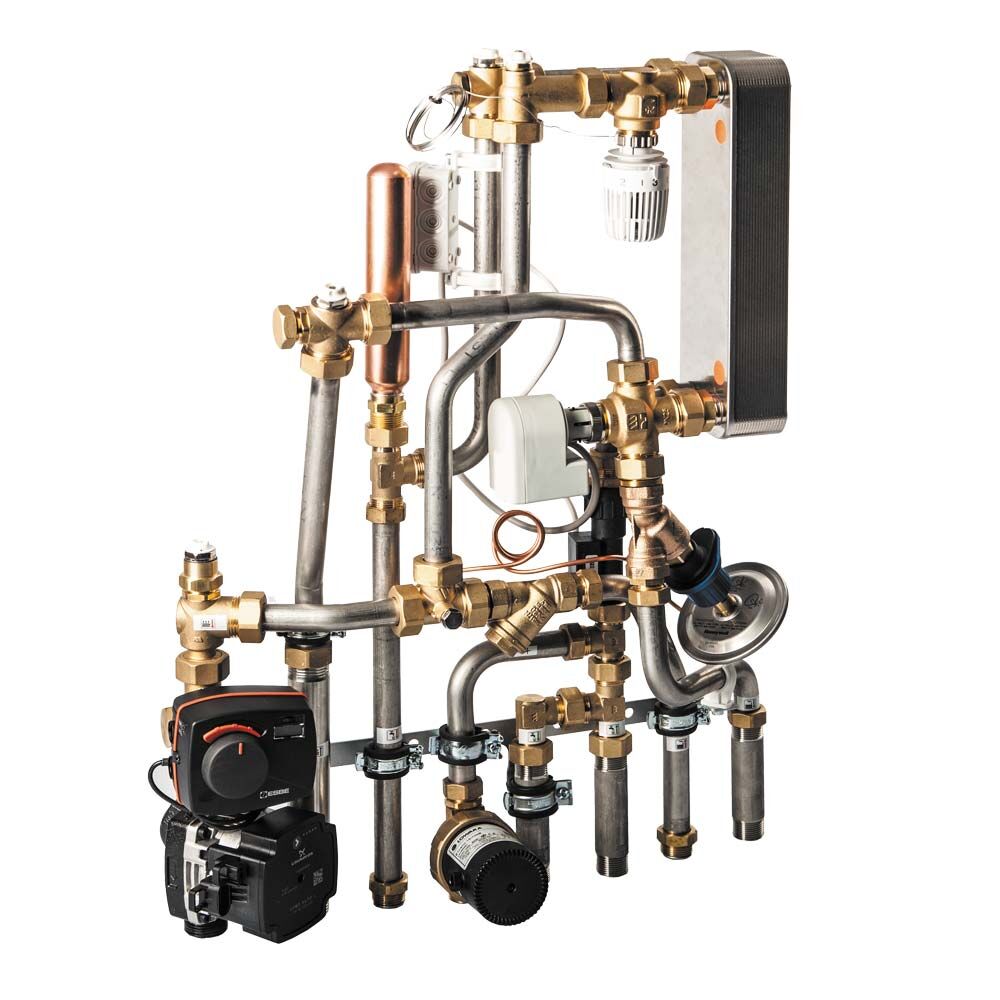

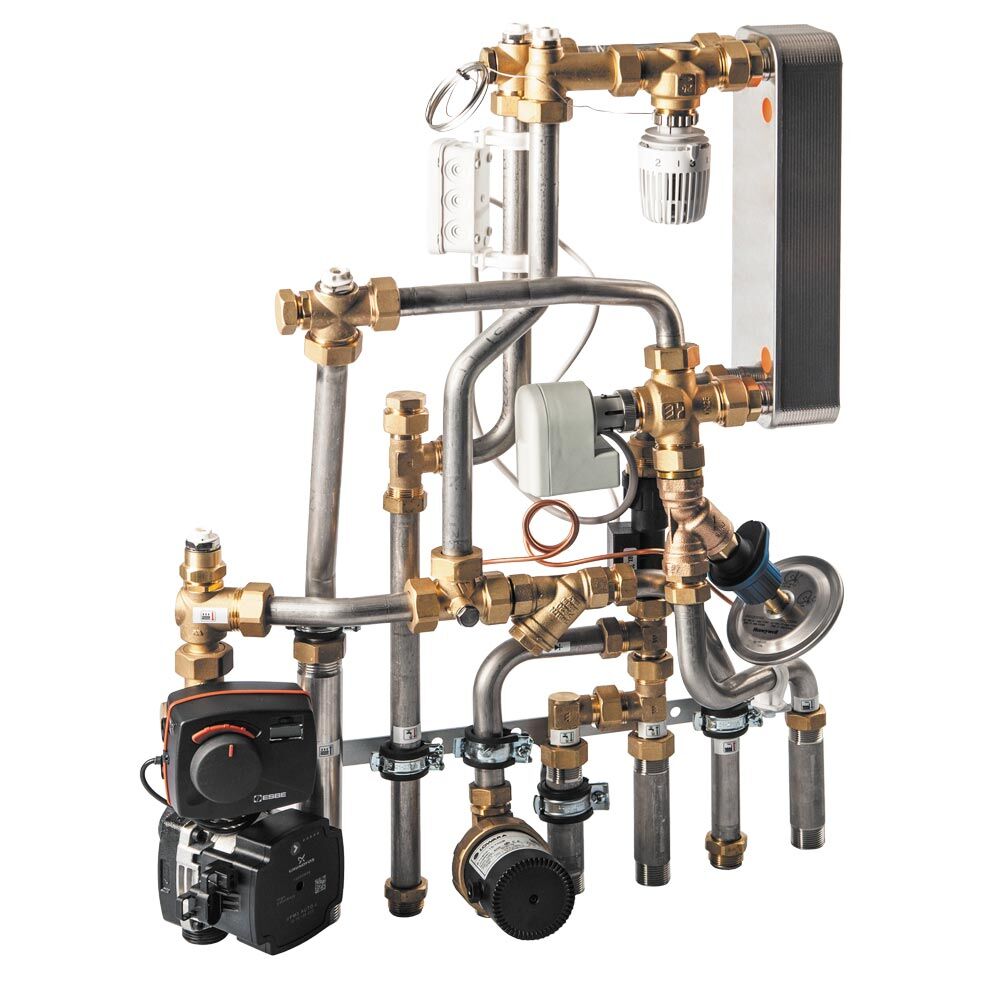

Heat Interface Unit HIU 2 HKM for mixed heating circuits

Description

For transferring heat from local or district heating networks to heating and domestic hot water (DHW) systems in single-family homes, apartment buildings, terraced housing or apartment blocks. Direct connection to mixed heating circuits such as a radiant panel heating system.Indirect, hygienic domestic hot water generation by means of a plate heat exchanger (stainless steel or copper brazed). Includes a priority switch for domestic hot water generation. Integrated adapters for heat and cold water meters.Ready-to-fit, space-saving design with clear arrangement of all valves. Uniform, modular design of connections and accessories. Includes a domestic hot water and mixing unit with electronic fix-point control of the flow temperature.

Tap temperature freely adjustable between 20 and 70 °C
Tap capacity 12, 17 or 22 l/min.

Technical Features

Part no.

Type	Part no.
HIU2 HKM 12	10079851	Tap capacity 12 l/min, copper brazed
HIU2 HKM 12	10079892	Tap capacity 12 l/min, stainless steel brazed
HIU2 HKM 17	10078463	Tap capacity 17 l/min, copper brazed
HIU2 HKM 17	10079894	Tap capacity 17 l/min, stainless steel brazed
HIU2 HKM 22	10085287	Tap capacity 22 l/min, copper brazed
HIU2 HKM 22	10085288	Tap capacity 22 l/min, stainless steel brazed
