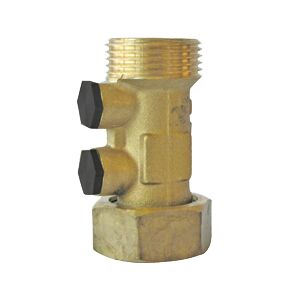

Check-valve W.F. Compact, length 58 mm
×
![]()
Check-valve W.F. Compact, length 58 mm
Check-valve W.F. Compact, length 58 mm
Description
Controllable anti-pollution check valve, EA type. For all drinking water networks: building, water distribution, pumping. Model with swivel nut for fitting directly after the water meter. Quiet operation, low pressure drops. Total tightness even with very low counter-pressure. Brass body with two F 1/8” (5x10) bosses with two PPA or brass plugs. POM (polyacetal) disc, stainless steel spring, EPDM seal. Very high flow rates, fitting in all positions. Same features as the WF model except for length of 58 mm and 1/8" (5x10) pressure test points. Supplied with PPA or brass plugs.
Max. temperature: 90°C.
Max. pressure: 10 bar.
Approval: NF EN 13959, complies with EN 1717.
Max. pressure: 10 bar.
Approval: NF EN 13959, complies with EN 1717.
Technical Features
Part no.
| for water meter | valve thread | part number | packaging |
| size 15 (plastic plugs) | F/M 3/4” (20x27) | 2224181 | 10 |
| size 15 (captive drain cocks) | F/M 3/4” (20x27) | 2224182 | 10 |
