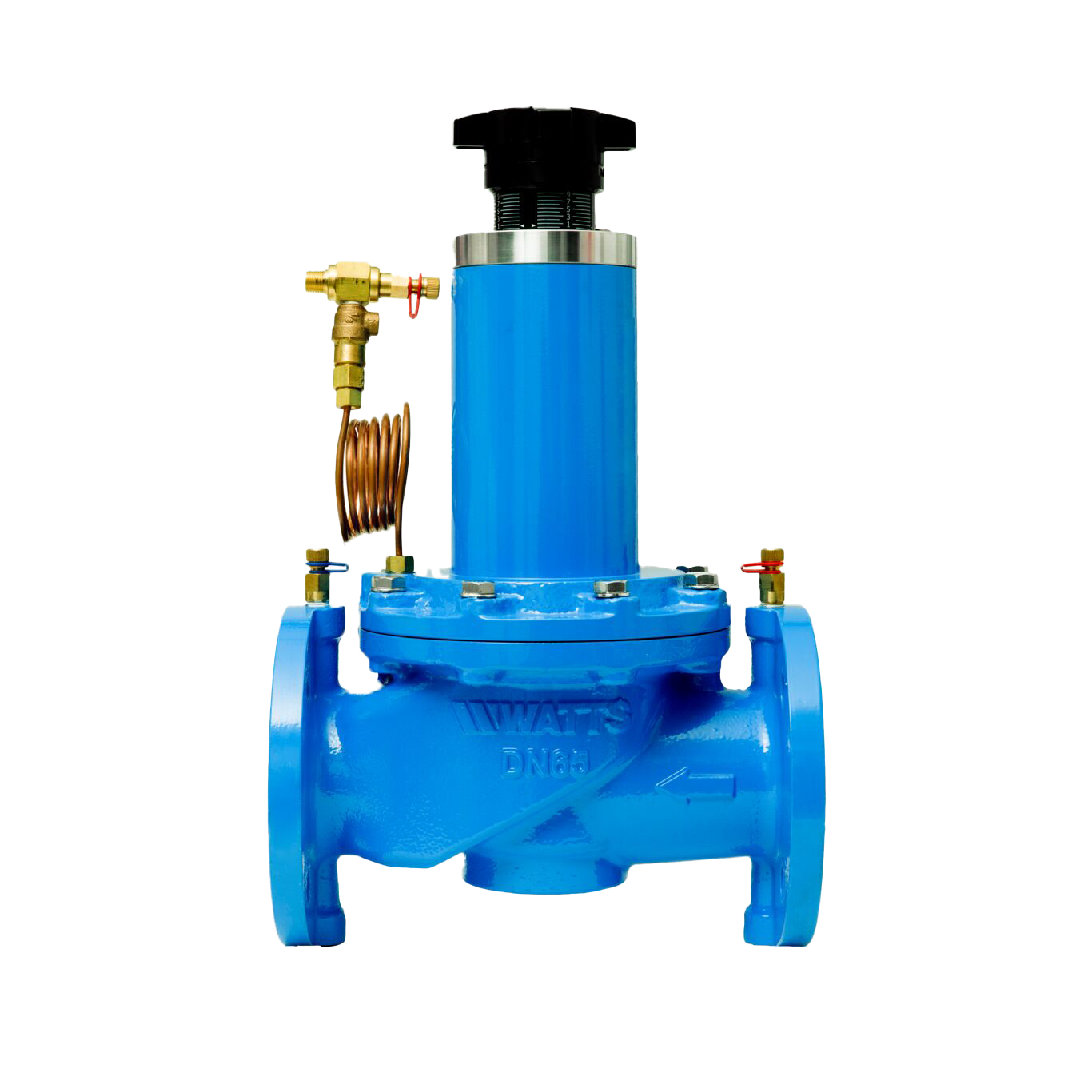

Differential pressure-balancing valve W-DPBV-16Q

Description

Differential pressure-balancing valve with flanged connections for heating and cooling systems. Self-acting differential pressure control, no external power needed. On-site setting of differential pressure. Wide controllable range of differential pressure. Handwheel equipped with differential pressure indicator. Able to be shut off by handwheel. Self-sealing measuring points to protect against leakage. Equipped with measuring points and air vent. Equipped with three-way measuring connector. High-pressure guide tube with ball valve.
Nominal Pressure: PN16
Temperature Range: -10°C÷120°C

Technical Features

Part no.

Type	Part No.	DN	ΔP Control (kPa)	Kvs (m3/h)	Weight (kg)
W-DPBV065S-16Q	61180040E	65	20-80	60	26.5
W-DPBV080S-16Q	61180041E	80	20-80	80	33.5
W-DPBV100S-16Q	61180042E	100	20-80	110	47
W-DPBV125S-16Q	61180043E	125	20-80	180	69.5
W-DPBV150S-16Q	61180044E	150	20-80	250	102
W-DPBV065L-16Q	61180045E	65	40-150	60	26.5
W-DPBV080L-16Q	61180046E	80	40-150	80	33.5
W-DPBV100L-16Q	61180047E	100	40-150	110	47
W-DPBV125L-16Q	61180048E	125	40-150	180	69.5
W-DPBV150L-16Q	61180049E	150	40-150	250	102
