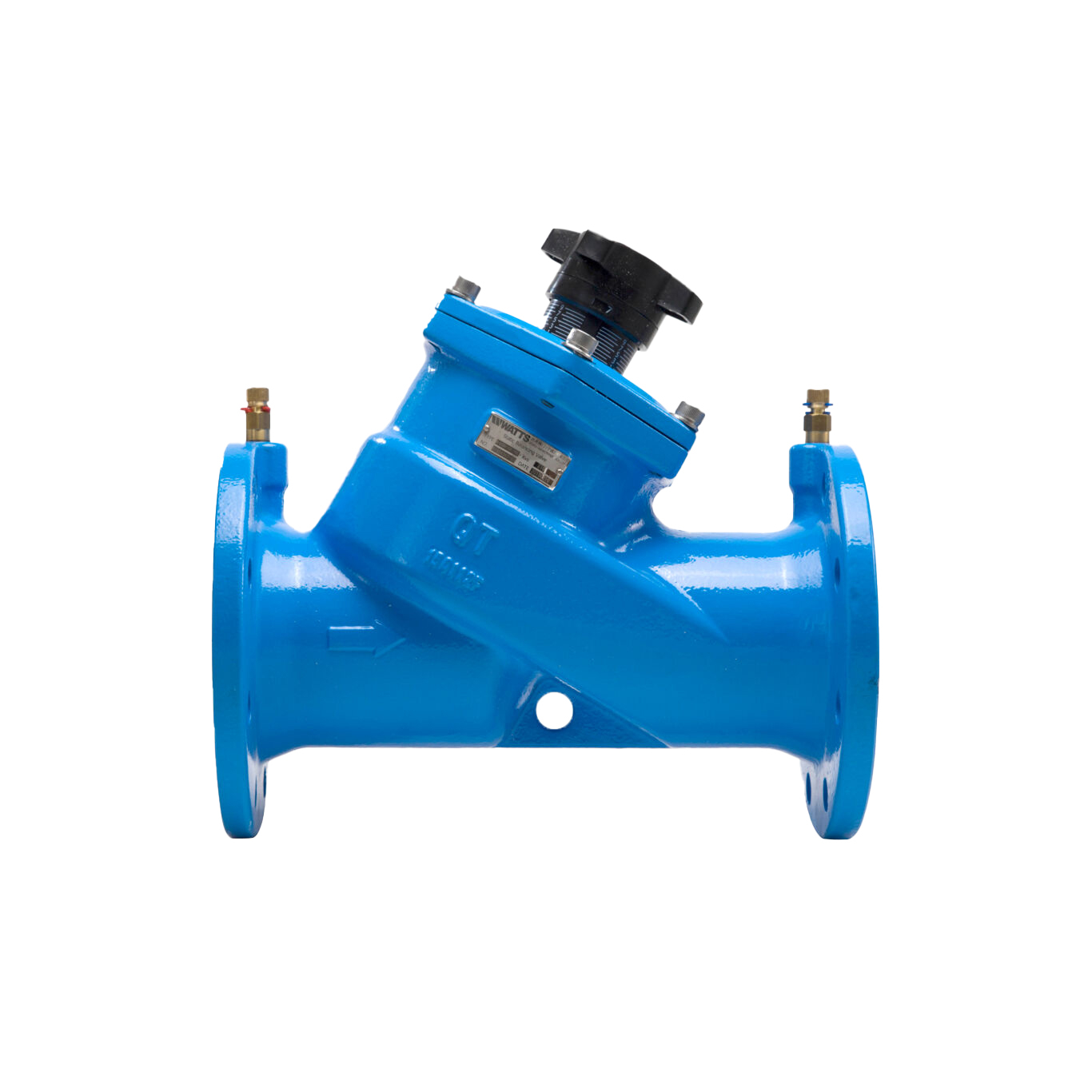

Static Balancing Valve W-STBV-16Q

Description

Balancing and control valve with flanged connections for heating and cooling systems. Accurate flow control, Numerical indicator of opening degree on the handwheel, Lockable set position, Shut-off function for troubleshooting or maintenance, Balanced valve core, easy to adjust, Self-sealing measuring points to protect against leakage, No-Rising stem, Variable Orifice
• Nominal Pressure: PN 16
• Temperature Range: -10°C÷120°C

Technical Features

Part no.

Type	Part No.	DN	Kvs	Weight (kg)
W-STBV-16Q	61170067E	65	94,47	15,63
W-STBV-16Q	61170068E	80	137,31	19,93
W-STBV-16Q	61170069E	100	211,20	26
W-STBV-16Q	61170070E	125	330,22	38
W-STBV-16Q	61170071E	150	408,32	62
W-STBV-16Q	61170072E	200	759,21	91,81
W-STBV-16Q	61170073E	250	1162,44	152,4
W-STBV-16Q	61170074E	300	1703,45	230,13
