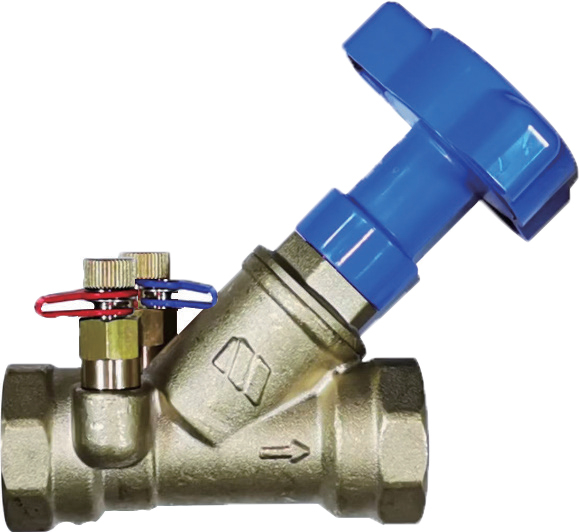

Static Balancing Valve W-STBV-25T
×
![]()
Static Balancing Valve W-STBV-25T
Static Balancing Valve W-STBV-25T
Description
Balancing and control valve with threaded connections for heating and cooling systems. Accurate flow control. Numerical indicator of opening degree on the hand wheel. Lockable set position. Shut-off function for troubleshooting or maintenance. Self-sealing measuring points to protect against leakage. Non-rising stem.
Nominal Pressure: PN 25
Temperature Range: 0°C÷120°C
Technical Features
Part no.
| Type | Part No. | DN | Kvs (valve) | Kvs (orifice) | Weight (kg) |
| W-STBV015-25T | 61170051E | 15 | 2,6 | 3,3 | 0,49 |
| W-STBV020-25T | 61170052E | 20 | 4,7 | 6,9 | 0,54 |
| W-STBV025-25T | 61170053E | 25 | 7,5 | 10,9 | 0,71 |
| W-STBV032-25T | 61170054E | 32 | 12,9 | 21,6 | 0,97 |
| W-STBV040-25T | 61170055E | 40 | 18,5 | 29,0 | 1,23 |
| W-STBV050-25T | 61170056E | 50 | 28,8 | 49,0 | 1,70 |
