Description

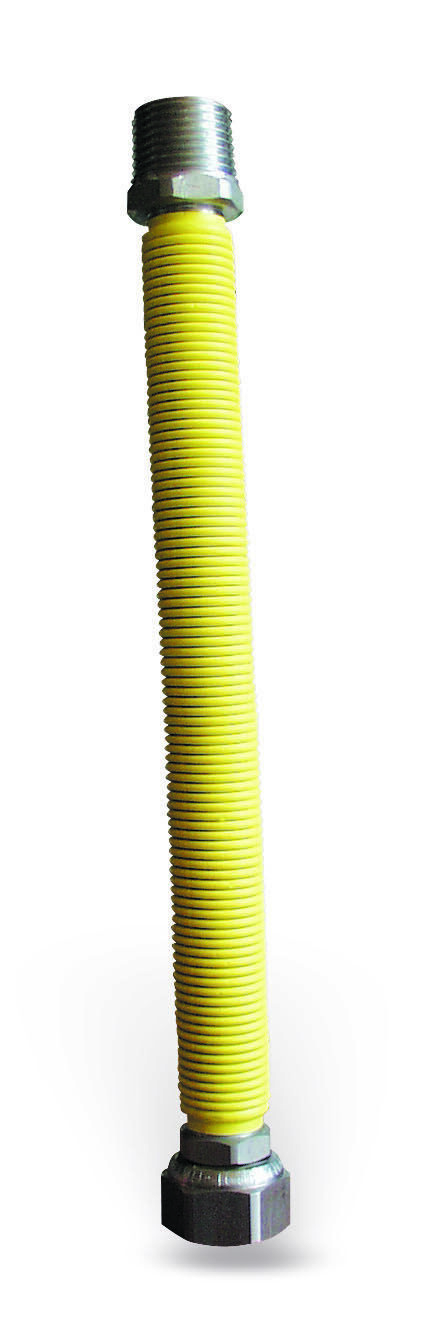

Stainless steel extendable flexible joint with continuous outer casing, suitable for connecting gas appliances. Deformation with bend radius of not less than twice the nominal diameter. Suitable for natural gas, propane, butane and LPG. Axial elongation approximately twice the initial measurement. Polyethylene casing, NBR gasket. PN 0.5 bar. Female fitting: union nut with ISO 228-1 straight thread, male fitting: EN 10226-1 type R gas taper thread.

Technical Features

Part no.

TypePart NumberConnectionDescriptionQ.ty/BoxBox/Carton
GE09160151/2”M x 1/2”FMin. length 90 mm, max. 140 mm11
GE09160203/4”M x 3/4”FMin. length 90 mm, max. 140 mm11
GE09160251”M x 1”FMin. length 90 mm, max. 140 mm11
GE09161151/2”M x 1/2”FMin. length 90 mm, max. 140 mm11
GE09161203/4”M x 3/4”FMin. length 130 mm, max. 220 mm11
GE09161251”M x 1”FMin. length 130 mm, max. 220 mm11
GE09162151/2”M x 1/2”FMin. length 130 mm, max. 220 mm11
GE09162203/4”M x 3/4”FMin. length 130 mm, max. 220 mm11
GE09162251”M x 1”FMin. length 130 mm, max. 220 mm11
