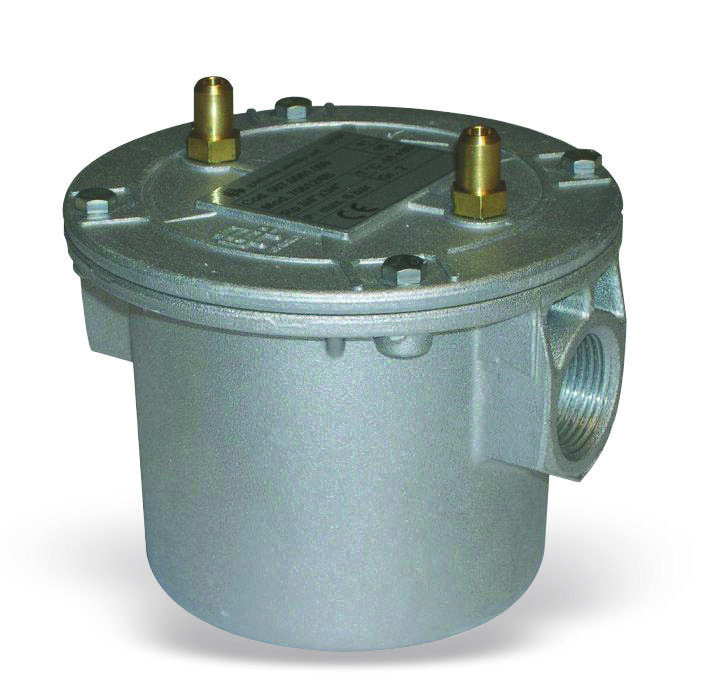

Gas filter 70600/6B
×
![]()
Gas filter 70600/6B
Gas filter 70600/6B
Description
Aluminium gas filter; filter element composed of two Viledon P15/500S panels approved to DIN EN779, synthetic filter cage with penetration-resistant steel reinforcement; NBR cover O-ring. With two tapping points. Suitable for manufactured gas, natural gas, liquefied petroleum gas (LPG), non-aggressive gas and air. PN 6 with 2 tapping points. Filtration rating 50 μm. Operating temperature range: -20÷80°C.
Technical Features
Part no.
Models
| Type | Part Number | Connection | Q.ty/Box | Box/Carton |
| 70611/6B | 007.0060.000 | Rp ½" | 1 | 1 |
| 70612/6B | 007.0061.000 | Rp ¾" | 1 | 1 |
| 70602/6B | 007.0062.000 | Rp 1" | 1 | 1 |
| 70604/6B | 007.0063.000 | Rp 1¼" | 1 | 1 |
| 70603/6B | 007.0064.000 | Rp 1½" | 1 | 1 |
| 70631/6B | 007.0065.000 | Rp 2" | 1 | 1 |
Spare parts
| Model | Part no. | Description | For filters |
| 3216/6B | 014.0091.002 | Filter element + cover gasket | 70611/6B 70612/6B |
| 3217/6B | 014.0092.002 | Filter element + cover gasket | 70602/6B 70604/6B 70603/6B |
| 3218/6B | 014.0093.002 | Filter element + cover gasket | 70631/6B |
