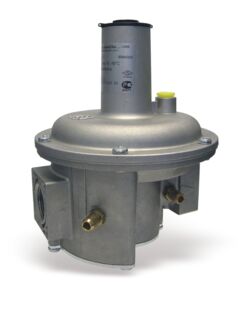

Gas governor FGDR/COM with filter unit inside
×
![]()
Gas governor FGDR/COM with filter unit inside
Gas governor FGDR/COM with filter unit inside
Description
Compact aluminium pressure regulator with built-in filter, to EN 88-1. Max. inlet pressure 450÷500 mbar. Max. outlet pressure 160 mbar. Closure control. Suitable for manufactured gas, natural gas, liquefied petroleum gas (LPG), non-aggressive gas and air. Operating temperature range: -15÷60°C.
Gas governor designed according to the EN88-1.
Max working pressure: 500mbar
Pressure gas governor CLASS A (P inlet 450 up to 500 mbar);
Ambient temperature: -15°C + 60°C
Resistance according to EN13611.
All units are available complete with gas filter, safety diaphragm, internal pipe impulse, safety gaskets, inlet/outlet pipe tap connections.
Technical Features
Part no.
| Type | Part Number | Connection | Description | Q.ty/ Box | Box/ Carton |
| FGDR15/COM | 009.0300.003 | 1/2” | With red spring 20 - 55 mbar | 1 | 1 |
| FGDR15/COM | 009.0300.005 | 1/2” | With blue spring 50 - 200 mbar | 1 | 1 |
| FGDR20/COM | 009.0301.003 | 3/4” | With red spring 20 - 55 mbar | 1 | 1 |
| FGDR20/COM | 009.0301.005 | 3/4” | With blue spring 50 - 200 mbar | 1 | 1 |
