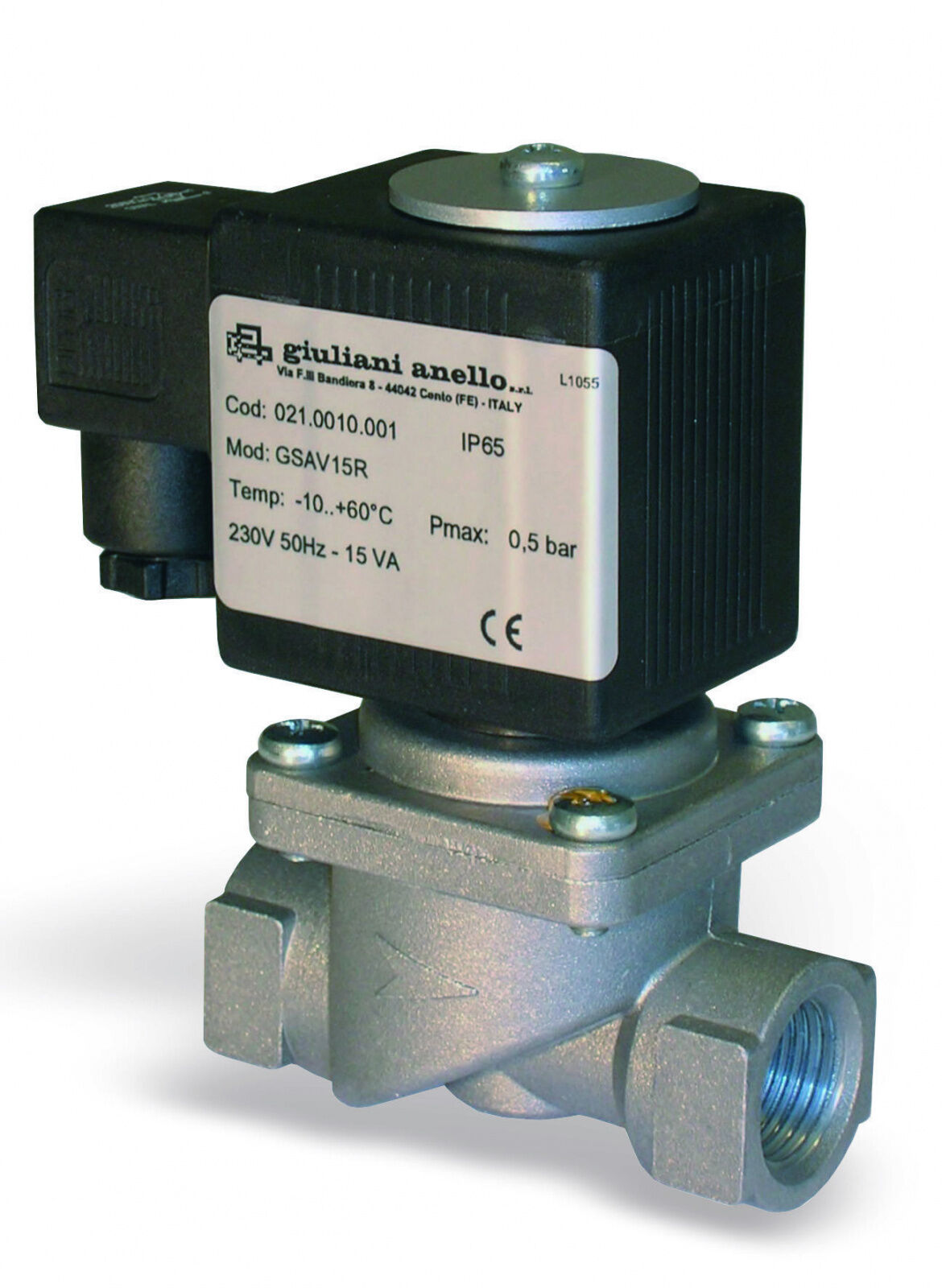

Automatic gas solenoid valve N.C. GSAV
Automatic gas solenoid valve N.C. GSAV
Description
Automatic ON-OFF normally closed class A gas solenoid valve with threaded connections. Quick opening and closing with adjustable flow rate. Aluminium body. Coil with IP65 connector (1/2"-3/4"- 1"). Coil with IP54 electrical enclosure (1/4"1/2"-2"). Suitable for manufactured gas, natural gas, liquefied petroleum gas (LPG), non-aggressive gas and air. Operating temperature range: -20÷60°C.
Technical Features
Part no.
Type | Part Number | Connection | Description | Q.ty/Box | Box/Carton |
GSAV15/02B | 021.0020.001 | 1/2" | Voltage. 230 Vac. Press. max 0,2bar | 1 | 1 |
GSAV20/02B | 021.0021.001 | 1/2" | Voltage. 230 Vac. Press. max 0,2bar | 1 | 1 |
GSAV25/02B | 021.0022.001 | | Voltage. 230 Vac. Press. max 0,2bar | 1 | 1 |
