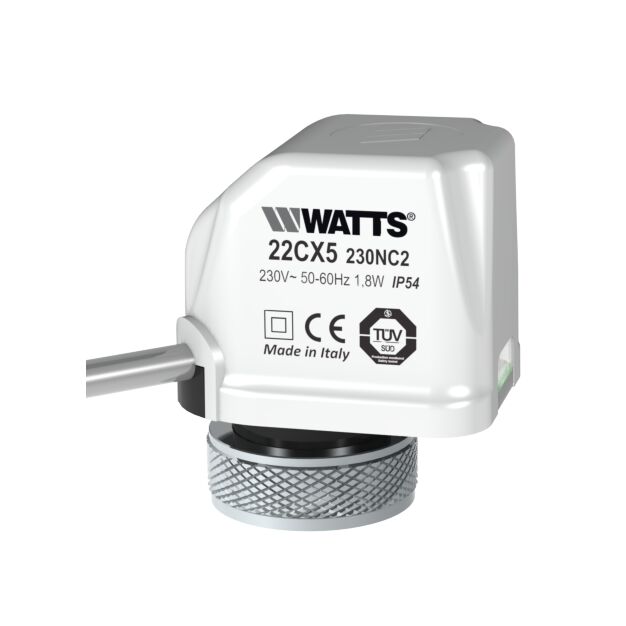

Electrothermal actuator 22CX5
×
![]()
Electrothermal actuator 22CX5
Electrothermal actuator 22CX5
Description
Compact electrothermal actuator with ON/OFF operation compatible with thermostat-adaptable radiator valves, valves for fan coils and manifolds. Self-extinguishing polymer cap. M30x1.5 nickel-plated threaded brass ring-nut. Normally closed (NC). Stroke: 5 mm. Disc thrust: 110N (NC version). Room temperature: 0÷50°C. 4-wire version (NC4) complete with auxiliary microswitch. Auxiliary contact rating: 700mA inductive-3A resistive. Compliant with: LVD 2014/35/EU, EMC 2014/30/EU. TÜV approved.
Technical Features
Part no.
| Part Number | Voltage | Protection | Q.ty/Box | Box/Carton |
| 22CX5230NC2 | 230V | IP54 | 1 | 50 |
| 22CX524NC2 | 24V | IP54 | 1 | 50 |
| 22CX5230NC4 | 230V | IP54 | 1 | 50 |
| 22CX524NC4 | 24V | IP54 | 1 | 50 |
| 22CX5230NC2-2 | 230V - cable 2m | IP54 | 1 | 50 |
| 22CX524NC2-2 | 24V - cable 2m | IP54 | 1 | 50 |
| 22CX5230NC4-2 | 230V - cable 2m | IP54 | 1 | 50 |
| 22CX524NC4-2 | 24V - cable 2m | IP54 | 1 | 50 |
