Description

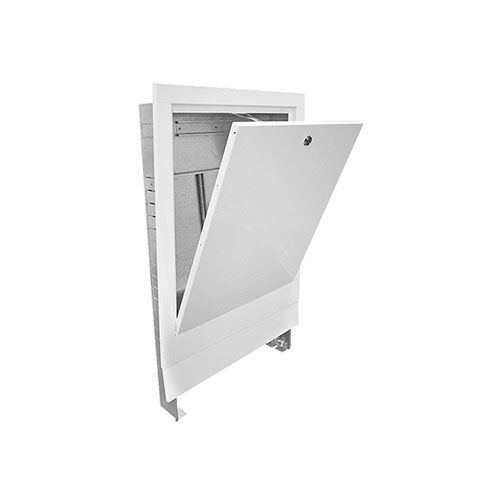

Sturdy housing made of hot-dip galvanised sheet steel, door and frame powder-coated white. RAL 9016, door and frame removable and separately foiled as building protection, heights and depth adjustment, pre-punched feed-throughs on the sides and top, wall anchors and C-rails for fixing the distributors, pre-mounted DIN rail for fixing the control manifold, screed zero point marking, coin-operated twist lock, tool-free installation, height and depth regulation.

  • Height: 754 mm
  • Feet extendable 120 mm
  • Depth: 110-165 mm

Technical Features

Part no.

TypePart no.VPE
VSU-1 Premium 110Cabinet width 450 mm,
Frame width 517 mm		100853871
VSU-2 Premium 110Cabinet width 550 mm,
Frame width 617 mm		100853881
VSU-3 Premium 110Cabinet width 700 mm,
Frame width 767 mm		100853891
VSU-4 Premium 110Cabinet width 850 mm,
Frame width 917 mm		100853901
VSU-5 Premium 110Cabinet width 1000 mm,
Frame width 1067 mm		100853911
VSU-6 Premium 110Cabinet width 1200 mm,
Frame width 1267 mm		100853921
