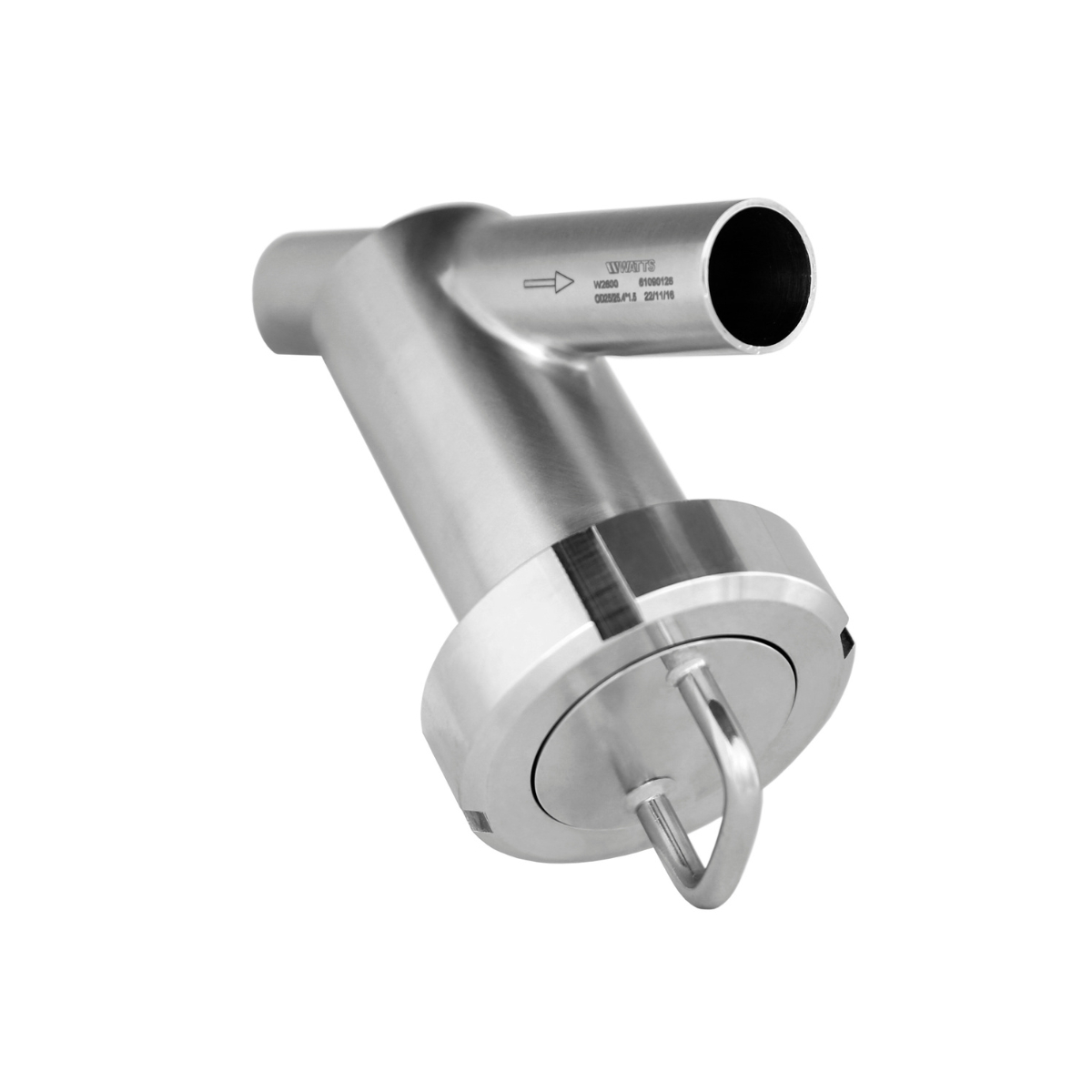

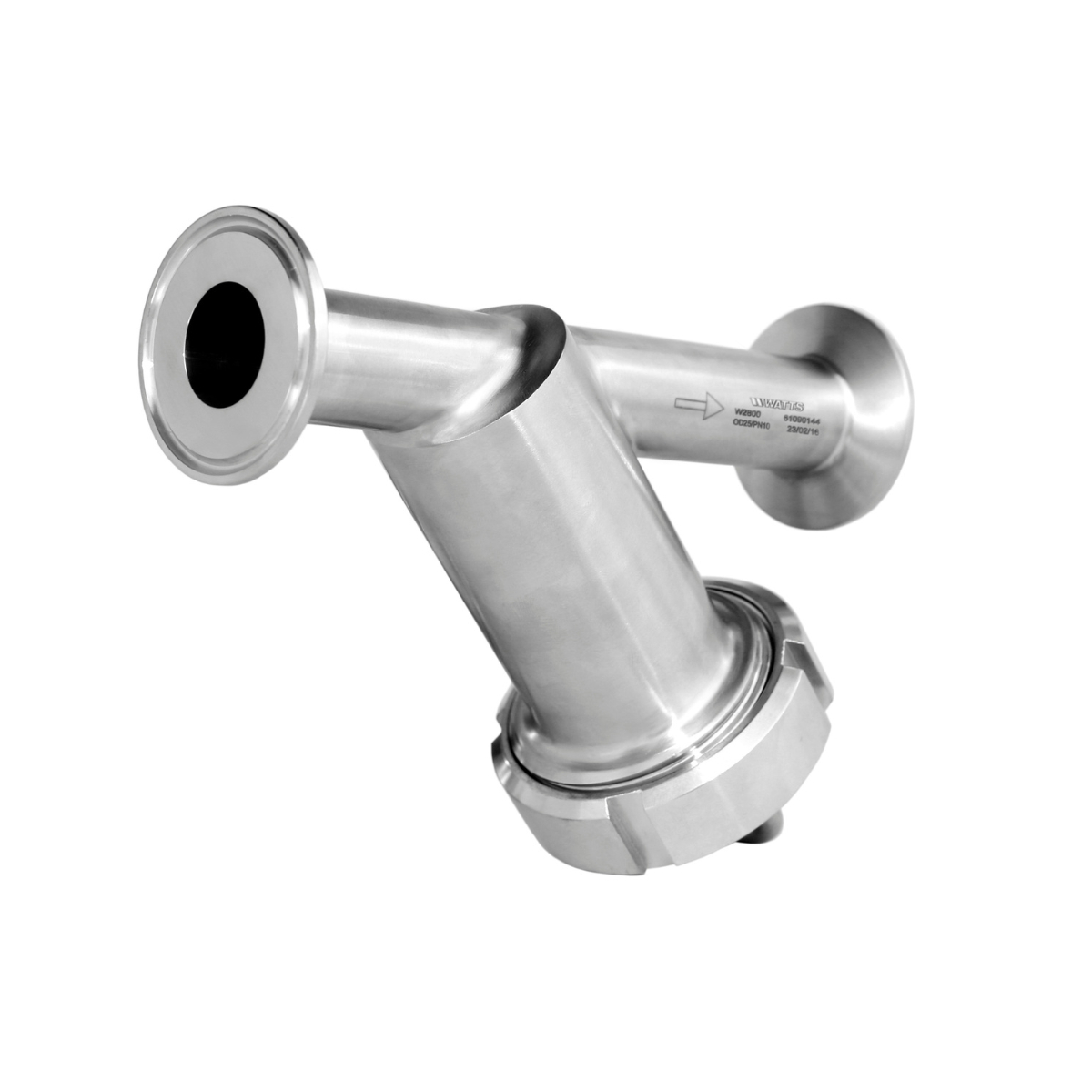

W2000 Stainless Steel Strainer
×
![]()
W2000 Stainless Steel Strainer
W2000 Stainless Steel Strainer
Description
The W2000 Series stainless steel strainer is designed to remove impurities from the media, protecting valves and equipment to ensure optimal performance with minimal pressure loss. Its compact design makes it ideal for space-constrained installations, with DIN/ISO welded or clamp connections available.
Size: DN15-DN100
Media: water, ≤50% ethylene glycol*
Features
- 48-micron filter screen
- Minimal pressure loss
- Efficient discharge action
- Supplied de-oiled and de-greased
- Designed for easy maintenance
- Nominal pressure: PN10
- Temperature range: -10 °C- 100 °C
- Connection standard – Welding: DIN 11850 / ISO 2037
- Connection standard – Clamp: DIN 32676 / ISO 2852
- Test standard: GB/T 13927
- Suitable media: Water, ≤ 50% ethylene glycol
- Filter screen: Hole diameter 48 μm, 300 meshes
*Note: For usage with other media including oil or gas, please contact us.
Technical Features
Part no.
| Typ | DN | Description | Part no. |
| W2600 | DN15 | SS weldable Y strainer DIN | 61090117 |
| W2600 | DN20 | SS weldable Y strainer DIN | 61090118 |
| W2600 | DN25 | SS weldable Y strainer DIN | 61090119 |
| W2600 | DN32 | SS weldable Y strainer DIN | 61090120 |
| W2600 | DN40 | SS weldable Y strainer DIN | 61090121 |
| W2600 | DN50 | SS weldable Y strainer DIN | 61090122 |
| W2600 | DN65 | SS weldable Y strainer DIN | 61090123 |
| W2600 | DN80 | SS weldable Y strainer DIN | 61090124 |
| W2600 | DN100 | SS weldable Y strainer DIN | 61090125 |
| W2600 | 1" | SS weldable Y strainer ISO | 61090126 |
| W2600 | 1 1/4" | SS weldable Y strainer ISO | 61090127 |
| W2600 | 1 1/2" | SS weldable Y strainer ISO | 61090128 |
| W2600 | 2" | SS weldable Y strainer ISO | 61090129 |
| W2600 | 2 1/2" | SS weldable Y strainer ISO | 61090130 |
| W2600 | 3" | SS weldable Y strainer ISO | 61090131 |
| W2600 | 3 1/2" | SS weldable Y strainer ISO | 61090132 |
| W2600 | 4" | SS weldable Y strainer ISO | 61090133 |
| W2600 | 4 1/2" | SS weldable Y strainer ISO | 61090134 |
| W2800 | DN15 | SS grooved Y strainer DIN | 61092033 |
| W2800 | DN20 | SS grooved Y strainer DIN | 61092034 |
| W2800 | DN15 | SS grooved Y strainer DIN | 61090135 |
| W2800 | DN20 | SS grooved Y strainer DIN | 61090136 |
| W2800 | DN25 | SS grooved Y strainer DIN | 61090137 |
| W2800 | DN32 | SS grooved Y strainer DIN | 61090138 |
| W2800 | DN40 | SS grooved Y strainer DIN | 61090139 |
| W2800 | DN50 | SS grooved Y strainer DIN | 61090140 |
| W2800 | DN65 | SS grooved Y strainer DIN | 61090141 |
| W2800 | DN80 | SS grooved Y strainer DIN | 61090142 |
| W2800 | DN100 | SS grooved Y strainer DIN | 61090143 |
| W2800 | 1" | SS grooved Y strainer ISO | 61090144 |
| W2800 | 11/4" | SS grooved Y strainer ISO | 61090145 |
| W2800 | 11/2" | SS grooved Y strainer ISO | 61090146 |
| W2800 | 2" | SS grooved Y strainer ISO | 61090147 |
| W2800 | 2 1/2" | SS grooved Y strainer ISO | 61090148 |
| W2800 | 3" | SS grooved Y strainer ISO | 61090149 |
| W2800 | 3 1/2" | SS grooved Y strainer ISO | 61090151 |
| W2800 | 4" | SS grooved Y strainer ISO | 61090152 |
| W2800 | 4 1/2" | SS grooved Y strainer ISO | 61090153 |
| W2800 | 2 1/2" | SS grooved Y strainer ISO | 61090305 |
