W5000 Stainless Steel Check Valve
×
![]()
W5000 Stainless Steel Check Valve
W5000 Stainless Steel Check Valve
Description
The W5000 Series stainless steel check valve is designed to prevent backflow and protect system integrity. It is available with DIN/ISO welded or clamp connections. Supplied de-oiled and de-greased, this valve is ideal for liquid cooling systems where glycol-based coolants or other corrosive media are present.
Size: DN15-DN100
Media: water, ≤50% ethylene glycol*
Features
- Minimal pressure loss
- Supplied de-oiled and de-greased
- Designed for convenient maintenance
- Nominal pressure: PN10
- Temperature range: -10 °C-100 °C
- Connection standard – Welding: DIN 11850 / ISO 2037
- Connection standard – Clamp: DIN 32676 / ISO 2852
- Test standard: GB/T 13927
- Suitable media: water, ≤ 50% ethylene glycol
*Note: For usage with other media including oil or gas, please contact us.
Technical Features
Part no.
| Typ | DN | Description | Part no. |

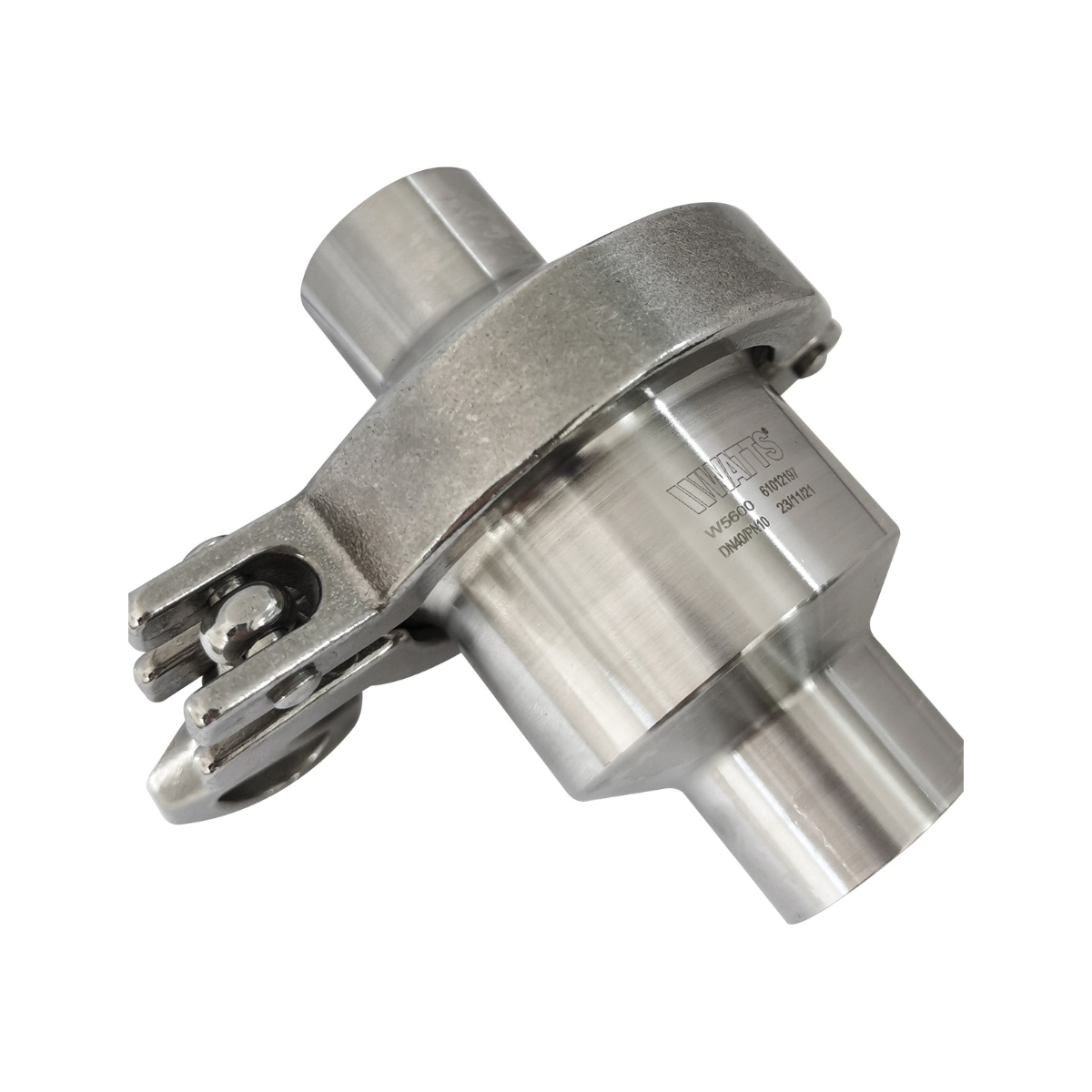

| W5600 | DN15 | SS weldable Check valve DIN | 61060081 |
| W5600 | DN20 | SS weldable Check valve DIN | 61060082 |
| W5600 | DN25 | SS weldable Check valve DIN | 61060083 |
| W5600 | DN32 | SS weldable Check valve DIN | 61060084 |
| W5600 | DN40 | SS weldable Check valve DIN | 61060085 |
| W5600 | DN50 | SS weldable Check valve DIN | 61060086 |
| W5600 | DN65 | SS weldable Check valve DIN | 61060087 |
| W5600 | DN80 | SS weldable Check valve DIN | 61060088 |
| W5600 | DN100 | SS weldable Check valve DIN | 61060089 |
| W5600 | 1" | SS weldable Check valve ISO | 61060090 |
| W5600 | 1 1/4" | SS weldable Check valve ISO | 61060091 |
| W5600 | 1 1/2" | SS weldable Check valve ISO | 61060092 |
| W5600 | 2" | SS weldable Check valve ISO | 61060093 |
| W5600 | 2 1/2" | SS weldable Check valve ISO | 61060094 |
| W5600 | 3" | SS weldable Check valve ISO | 61060095 |
| W5600 | 3 1/2" | SS weldable Check valve ISO | 61060096 |
| W5600 | 4" | SS weldable Check valve ISO | 61060097 |

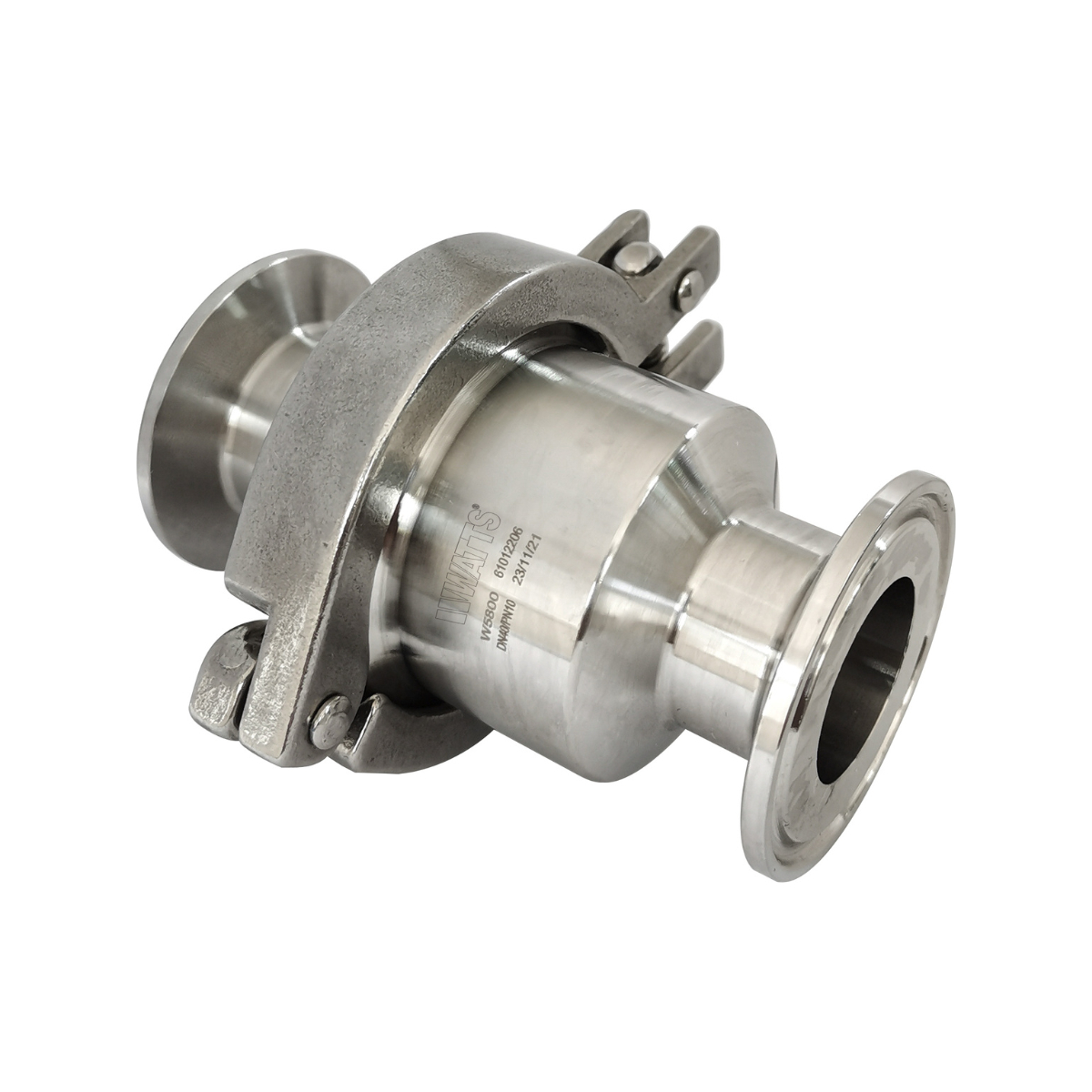

| W5800 | DN15 | SS grooved check valve DIN | 61060099 |
| W5800 | DN20 | SS grooved check valve DIN | 61060100 |
| W5800 | DN25 | SS grooved check valve DIN | 61060101 |
| W5800 | DN32 | SS grooved check valve DIN | 61060102 |
| W5800 | DN40 | SS grooved check valve DIN | 61060103 |
| W5800 | DN50 | SS grooved check valve DIN | 61060104 |
| W5800 | DN65 | SS grooved check valve DIN | 61060105 |
| W5800 | DN80 | SS grooved check valve DIN | 61060106 |
| W5800 | DN100 | SS grooved check valve DIN | 61060107 |
| W5800 | 1" | SS grooved check valve ISO | 61060108 |
| W5800 | 1 1/4" | SS grooved check valve ISO | 61060109 |
| W5800 | 1 1/2" | SS grooved check valve ISO | 61060110 |
| W5800 | 2" | SS grooved check valve ISO | 61060111 |
| W5800 | 2 1/2" | SS grooved check valve ISO | 61060112 |
| W5800 | 3" | SS grooved check valve ISO | 61060113 |
| W5800 | 3 1/2" | SS grooved check valve ISO | 61060114 |
| W5800 | 4" | SS grooved check valve ISO | 61060115 |
