Description

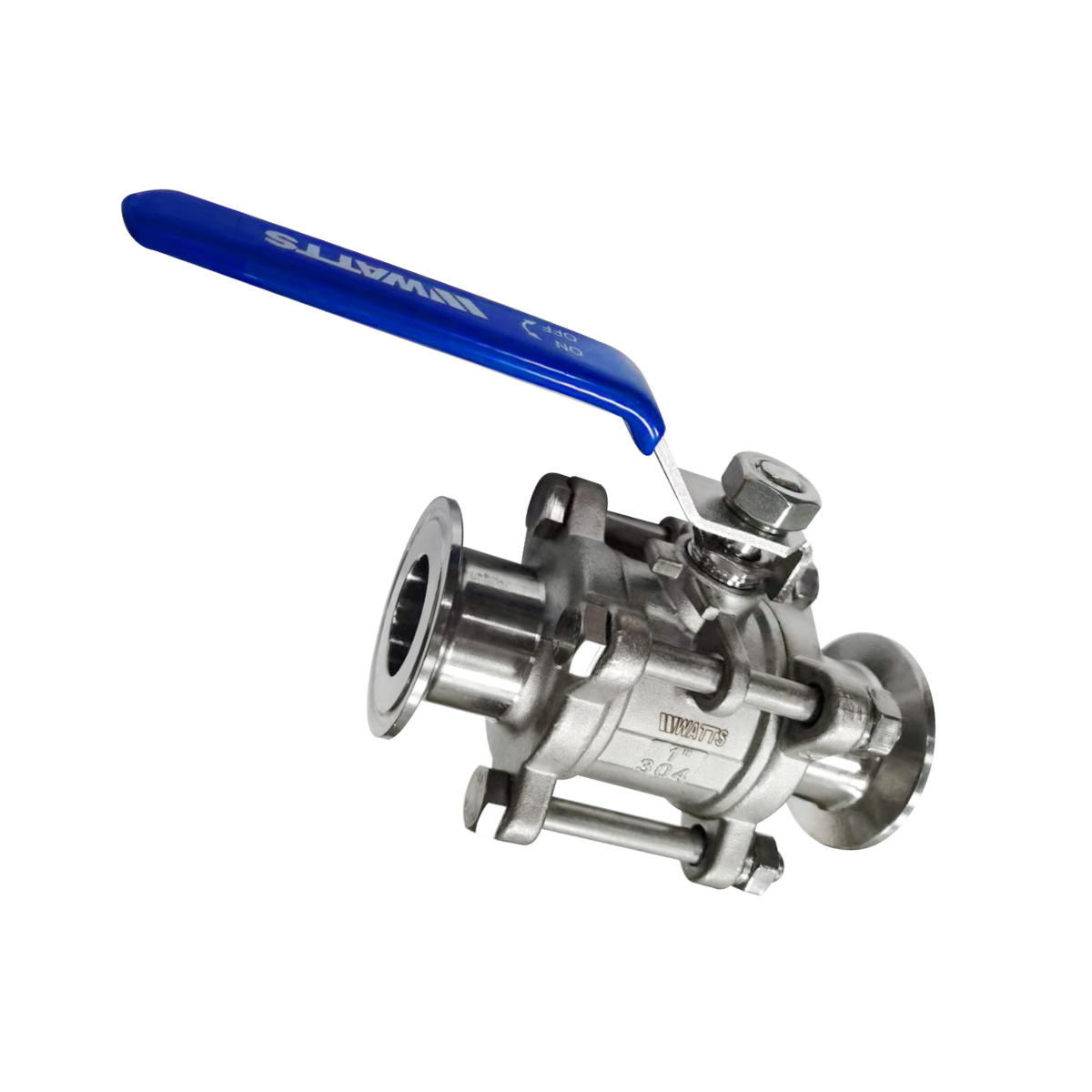

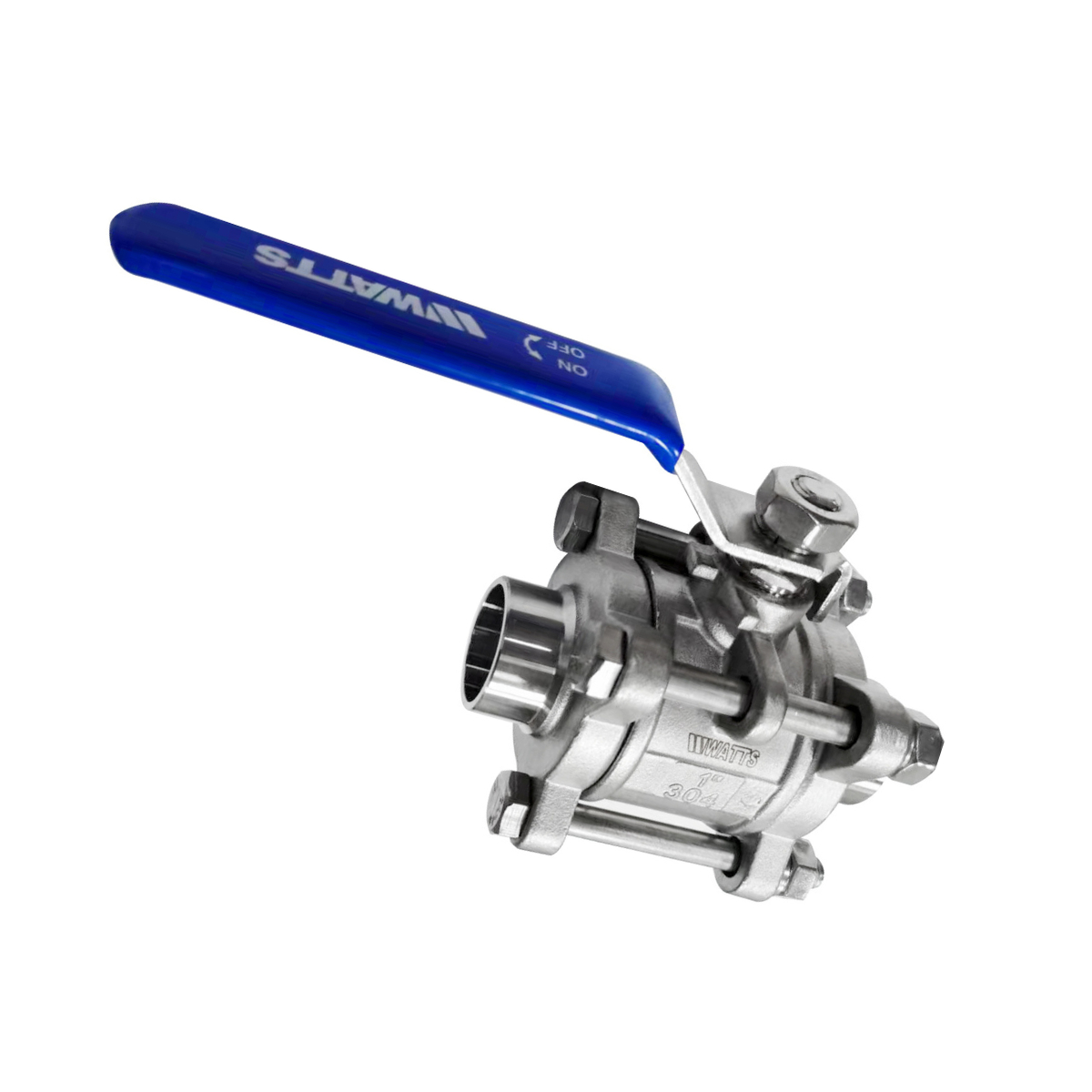

The W6000 Series stainless steel three-piece ball valve is engineered for isolation service in pipelines, with options for DIN/ISO welded or clamp connections. Supplied de-oiled and de-greased, this valve is well-suited for liquid cooling processes involving glycol-based coolants or other corrosive media, as well as a wide range of demanding industrial applications.
Size: DN15-DN100
Media: water, ≤50% ethylene glycol*
Features
- DIN / ISO welded and clamp connection options
- Low flow resistance and minimal operating torque
- Supplied de-oiled and de-greased
- Three-piece body design enables easy maintenance and servicing
- Nominal pressure: PN16 (DN15-50), PN10 (DN65-100)
- Temperature range: -10 °C - 100 °C
- Connection standard – Welding: DIN 11850 / ISO 2037
- Connection standard – Clamp: DIN 32676 / ISO 2852
- Test standard: GB/T 13927
*Note: For usage with other media including oil or gas, please contact us.
Technical Features
Part no.
| Typ | DN | Description | Part no. |
| W6800 | DN15 | SS grooved ball valve/3piece/DIN | 61010354 |
| W6800 | DN20 | SS grooved ball valve/3piece/DIN | 61010355 |
| W6800 | DN25 | SS grooved ball valve/3piece/DIN | 61010356 |
| W6800 | DN32 | SS grooved ball valve/3piece/DIN | 61010357 |
| W6800 | DN40 | SS grooved ball valve/3piece/DIN | 61010358 |
| W6800 | DN50 | SS grooved ball valve/3piece/DIN | 61010359 |
| W6800 | DN65 | SS grooved ball valve/3piece/DIN | 61012204 |
| W6800 | DN80 | SS grooved ball valve/3piece/DIN | 61012205 |
| W6800 | DN100 | SS grooved ball valve/3piece/DIN | 61012206 |
| W6600 | DN15 | SS weldable ball valve/3piece/DIN | 61010348 |
| W6600 | DN20 | SS weldable ball valve/3piece/DIN | 61010349 |
| W6600 | DN25 | SS weldable ball valve/3piece/DIN | 61010350 |
| W6600 | DN32 | SS weldable ball valve/3piece/DIN | 61010351 |
| W6600 | DN40 | SS weldable ball valve/3piece/DIN | 61010352 |
| W6600 | DN50 | SS weldable ball valve/3piece/DIN | 61010353 |
| W6600 | DN65 | SS weldable ball valve/3piece/DIN | 61012195 |
| W6600 | DN80 | SS weldable ball valve/3piece/DIN | 61012196 |
| W6600 | DN100 | SS weldable ball valve/3piece/DIN | 61012197 |
| W6600 | 3/4" | SS weldable ball valve/3piece/ISO | 61010402 |
| W6600 | 1" | SS weldable ball valve/3piece/ISO | 61010403 |
| W6600 | 1 1/4" | SS weldable ball valve/3piece/ISO | 61010404 |
| W6600 | 1 1/2" | SS weldable ball valve/3piece/ISO | 61010405 |
| W6600 | 2" | SS weldable ball valve/3piece/ISO | 61010406 |
| W6600 | 2 1/2" | SS weldable ball valve/3piece/ISO | 61010407 |
| W6600 | 3" | SS weldable ball valve/3piece/ISO | 61012212 |
| W6600 | 3 1/2" | SS weldable ball valve/3piece/ISO | 61012213 |
| W6600 | 4" | SS weldable ball valve/3piece/ISO | 61012214 |
