Description

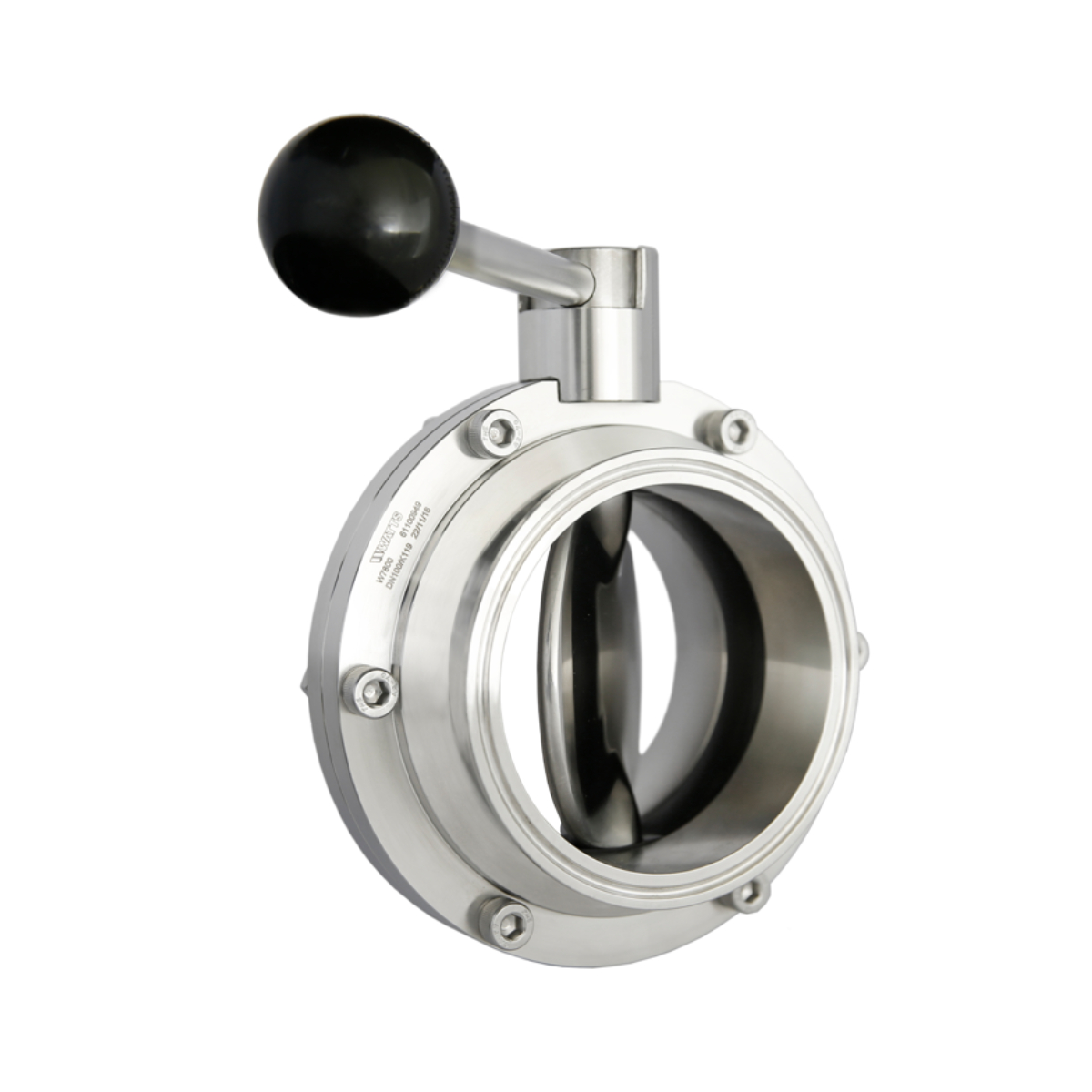

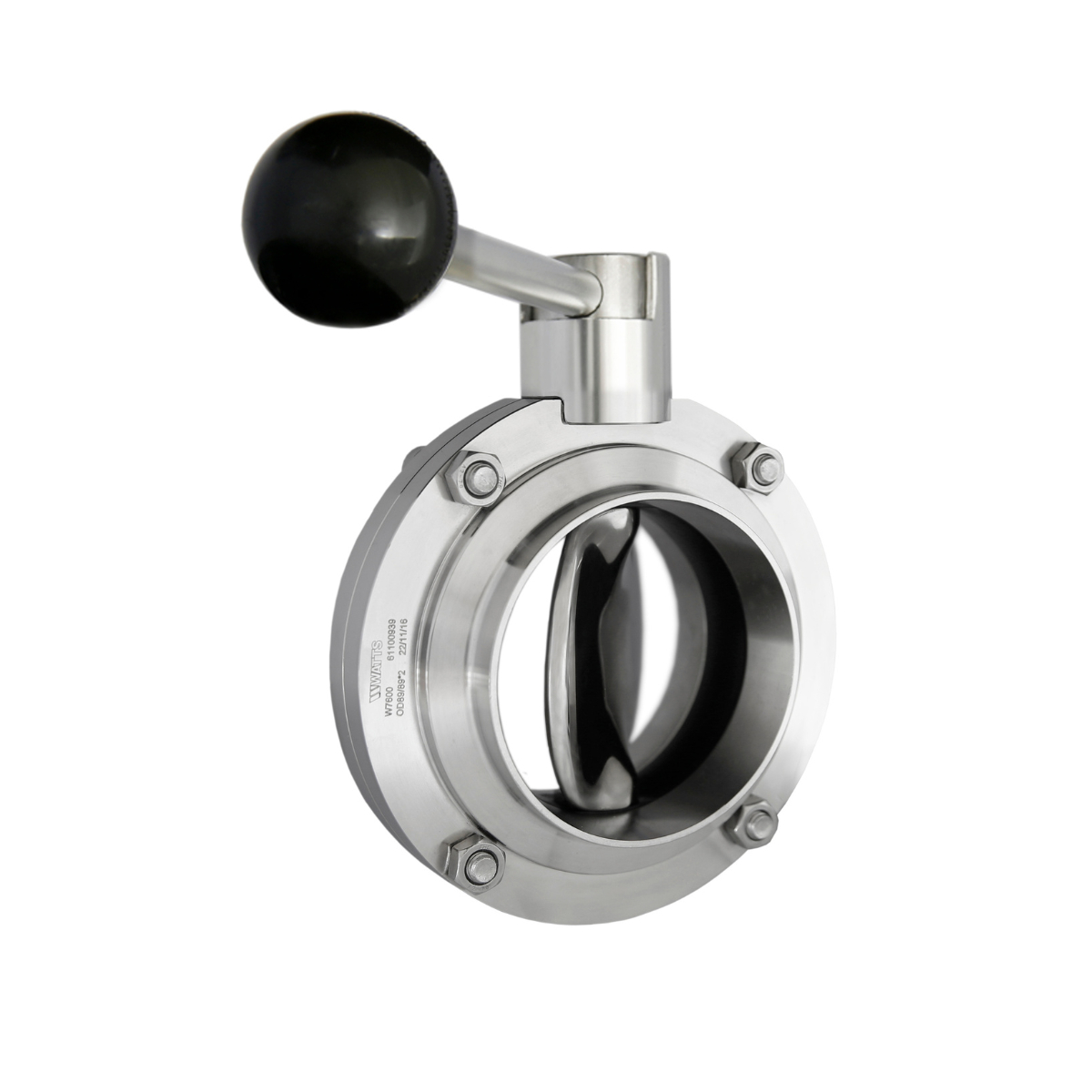

The W7000 Series stainless steel butterfly valve is engineered for isolation service in pipelines, with options for DIN/ISO welded or clamp connections. De-oiled and de-greased, this valve is ideal for liquid cooling processes using glycol-based coolants or other corrosive media, as well as other demanding industrial applications.
Size: DN15-DN200
Media: water, ≤50% ethylene glycol*
Features
- DIN / ISO welded and clamp connection options
- Low flow resistance and minimal operating torque
- Supplied de-oiled and de-greased
- 3-piece body design enables easy maintenance and servicing
- Nominal pressure: PN10
- Temperature range: -10 °C-100 °C
- Connection standard – Welding: DIN 11850 / ISO 2037
- Connection standard – Clamp: DIN 32676 / ISO 2852
- Test standard: GB/T 13927
- Suitable media: Water, ≤50% ethylene glycol
*Note: For usage with other media including oil or gas, please contact us
Technical Features
Part no.
| Typ | DN | Description | Part no. |
| W7600 | DN15 | SS weldable butterfly valve DIN | 61100921 |
| W7600 | DN20 | SS weldable butterfly valve DIN | 61100922 |
| W7600 | DN25 | SS weldable butterfly valve DIN | 61100923 |
| W7600 | DN32 | SS weldable butterfly valve DIN | 61100924 |
| W7600 | DN40 | SS weldable butterfly valve DIN | 61100925 |
| W7600 | DN50 | SS weldable butterfly valve DIN | 61100926 |
| W7600 | DN65 | SS weldable butterfly valve DIN | 61100927 |
| W7600 | DN80 | SS weldable butterfly valve DIN | 61100928 |
| W7600 | DN100 | SS weldable butterfly valve DIN | 61100929 |
| W7600 | DN125 | SS weldable butterfly valve DIN | 61100930 |
| W7600 | DN150 | SS weldable butterfly valve DIN | 61100931 |
| W7600 | DN200 | SS weldable butterfly valve DIN | 61100932 |
| W7600 | 1" | SS weldable butterfly valve ISO | 61100933 |
| W7600 | 1 1/4" | SS weldable butterfly valve ISO | 61100934 |
| W7600 | 1 1/2" | SS weldable butterfly valve ISO | 61100935 |
| W7600 | 2" | SS weldable butterfly valve ISO | 61100936 |
| W7600 | 2 1/2" | SS weldable butterfly valve ISO | 61100937 |
| W7600 | 3" | SS weldable butterfly valve ISO | 61100938 |
| W7600 | 3 1/2" | SS weldable butterfly valve ISO | 61100939 |
| W7600 | 4" | SS weldable butterfly valve ISO | 61100940 |
| W7600 | 4 1/2" | SS weldable butterfly valve ISO | 61100964 |
| W7800 | DN15 | SS grooved butterfly valve DIN | 61100941 |
| W7800 | DN20 | SS grooved butterfly valve DIN | 61100942 |
| W7800 | DN25 | SS grooved butterfly valve DIN | 61100943 |
| W7800 | DN32 | SS grooved butterfly valve DIN | 61100944 |
| W7800 | DN40 | SS grooved butterfly valve DIN | 61100945 |
| W7800 | DN50 | SS grooved butterfly valve DIN | 61100946 |
| W7800 | DN65 | SS grooved butterfly valve DIN | 61100947 |
| W7800 | DN80 | SS grooved butterfly valve DIN | 61100948 |
| W7800 | DN100 | SS grooved butterfly valve DIN | 61100949 |
| W7800 | DN125 | SS grooved butterfly valve DIN | 61100950 |
| W7800 | DN150 | SS grooved butterfly valve DIN | 61100951 |
| W7800 | DN200 | SS grooved butterfly valve DIN | 61100952 |
| W7800 | 1" | SS grooved butterfly valve ISO | 61100953 |
| W7800 | 1 1/4" | SS grooved butterfly valve ISO | 61100954 |
| W7800 | 1 1/2" | SS grooved butterfly valve ISO | 61100955 |
| W7800 | 2" | SS grooved butterfly valve ISO | 61100956 |
| W7800 | 2 1/2" | SS grooved butterfly valve ISO | 61100957 |
| W7800 | 3" | SS grooved butterfly valve ISO | 61100958 |
| W7800 | 3 1/2" | SS grooved butterfly valve ISO | 61100959 |
| W7800 | 4" | SS grooved butterfly valve ISO | 61100960 |
| W7800 | 4 1/2" | SS grooved butterfly valve ISO | 61101014 |
| W7600 | 4 1/4" | SS grooved butterfly valve ISO | 61102551 |
| W7300 | DN15 | SS weldable butterfly valve/3 piece DIN | 61102539 |
| W7300 | DN20 | SS weldable butterfly valve/3 piece DIN | 61102540 |
| W7300 | DN25 | SS weldable butterfly valve/3 piece DIN | 61102541 |
| W7300 | DN32 | SS weldable butterfly valve/3 piece DIN | 61102542 |
| W7300 | DN40 | SS weldable butterfly valve/3 piece DIN | 61102543 |
| W7300 | DN50 | SS weldable butterfly valve/3 piece DIN | 61102544 |
| W7300 | DN65 | SS weldable butterfly valve/3 piece DIN | 61102545 |
| W7300 | DN80 | SS weldable butterfly valve/3 piece DIN | 61102546 |
| W7300 | DN100 | SS weldable butterfly valve/3 piece DIN | 61102547 |
| W7300 | DN125 | SS weldable butterfly valve/3 piece DIN | 61102548 |
| W7300 | DN150 | SS weldable butterfly valve/3 piece DIN | 61102549 |
| W7300 | DN200 | SS weldable butterfly valve/3 piece DIN | 61102550 |
| W7300 | 4" | SS weldable butterfly valve/3piece ISO | 61101765 |
| W7300 | 5" | SS weldable butterfly valve/3piece ISO | 61103067 |
| W7300 | 5 1/4" | SS weldable butterfly valve/3piece ISO | 61101832 |
| W7300 | 6 1/4" | SS weldable butterfly valve/3piece ISO | 61101833 |
