Description

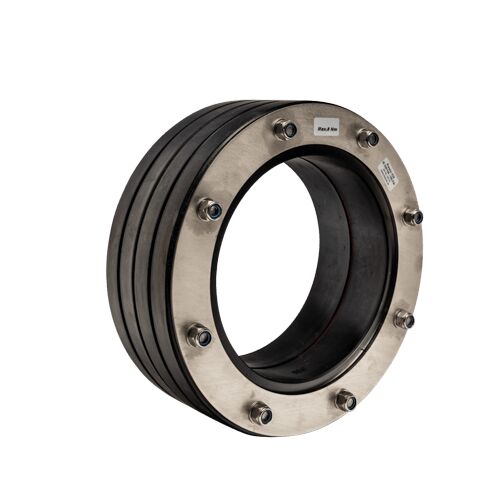

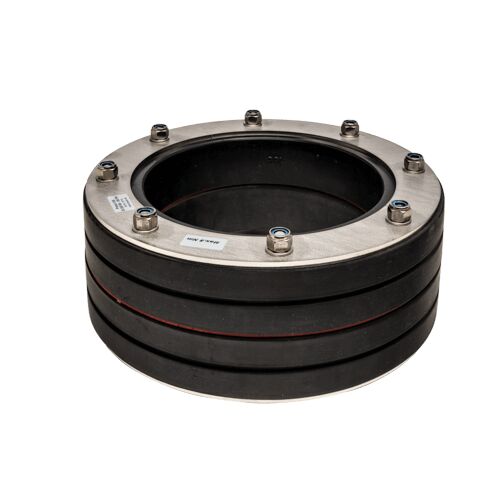

Wall penetration MICRO PRESS seals for pre-insulated pipe system with casing in PE. Versions for all Microflex pipe sizes and diameters 2x40 mm. Extra soft rubber for low tightening torque with low danger of pipe deformations. MFPA approval up to 5 bar. Easy installation letting the pipe moving.

Technical Features

Part no.

Part no.Core hole/
wallsleeve
[mm]		Outer casing
d_out
[mm]
M1070112575
M1070615090
M10711200125
M10718250160
M10722250200
