MG3A-INOX 63
×
![]()
MG3A-INOX 63
MG3A-INOX 63
Description

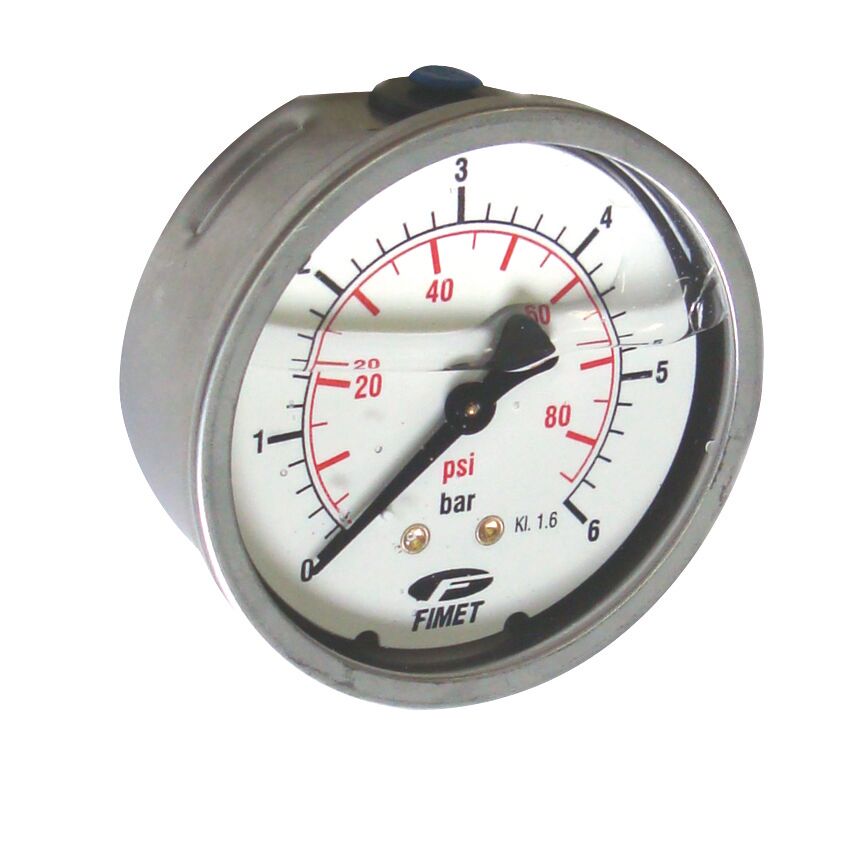

DN 63 back-connection glycerin-filled pressure gauge with stainless steel body, for industrial applications. Measuring range 0÷1 to 0÷600 bar and dual scale bar/psi. Accuracy class 1.6. Other scales and connections available to order. EN 837-1 compliant.
Technical Features
Part no.
| Part Number | Range | Connection | Q.ty/Box | Box/Carton |
| PF340114LF | 0÷1 bar/psi | G1/4B | 50 | 50 |
| PF340214LF | 0÷1.6 bar/psi | G1/4B | 50 | 50 |
| PF350314LF | 0÷2.5 bar/psi | G1/4B | 5 | 50 |
| PF350414LF | 0÷4 bar/psi | G1/4B | 5 | 50 |
| PF350614LF | 0÷6 bar/psi | G1/4B | 5 | 50 |
| PF351014LF | 0÷10 bar/psi | G1/4B | 5 | 50 |
| PF351214LF | 0÷12 bar/psi | G1/4B | 5 | 50 |
| PF351614LF | 0÷16 bar/psi | G1/4B | 5 | 50 |
| PF352014LF | 0÷20 bar/psi | G1/4B | 5 | 50 |
| PF352514LF | 0÷25 bar/psi | G1/4B | 5 | 50 |
| PF354014LF | 0÷40 bar/psi | G1/4B | 5 | 50 |
