Pressure gauge F+R200 (MRP)

pressure gauge f r200 mrp

Pressure gauge F+R200 (MRP)

Description

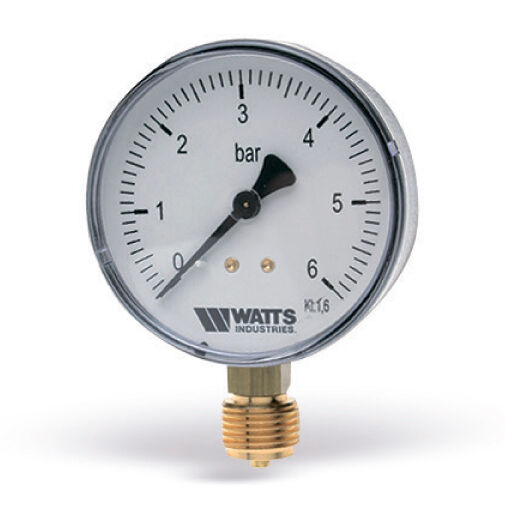

Pressure gauge for closed heating installations, plastic body, bottom central entry

Technical Features

Part no.

Type	Part no. WID	DN	Pressure	Connection	Packaging
F+R200	10007378	50 mm	0-6 bar	1/4"	100
F+R200	10007380	50 mm	0-10 bar	1/4"	100
F+R200	10007384	50 mm	0-16 bar	1/4"	100
F+R200	10007723	63 mm	0-6 bar	1/4"	100
F+R200	10007724	63 mm	0-10 bar	1/4"	100
F+R200	10007725	63 mm	0-16 bar	1/4"	100
F+R200	10007726	63 mm	0-25 bar	1/4"	100
F+R200	10007790	80 mm	0-6 bar	1/2"	50
F+R200	10007793	80 mm	0-10 bar	1/2"	50
F+R200	10007794	80 mm	0-16 bar	1/2"	50
F+R200	10007795	80 mm	0-25 bar	1/2"	50

Downloads

Technical Data Sheet | Pressure gauge F+R200

Declaration of Conformity | Measuring Devices

Pressure gauge radial F+R200 (MRP) DN40/50/63 | 3D STP
