Description

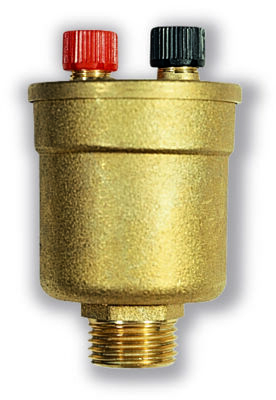

DUOVENT Automatic and manual air vent valve with unscrewable cover for inspection.
- Body and cover of brass CW617N.
- Corrosion-resistant polyethylene float.
- Nominal pressure : 12 bar.
- Max. operating pressure: 8 bar.
- Max. temperature : 115° C.
- Automatic venting capacity at 3 bar : 17.9 litres/min.
- Manual venting capacity at 3 bar: 139.5 litres/min.
- Also suitable for water containing additive (glycol up to 30%).
Technical Features
Part no.
| Type | Part no. WID | Size |
| MVD | 10004958 | 3/8" |
| MVD | 0250615 | 1/2" |
