Automatic and manual air vent valve DUO, DUO/R

Description

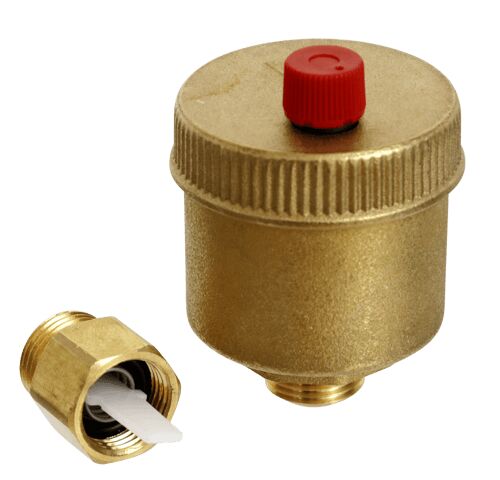

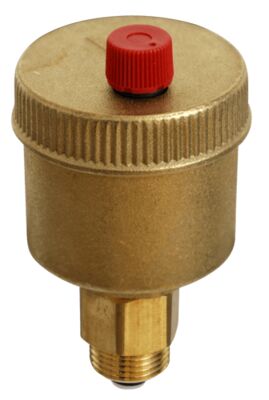

DUOVENT Automatic and manual air vent valve with removable cover for inspection. Body and cover in brass CW617N. Corrosion-resistant polyethylene float. Also suitable for water containing additive (glycol up to 30%). DUO/R: air vent valve like DUO but complete with automatic shut-off valve RIA.

PN 10.
Maximum working pressure: 8 bar.
Maximum working temperature: 115°C.
Automatic venting capacity at 3 bar: 20 litres/min.
Manual venting capacity at 3 bar: 100 litres/min.

Technical Features

Part no.

Type	Part no. WII	Size	Box
DUO10	0248210	3/8"	1
DUO-K10	0248210-K10	3/8	10

DUO10.R10	0248310	3/8"	1
DUO10.R10-K10	248310-K10	3/8"	10
DUO10.R15	0248311	1/2"	1
DUO10.R15-K10	0248311-K10	1/2"	10
