Automatic air vent valve SOLARVENT
×
![]()
Automatic air vent valve SOLARVENT
Automatic air vent valve SOLARVENT
Description

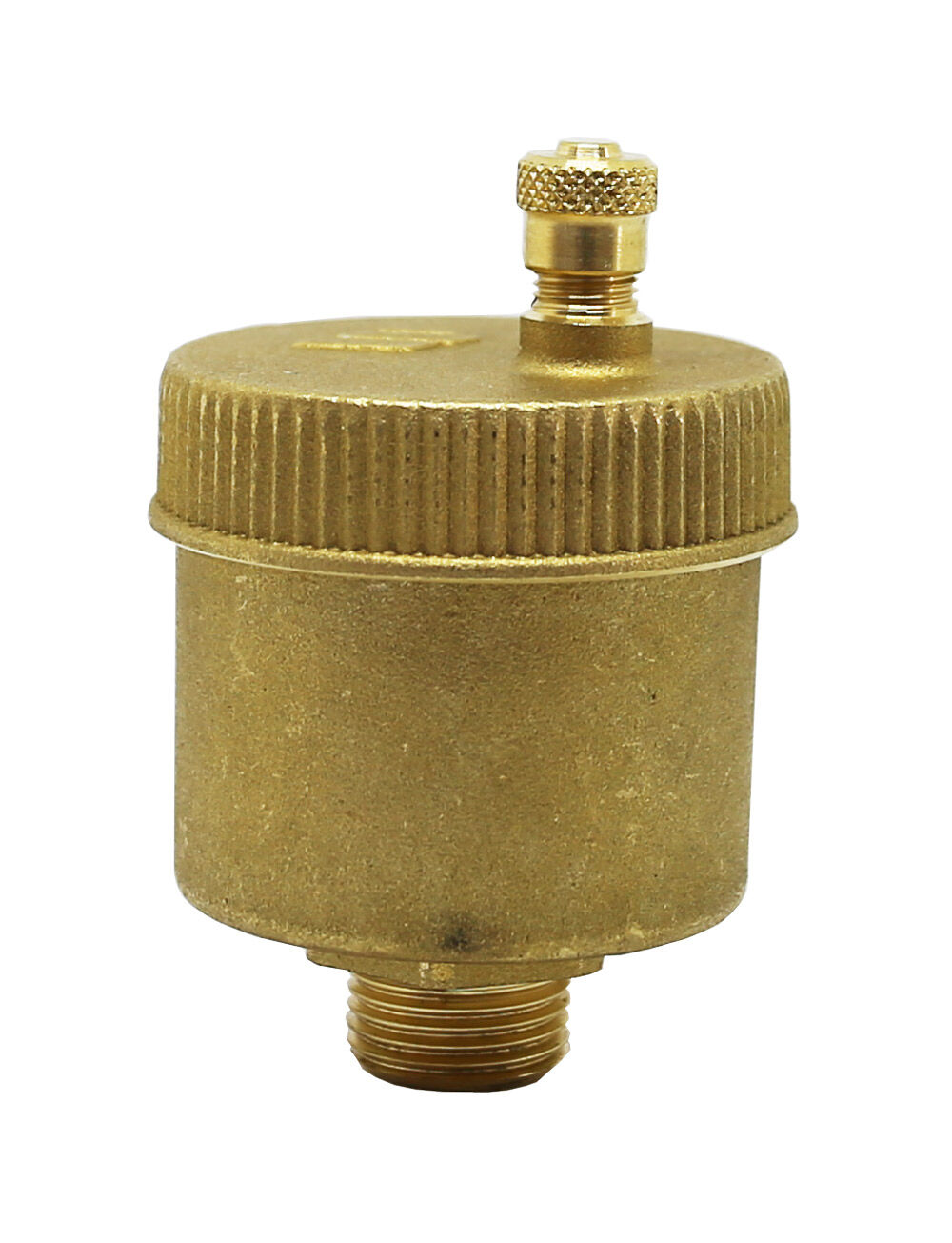

Automatic air vent valve for solar energy systems with unscrewable cover for inspection. Body and cover of brass CW617N. High resistance polyethylene float. Seal between reservoir and cover with reinforced polyamide gasket. Stainless steel (AISI 304) vacuum breaker.
- Maximum operating pressure: 12 bar.
- Maximum operating temperature: 160°C
- Connection DN 3/8”
Technical Features
Part no.
| Type | Part no. WII | DN | Weight (g) | Box |
| SOL10 | 0248410 | 3/8” | 191 | 1 |
| SOL10-K10 | 0248410-K10 | 3/8” | 2000 | 10 |
