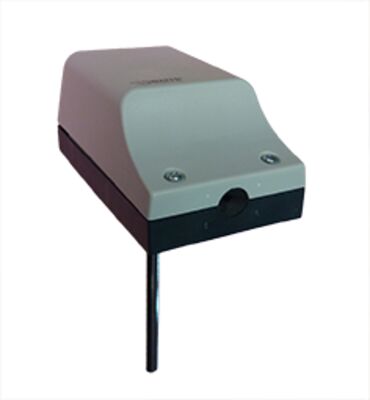

Immersion boiler thermostat TC
×
![]()
Immersion boiler thermostat TC
Immersion boiler thermostat TC
Description
Immersion thermostat. Automatic temperature control of boilers and hot water tanks, change-over switch 16 A - 250 V, immersion sleeve 1/2” nickel-plated. Temperature range 30 - 90 °C, differential gap 6 K, protection class IP 30.
Technical Features
Part no.
| Type | Part no. WEL | Description |
| TC100/IN | 0406101 | Internal setting, immersion sleeve 100 mm |
| TC100/AN | 0406111 | External setting, immersion sleeve 100 mm |
| TC150/AN | 0406151 | External setting, immersion sleeve 150 mm |
| TC200/IN | 0406201 | Internal setting, immersion sleeve 200 mm |
| TC200/AN | 0406211 | External setting, immersion sleeve 200 mm |
