Description

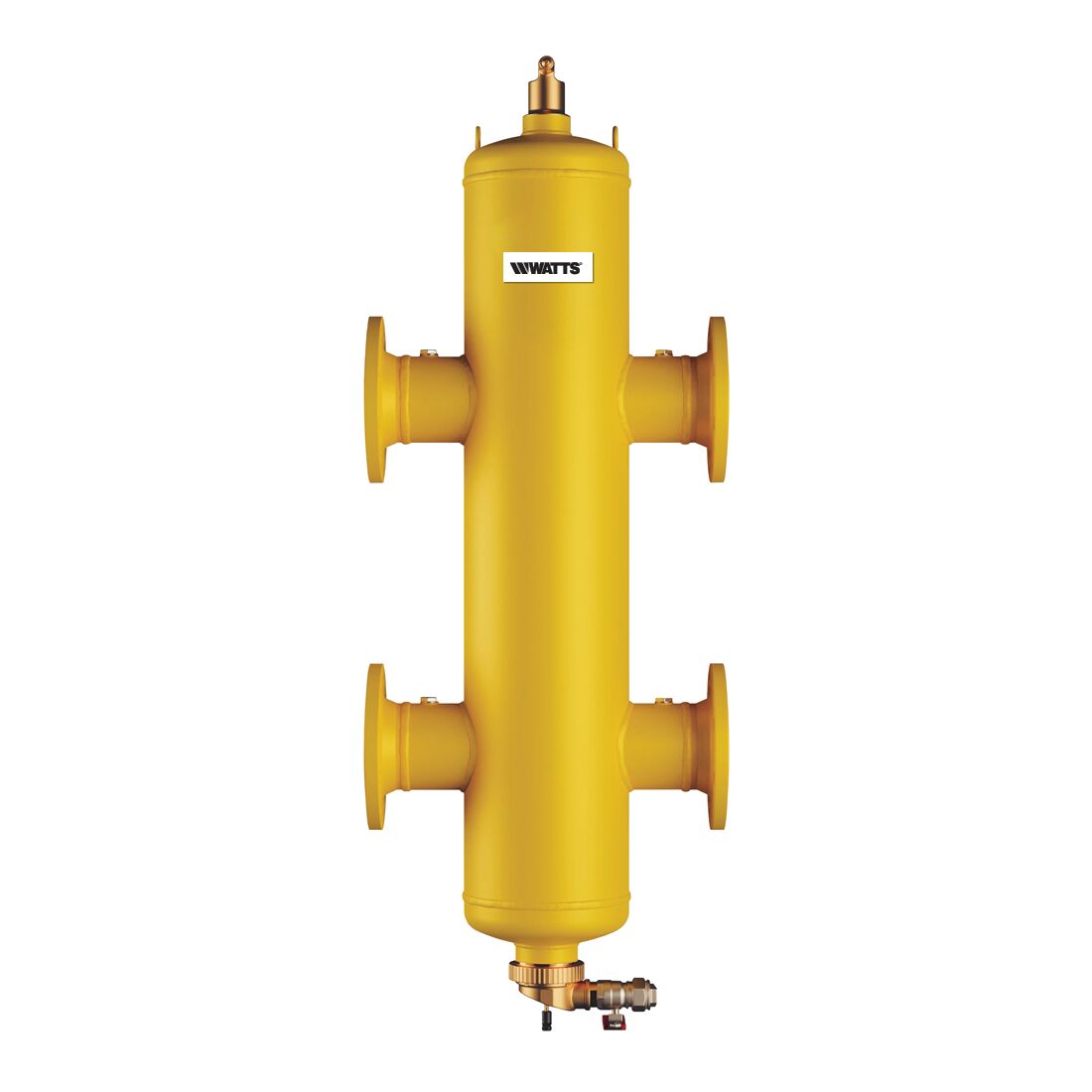

The SDDF Series multifunction hydraulic separator is a device that combines different and important functions to enable smooth operation of the system. As well as separating distinct parts of the system, it also functions as a magnetic dirt separator and deaerator, all within the same component.
Multifunction hydraulic separator featuring steel body and low pressure losses: hydraulic separator, magnetic dirt separator and deaerator. The multifunction hydraulic separator
makes the flow and head characteristics of the primary and secondary circuits independent of one another and purges the circuit of micro air bubbles, dirt, and both metallic and nonmetallic impurities. Flanged connections from DN50 up to DN300, compliant with EN1092-1 PN16. Maximum operating pressure PN10. Temperature 0 °C to 110 °C.
makes the flow and head characteristics of the primary and secondary circuits independent of one another and purges the circuit of micro air bubbles, dirt, and both metallic and nonmetallic impurities. Flanged connections from DN50 up to DN300, compliant with EN1092-1 PN16. Maximum operating pressure PN10. Temperature 0 °C to 110 °C.
Technical Features
Part no.
| Type | Part no. | DN | Maximum flow rate (m3/h) | Δp at max flow rate (kPa) | Volume (litres) | Weight (kg) |
| SDDF | SDDF050W | 50 | 12,50 | 2,9 | 12 | 26 |
| SDDF | SDDF065W | 65 | 20.00 | 3.0 | 13 | 31 |
| SDDF | SDDF080W | 80 | 27.00 | 3.1 | 29 | 46 |
| SDDF | SDDF100W | 100 | 47.00 | 3,7 | 38 | 57 |
| SDDF | SDDF125W | 125 | 72.00 | 4.2 | 105 | 114 |
| SDDF | SDDF150W | 150 | 108.00 | 4,9 | 123 | 125 |
| SDDF | SDDF200W | 200 | 180.00 | 5.8 | 252 | 245 |
| SDDF | SDDF250W | 250 | 288.00 | 7.0 | 501 | 372 |
| SDDF | SDDF300W | 300 | 405.00 | 7.8 | 859 | 578 |
