Diaphragm type expansion vessel ERE CE
Diaphragm type expansion vessel ERE CE
Description

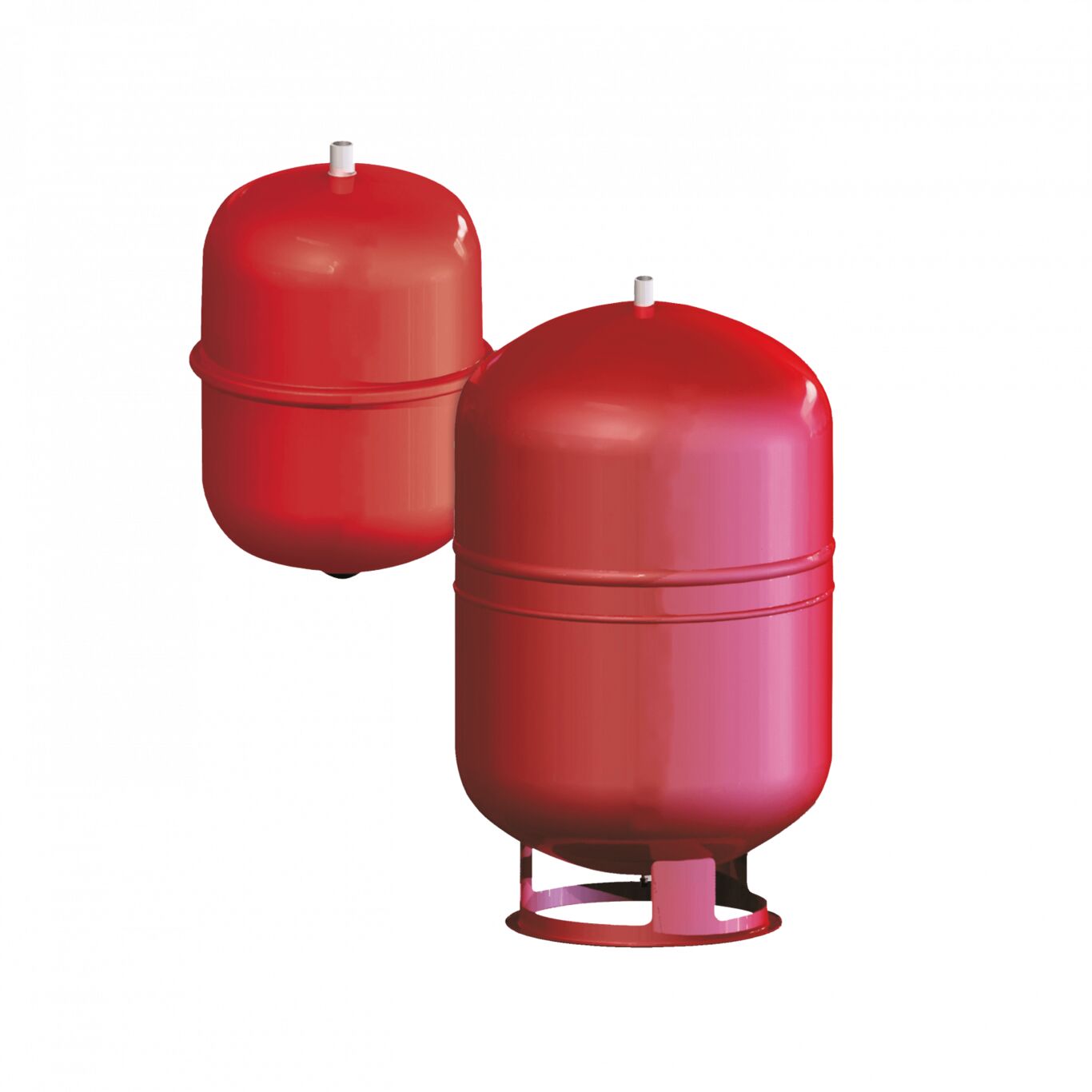

Expansion vessels with fixed diaphragm for heating and chilling systems. Male threaded connection at top of vessel (excluding 500-litre model). The 80÷300-litre models are equipped with a circular base. The 500-litre model is equipped with support feet and bottom connection. Compliant with PED Directive 2014/68/EU
Operating temperature range: -10÷99°C.
Technical Features
Part no.
Code WII | Capacity | Pmax | Preload | Connection | Q-ty/Box | Box/Carton |
06820035C | 35 | 5 | 1,5 | 3/4" M | 1 | 1 |
06820050C | 50 | 6 | 1,5 | 3/4" M | 1 | 1 |
06820080C | 80 | 6 | 1,5 | 3/4" M | 1 | 1 |
06820100C | 100 | 6 | 1,5 | 3/4" M | 1 | 1 |
06820150C | 150 | 6 | 1,5 | 1" M | 1 | 1 |
06820200C | 200 | 6 | 1,5 | 1" M | 1 | 1 |
06820250C | 250 | 6 | 1,5 | 1" M | 1 | 1 |
06820300C | 300 | 6 | 1,5 | 1" M | 1 | 1 |
06820500C | 500 | 6 | 2,5 | 1" M | 1 | 1 |
