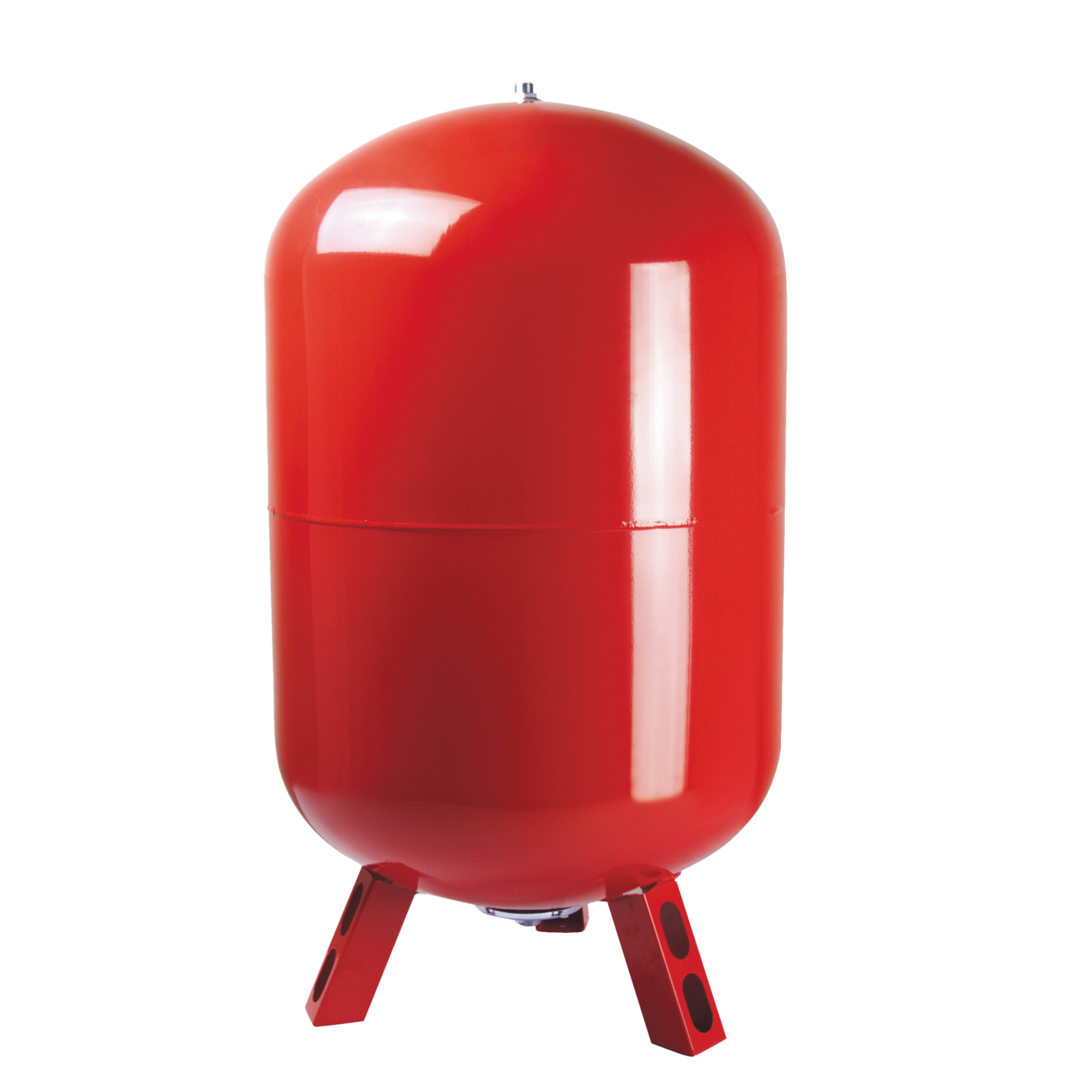

Diaphragm type expansion vessel MAG-H

Diaphragm type expansion vessel MAG-H

Description

Diaphragm type expansion vessel for closed heating installations in accordance with EN12828. Max. operating pressure 8 bar. Operating temperature -10 - +110 °C. Factory pre-set pressure 1,5 bar ( less than 500l ), 4 bar ( over 500l ) Vessels 35 and 50 l are with wall mounting brackets . Beginning with 80 l with pedestal.

Technical Features

Part no.

Type	Part no.WID	Volume	Connection
MAG-H	10017987	8 l	3/4" M
MAG-H	10017988	12 l	3/4" M
MAG-H	10017989	18 l	3/4" M
MAG-H	10017990	24 l	3/4" M
MAG-H	10017991	35 l	3/4" M
MAG-H	10017992	50 l	3/4" M
MAG-H	10017993	80 l	1" M
MAG-H	10017994	100 l	1" M
MAG-H	10017995	150 l	1" M
MAG-H	10017996	200 l	1" M
MAG-H	10017997	250 l	1" M
MAG-H	10017998	300 l	1" M
MAG-H	10017999	500 l	1.1/4" M
MAG-H	10018000	750 l	2" M
MAG-H	10018001	1000 l	2" M
WH 25/SG	10017932	Wall mounting brackets for MAG-H 8-24l
MAV 6	10018006	Test pressure gauge
