Dielectric Union ISO-RID VA-MS ½" - 2" stainless steel - brass
×
![]()
Dielectric Union ISO-RID VA-MS ½" - 2" stainless steel - brass
Dielectric Union ISO-RID VA-MS ½" - 2" stainless steel - brass
Description
Dielectric union made of stainless steel and brass to prevent corrosion in systems with various metallic materials, max. temperature 110 °C, max. pressure 16 bar, UBA-compliant. Seal kits available for all ISO-RID types.
- max. temperature: 110 °C
- max. pressure: 16 bar
- housing: stainless steel / brass CW511N
- seal: EPDM
- separation/insulator: HD-PE ring
Technical Features
Part no.
| Type | DN | Part. no. dielectric union | Box | Part no. seal kit |
| Internal thread - internal thread | ||||

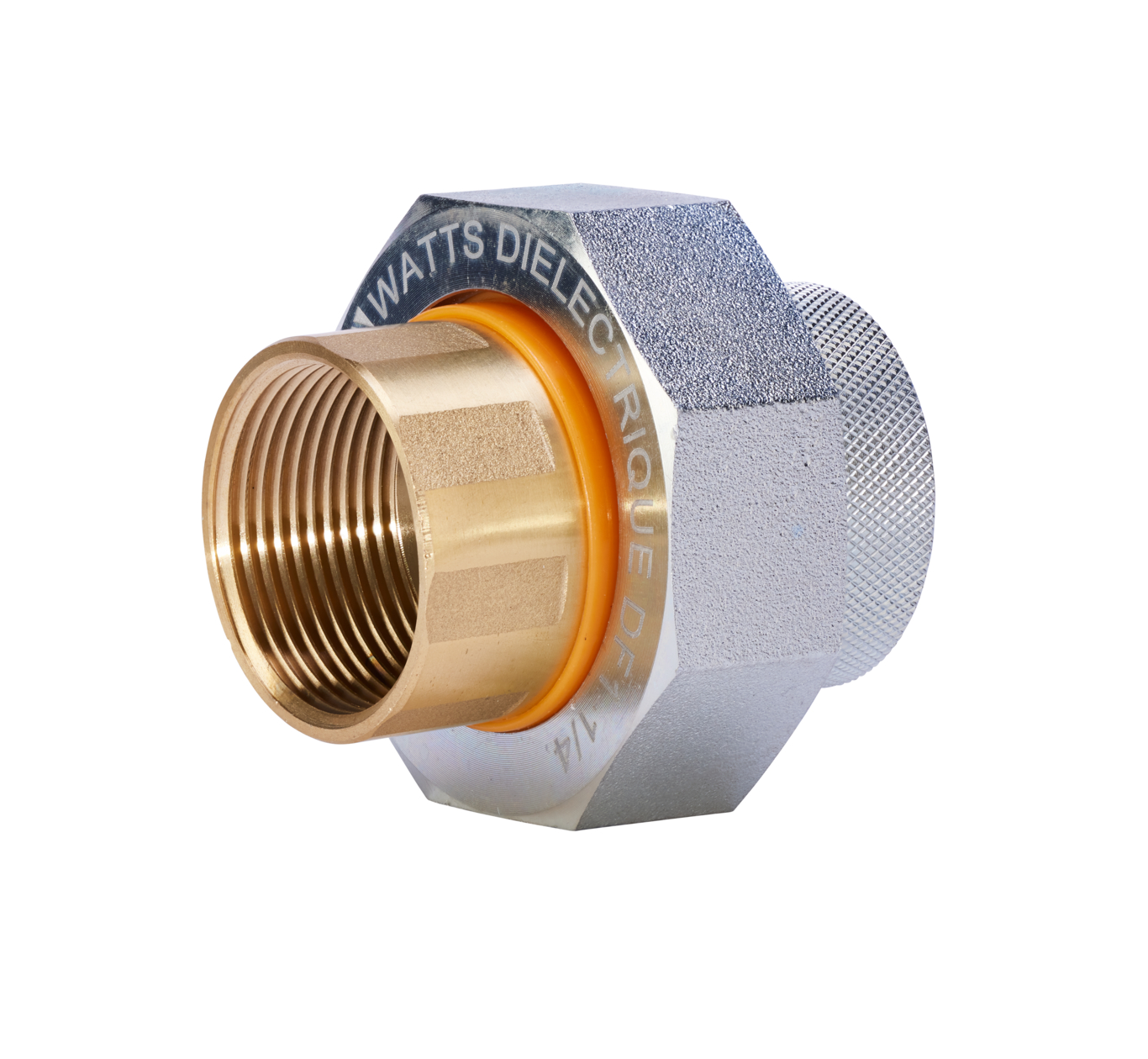

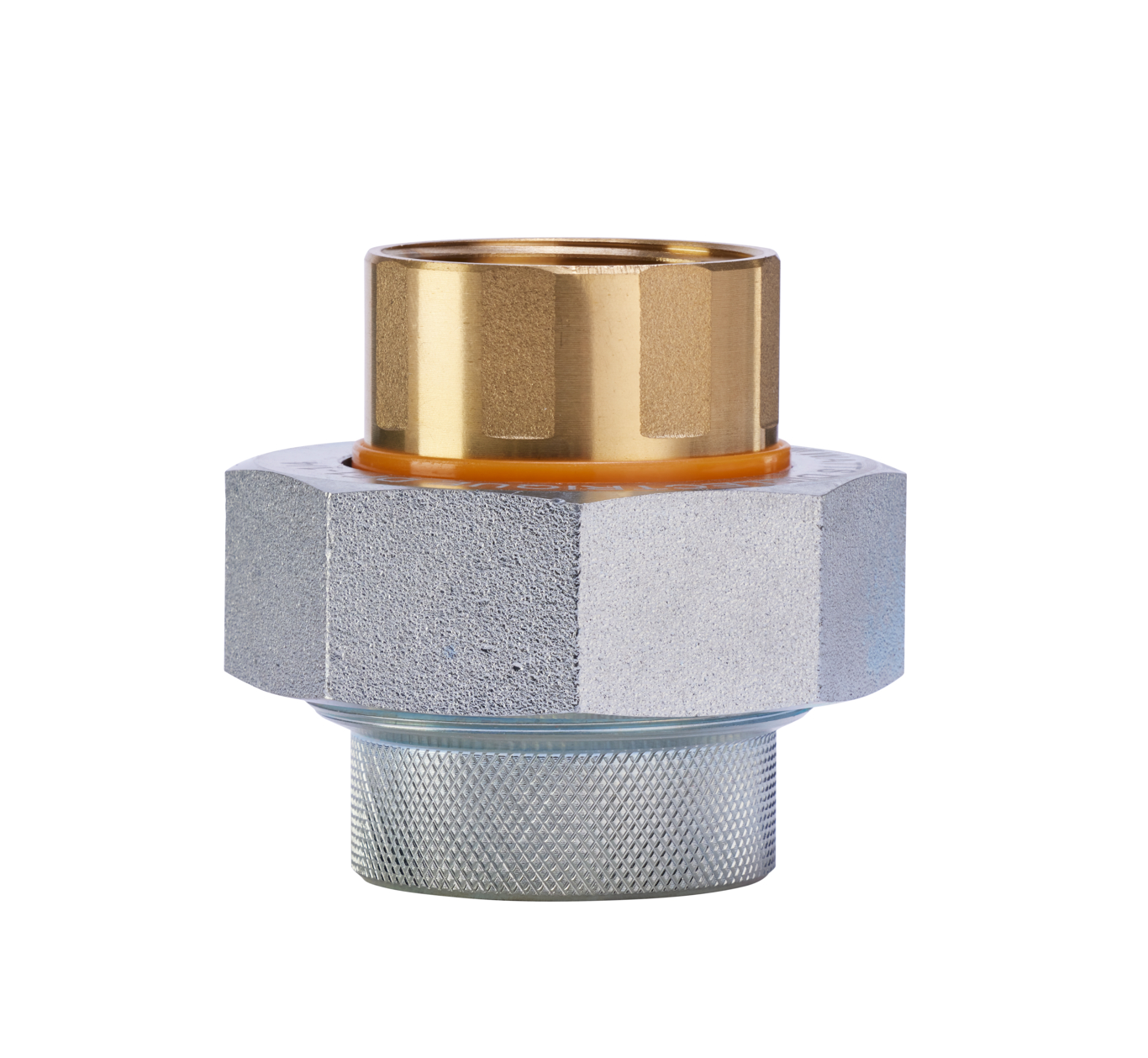

| ISO-RID IG-IG | ½" | 10088760 | 1/50 | 10089027 |
| ISO-RID IG-IG | ¾" | 10088761 | 1/50 | 10089028 |
| ISO-RID IG-IG | 1" | 10088762 | 1/25 | 10089029 |
| ISO-RID IG-IG | 1¼" | 10088763 | 1/15 | 10089030 |
| ISO-RID IG-IG | 1½" | 10088764 | 1/10 | 10089031 |
| ISO-RID IG-IG | 2" | 10088765 | 1/6 | 10089032 |
| nternal thread - external thread | ||||

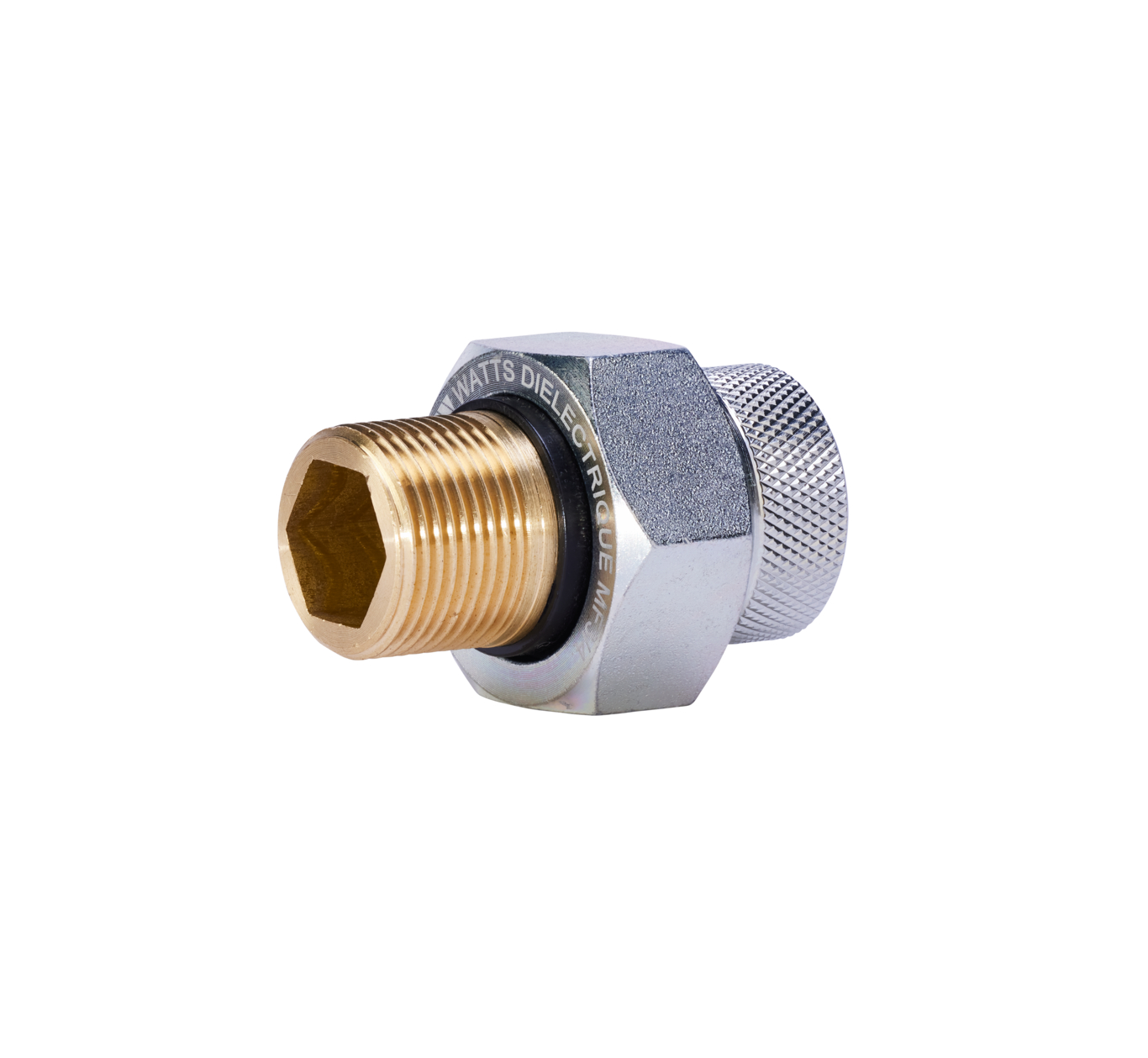

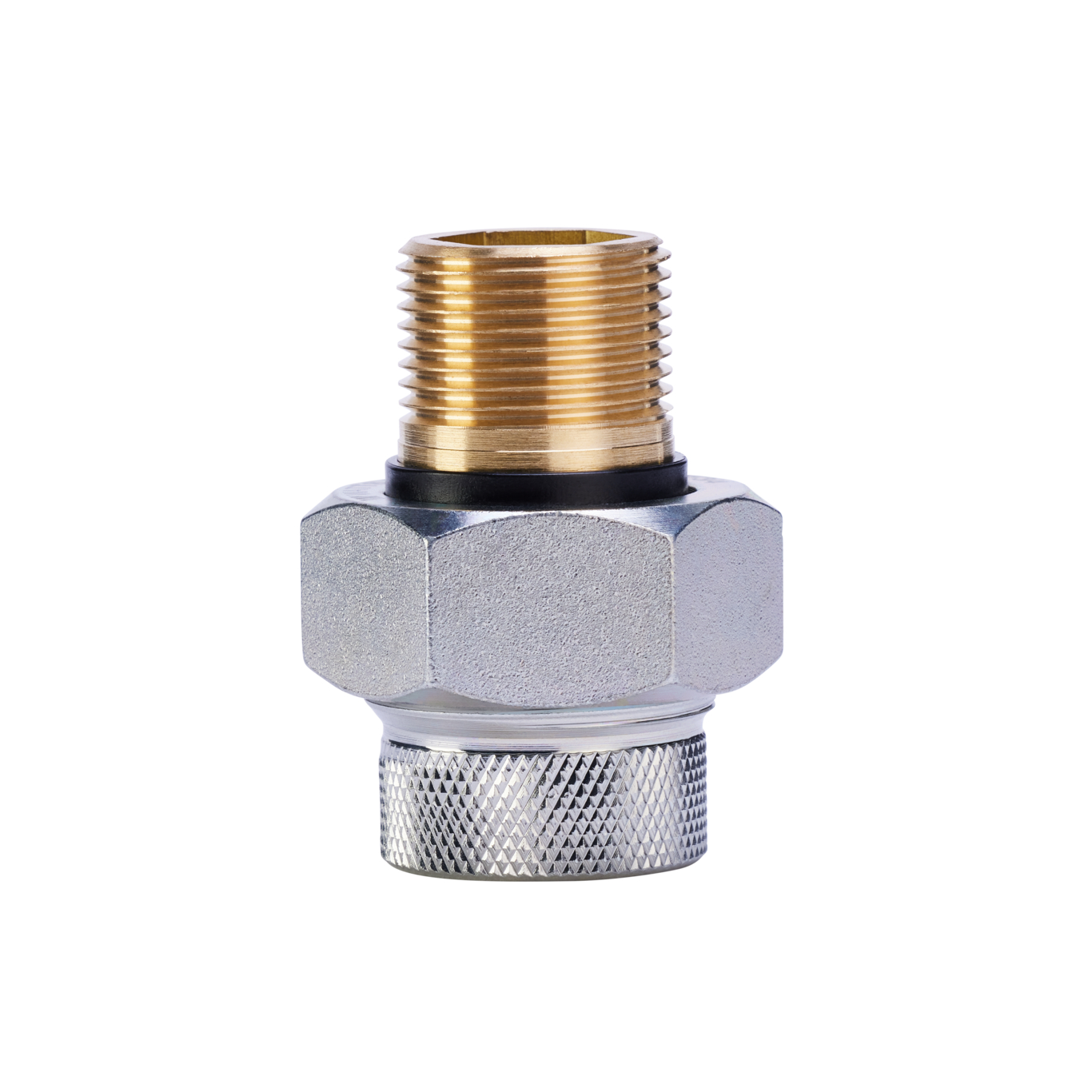

| ISO-RID IG-AG | ½" | 10088766 | 1/60 | 10089033 |
| ISO-RID IG-AG | ¾" | 10088767 | 1/50 | 10089034 |
