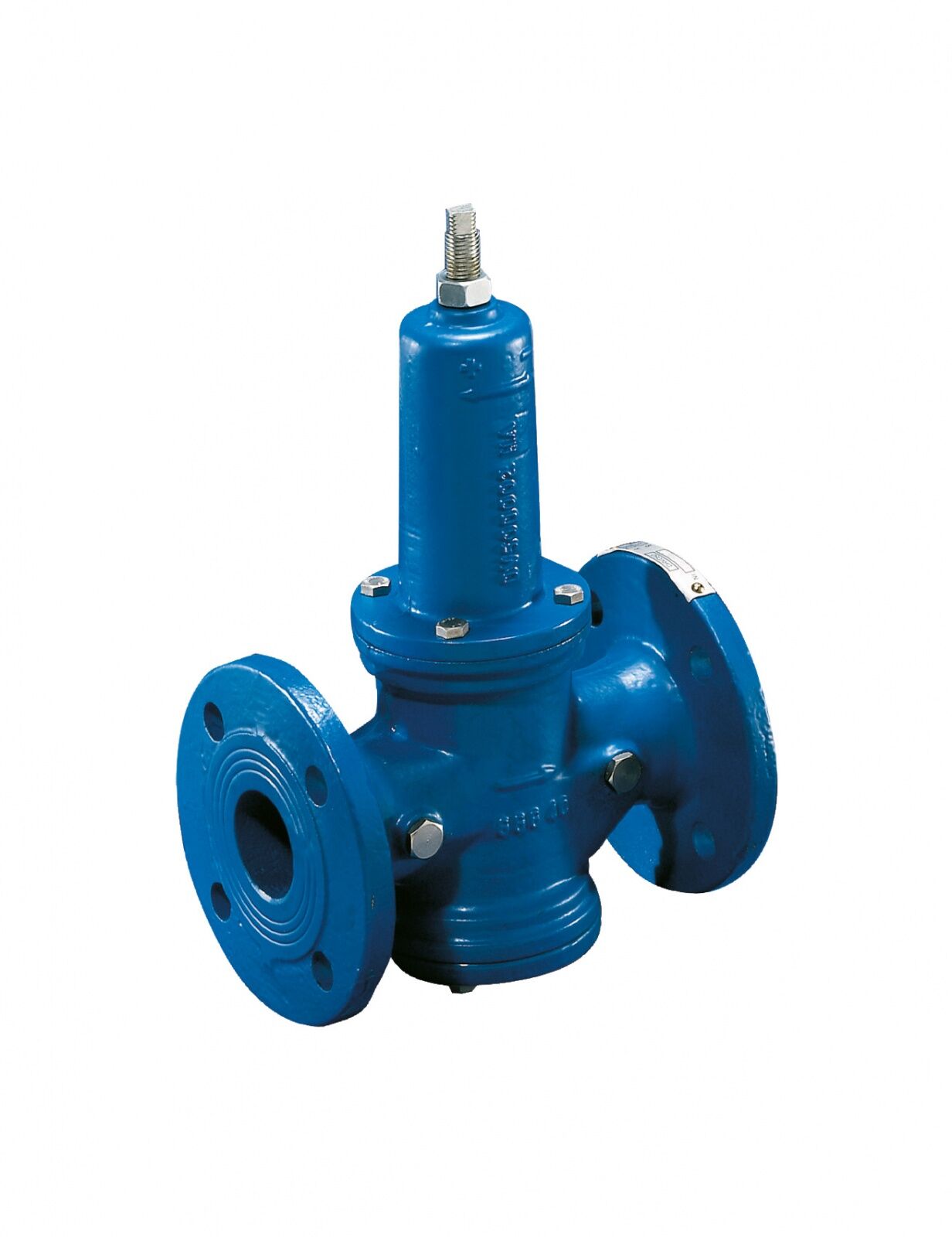

Flanged pressure reducing valve DRVD
×
![]()
Flanged pressure reducing valve DRVD
Flanged pressure reducing valve DRVD
Description
Flanged pressure reducing valve with single spring-compensated seat, pressure gauge connections upstream and downstream 1/4”. Cast iron body, cap and flanges with epoxy finish. Max. inlet pressure: 16 bar, 25 bar, 40 bar. Adjustable downstream pressures: 1,5 ÷ 6 bar / 2 ÷ 8 bar / 4 ÷ 12 bar. Optional version: 2 - 8 bar / 4 - 12 bar. Can be used for water. flanged connections UNI 2223. Available on request PN 25 and PN 40.
Technical Features
Part no.
| PN | Bars | DN | Code WIF | Code WII |
| PN 16 | 1,5-6 | 50 | 22L0504053 | 504053 |
| PN 16 | 1,5-6 | 65 | 22L0504068 | 504068 |
| PN 16 | 1,5-6 | 80 | 22L0504083 | 504083 |
| PN 16 | 1,5-6 | 100 | 22L0504103 | 504103 |
| PN 16 | 1,5-6 | 125 | 22L0504128 | 504128 |
| PN 16 | 1,5-6 | 150 | 22L0504153 | 504153 |
| PN 16 | 1,5-6 | 200 | 22L0504203 | 504203 |
| PN 16 | 2 - 8 | 50 | 504054 | |
| PN 16 | 2 - 8 | 65 | 504069 | |
| PN 16 | 2 - 8 | 80 | 504084 | |
| PN 16 | 2 - 8 | 100 | 504104 | |
| PN 16 | 2 - 8 | 125 | 504129 | |
| PN 16 | 2 - 8 | 150 | 504154 | |
| PN 16 | 2 - 8 | 200 | 504204 | |
| PN 16 | 4 -12 | 50 | 504055 | |
| PN 16 | 4 -12 | 65 | 504070 | |
| PN 16 | 4 -12 | 80 | 504085 | |
| PN 16 | 4 -12 | 100 | 504105 | |
| PN 16 | 4 -12 | 125 | 504130 | |
| PN 16 | 4 -12 | 150 | 504155 | |
| PN 16 | 4 -12 | 200 | 504205 | |
| PN 25 | 1,5-6 | 50 | 22L0504050 | 504050 |
| PN 2 | 4-12 | 65 | 22L0504065 | 504065 |
| PN 25 | 4-12 | 80 | 22L0504080 | 504080 |
| PN 25 | 4-12 | 100 | 22L0504100 | 504100 |
| PN 25 | 4-12 | 125 | 22L0504125 | 504125 |
| PN 25 | 4-12 | 150 | 22L0504150 | 504150 |
| PN 25 | 4-12 | 200 | 504200 | |
| PN 25 | 2 - 8 | 50 | 504051 | |
| PN 25 | 2 - 8 | 65 | 504066 | |
| PN 25 | 2 - 8 | 80 | 504081 | |
| PN 25 | 2 - 8 | 100 | 504101 | |
| PN 25 | 2 - 8 | 125 | 504126 | |
| PN 25 | 2 - 8 | 150 | 504151 | |
| PN 25 | 2 - 8 | 200 | 504201 | |
| PN 25 | 4 -12 | 50 | 504052 | |
| PN 25 | 4 -12 | 65 | 504067 | |
| PN 25 | 4 -12 | 80 | 504082 | |
| PN 25 | 4 -12 | 100 | 504102 | |
| PN 25 | 4 -12 | 125 | 504127 | |
| PN 25 | 4 -12 | 150 | 504152 | |
| PN 25 | 4 -12 | 200 | 504202 |
