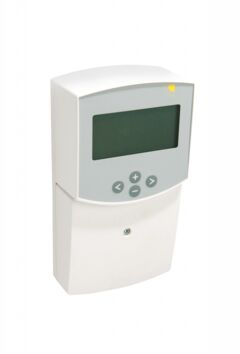

Solar Controller LCD Picto

This product is no longer available

Solar Controller LCD Picto
Jump to section
Description Technical Features Part no. Downloads Case Studies Related products
Ask a question

Description

LCD display with backlight and pictograms to show all possible insatllation. It includes: - installation menu (system, Extra, collector type...) - setting menu (dT value, Max. values...) - 7 working systems with several extra functions possibility - 2 inputs for collectors temperature sensors (PT1000 type) - 2 inputs for tanks temperature sensors (NTC type) - 2 pump outputs with pump exercise function - 1 extra output (to control additional heat, cooling system...) - Automatic, Off or Manual test mode - Sensors Auto checks (short circuit and breaks) - Collector type choice (tube or panel) - collector protection (freeze and over heat) - permanent memory storage

Power supply: 230VAC – 50Hz.

Technical Features

Part no.

Part Number Protection degree Q.ty/ Box
P04923 1)                 IP20 1

The product is no longer available
