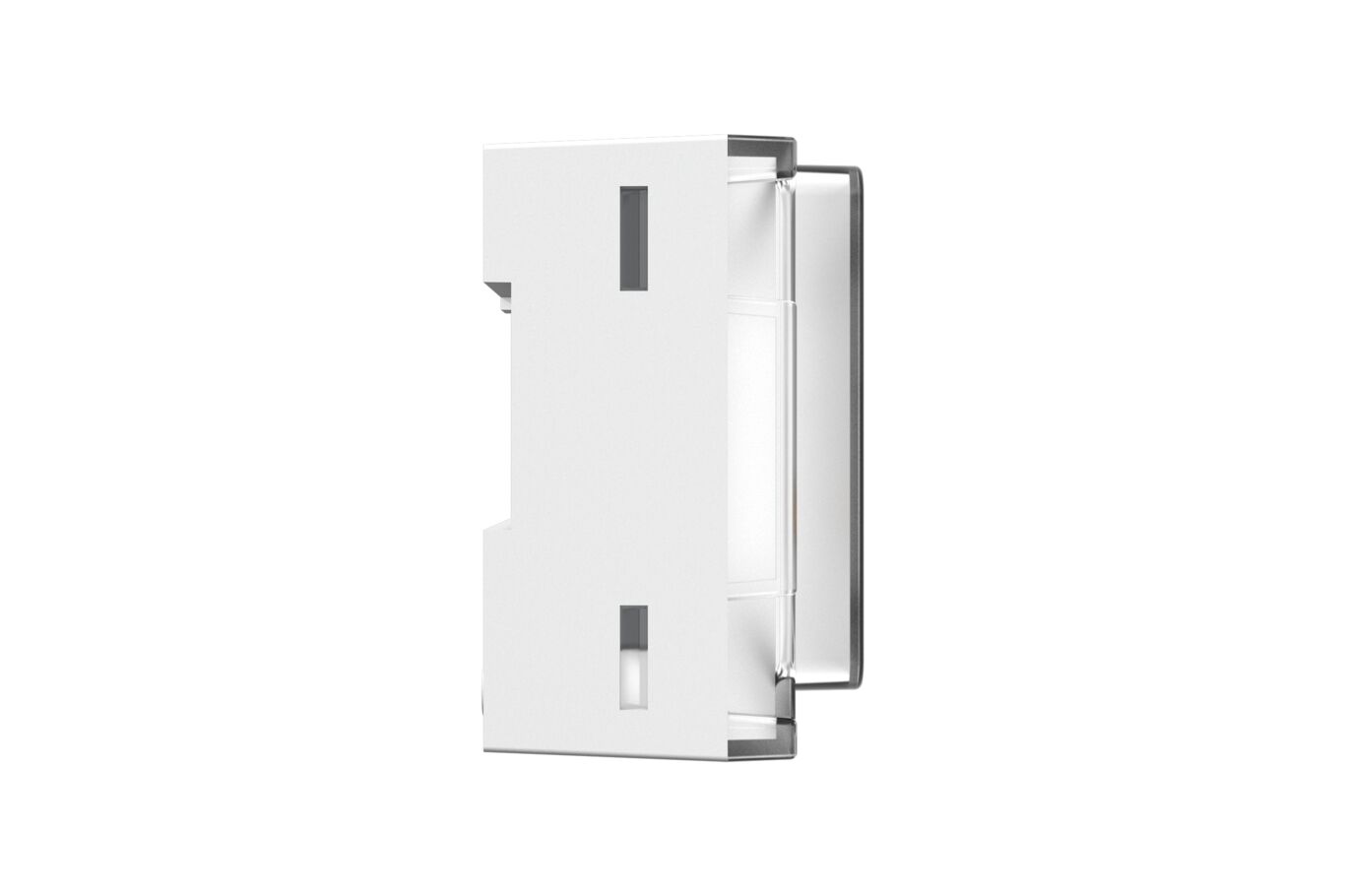

Wired Water Heating Controller WFC-03 E Extension module 230V actuators, 24V thermostats
Description
The Connecting box WFC-03 E is especially designed to control your Under Floor Heating system. It allows easy and quick connection of 24V thermostats and 230V actuators. It is compatible with
• Wired Water Heating Controller WFC-03 H+ with pump output, 230V actuators, 24V thermostats
• Wired Water Heating Controller Heat & Cool WFC-03 HC, 230V actuators, 24V thermostats.
It has integrated multiple functions:
Wall mounted or mounter on DIN Rail
Push-in cable connections with strain relief
Easy merging of the zones on the same thermostat (DIP switches)
Technical Features
Maximal humidity percentage: 85% at 20°C (68°F)
Electrical protection: Class II with functional earth
IP Protection: IP30
Shipping and storage temperature: -10 °C à 50 °C (14 °F à 122 °F)
Power supply: 230 VAC ± 10% 50Hz
Actuators: 230V NC up to 2.5W
24V Thermostats (Up to 6 zones)
Compatibility WT-A03; WT-A03 HC; WT-D03; WT-DP03
