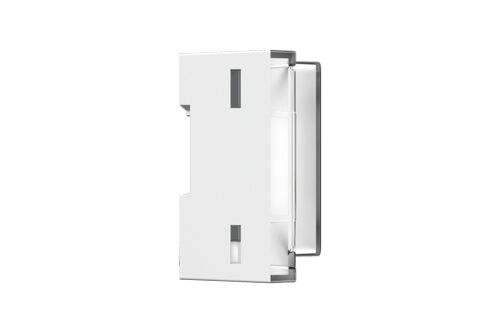

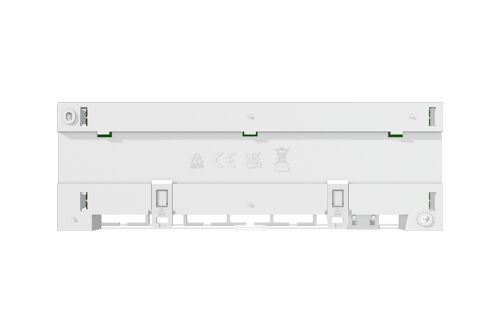

RF Heat & Cool module for Water Heating Controller WFC-03 HCM
Description
The WFC-03 HCM RF 230 is especially designed to control heating and cooling in combination with controllers series WFHC02 HC RF. The device is an option with 3 main value proposals: - Separate heating and cooling signal - Global dehumidifier control - Global Heating & cooling mode control It has integrated multiple functions: - Wall mounted or mounted on DIN Rail - Push-in cable connections with strain relief - LED status indication and DIP switch for device setting - H&C input (230V and volt free signal) - Humidity input (Volt free contact) or water temperature measurement (Probe not supplied) for humidity detection - Dehumidifier output - Pump or boiler output (230V and volt free signal) - Heating output and cooling output - Internal RF antenna, optional external antenna
- Electrical protection: Class II with functional earth
- IP Protection: IP30
- Shipping and storage temperature: -10°C à 50°C (14°F à 122°F)
- Power supply: 230 VAC ± 10% 50Hz
- Output maximum load (5 outputs): Relay : 5A
- Compatibility: series WFHC02 HC RF
Technical Features
Part no.
| Type | Part no. | Description |
| WFC-03 HCM RF868 230 | P08401 | RF Heat & cool module for Water Heating Controller 230 VAC |
