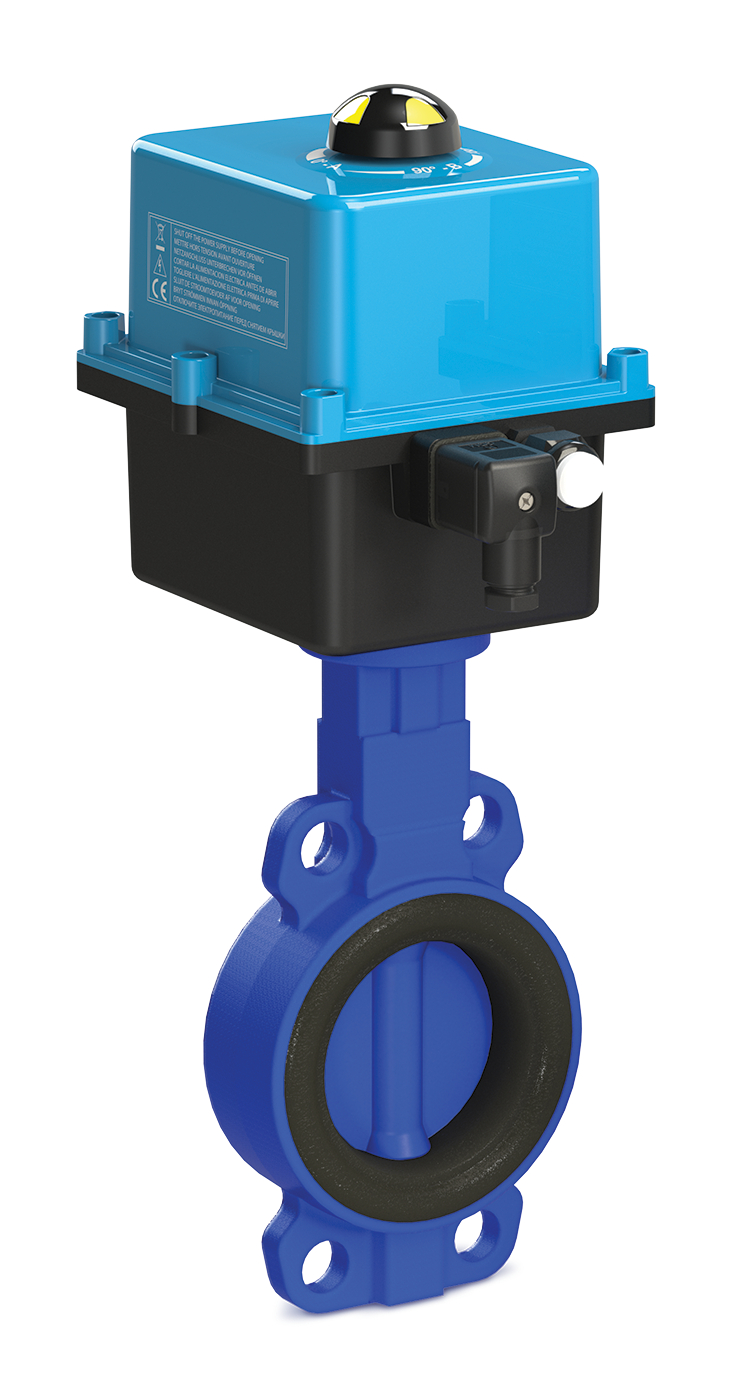

sylax butterfly valve wafer electric epoxy
×

Sylax WAFER epoxy butterfly valve with 100-240VAC electric actuator

Configuration Tool
Sylax WAFER epoxy butterfly valve with 100-240VAC electric actuator
Jump to section
Description Technical Features Part no. Downloads Videos Case Studies Related products
Ask a question

Description

Butterfly valve with centring lugs and 100-240 VAC (100-350 VDC) electric actuator for heating water, raw water, clear water and drinking water. Epoxy-coated GS cast iron body and butterfly valve - EPDM sleeve.

  • PFA 6, 10 or 16 bar.
  • Fluid temperature: -15°C to 120°C.
  • Actuator temperature:
  • ER+: -10°C to +55°C,
  • VR/VS/VT+: -20°C to +70°C

Technical Features

Part no.

Part no.ConnectionPFADN
149G083730PN6/10/16/ASA150665
149G083731PN6/10/16/ASA150680
149G088534PN6/10/16/ASA1506100
149G088535PN6/10/16/ASA1506125
149G088536PN6/10/16/ASA1506150
149G091786PN6/10/16/ASA1506200
149G098286PN6/10/16/ASA1506250
149G098287PN6/10/16/ASA1506300
149G083741PN6/10/16/ASA1501650
149G083742PN6/10/16/ASA1501665
149G083743PN6/10/16/ASA1501680
149G088538PN6/10/16/ASA15016100
149G088539PN6/10/16/ASA15016125
149G098288PN6/10/16/ASA15016150
149G098289PN6/10/16/ASA15016200
149G098290PN6/10/16/ASA15010250
149G103845*PN6/10/16/ASA15010300

*100V to 240V 50/60Hz (100V to 300VDC)
