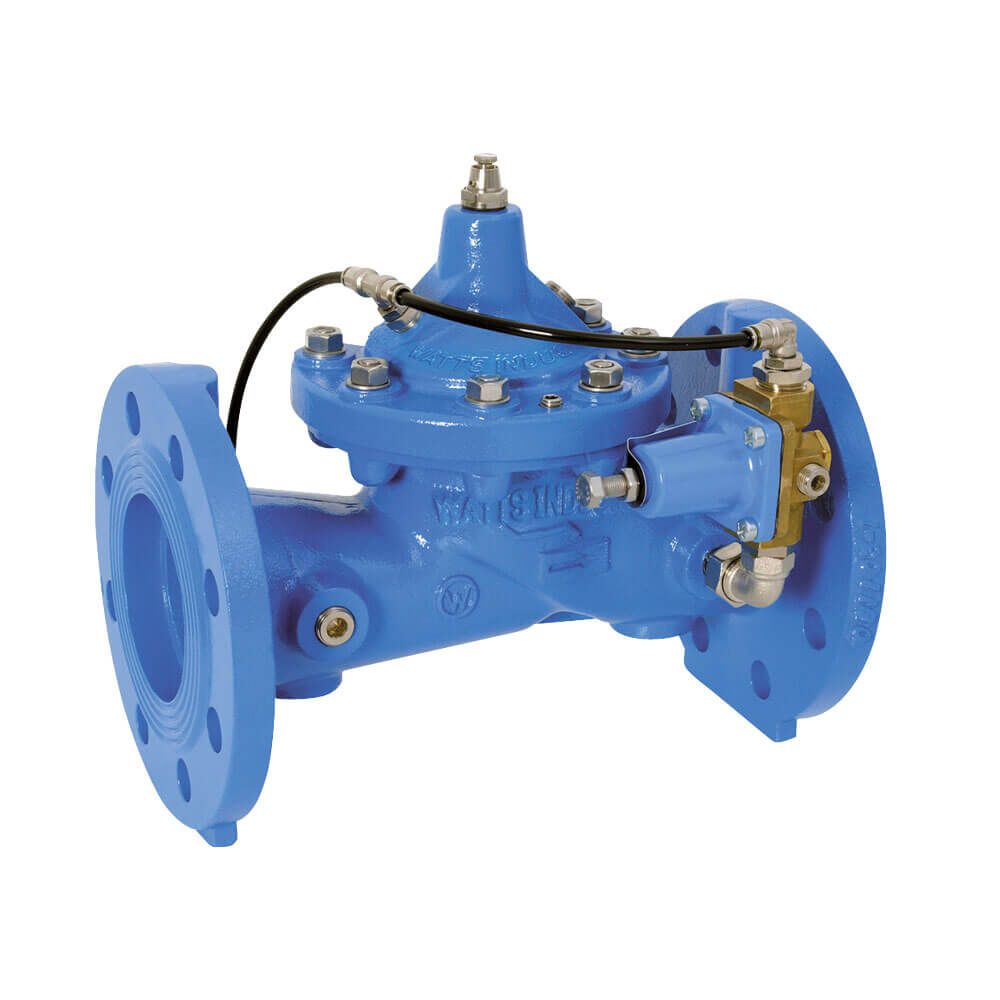

Flanged pressure reducing valve PR500 with pilot
×
![]()
Flanged pressure reducing valve PR500 with pilot
Flanged pressure reducing valve PR500 with pilot
Leírás
Pressure reducing valve pilot operated. Designed to reduce a higher upstream pressure to a constant lower downstream pressure. Easy to install and adjustable outlet pressure. Body: Ductil Iron ggg40. Epoxy finish: internal and external. Diaphragm: NBR. Pilot in stainless steel. Max working temperature : + 70°C. Nominal Pressure: PN 16, 25. Adjustment range of pilot: STANDARD: 1,4 - 12 bar. On request: 0,1 - 2 bar, 7 - 21 bar. fluid: water.
