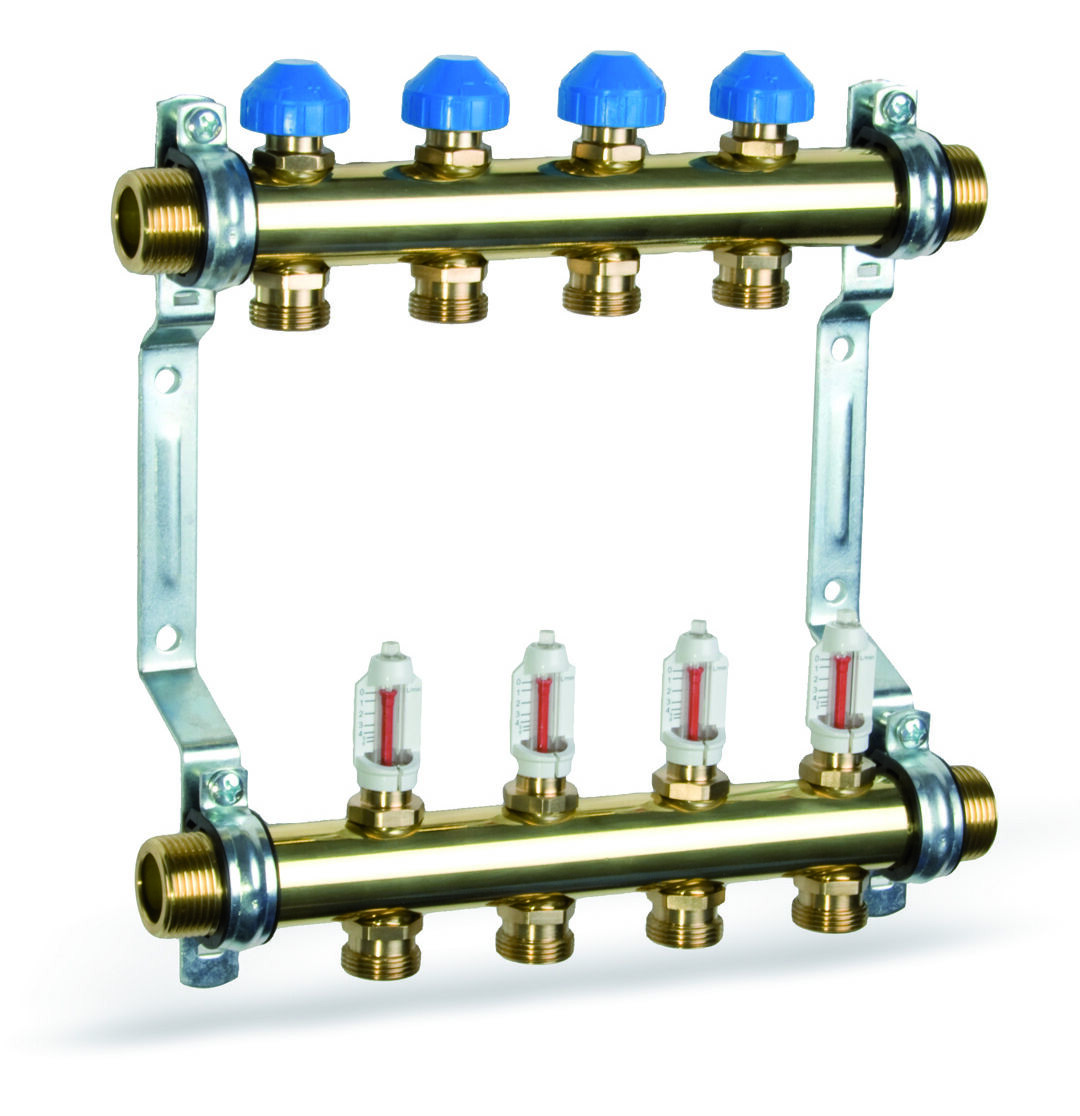

Heating manifold HKV2013A 55mm with Flow Meters for Underfloor
Heating manifold HKV2013A 55mm with Flow Meters for Underfloor
Описание
Brass round pipe heating circuit manifold according to EN 1264-4. Flat sealing connections 1”M. Low installation depth. Connection nipple G3/4” with Eurocone, 55 mm distance, off-set position. Function and pressure tested. SUPPLY: Flow meter 0 - 6 l/min with low pressure drop and shut-off function. RETURN: Control and shut-off valve with adaption M30 x 1,5.
- Max. admissible operation temperature: +90 °C
- Min. admissible operation temperature: -10 °C
- Max. admissible operation pressure: 10 bar
- Valves and fittings: Brass CW614N
- Manifold Pipe: Brass CW614N
- O-Rings: EPDM Elastomers
- Washers: EPDM Elastomers or Aramid AFM34
- Ball seat: PTFE
- Polymers: Impact- and temperature resistant
- Brackets: Steel, galvanized
