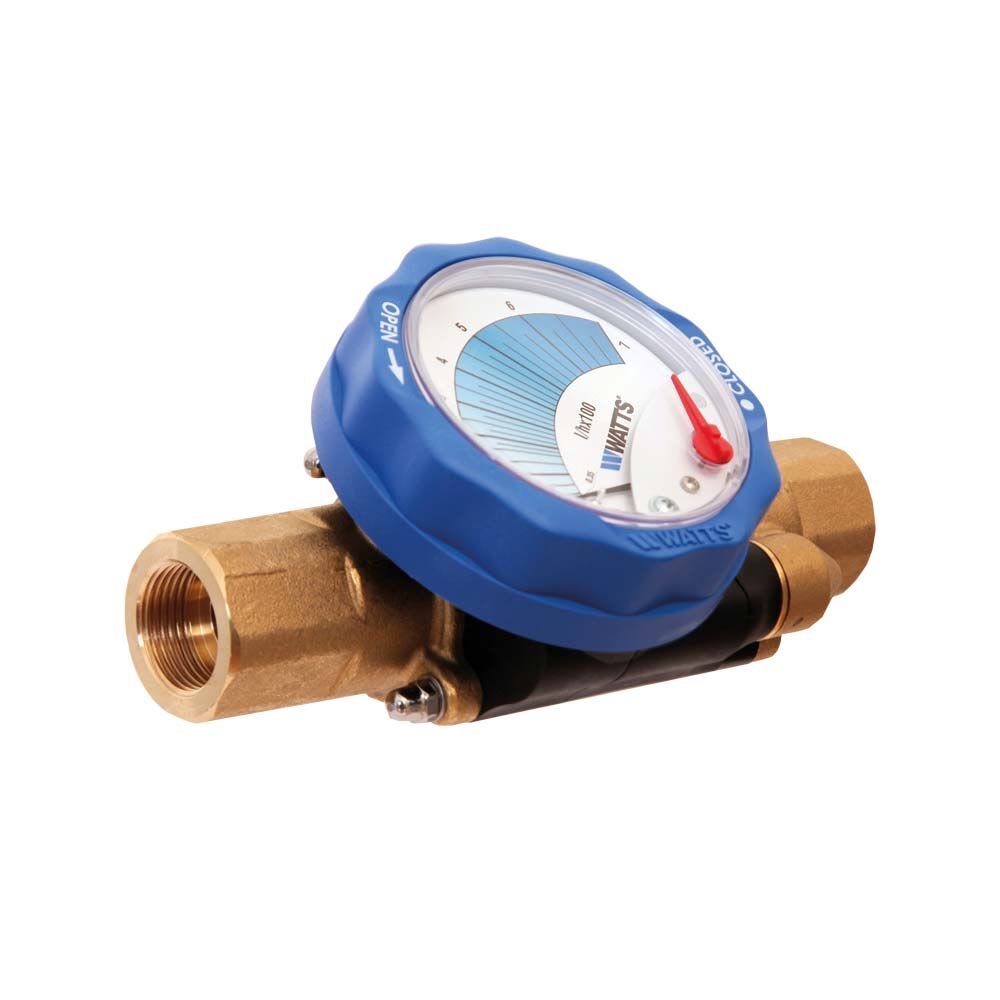

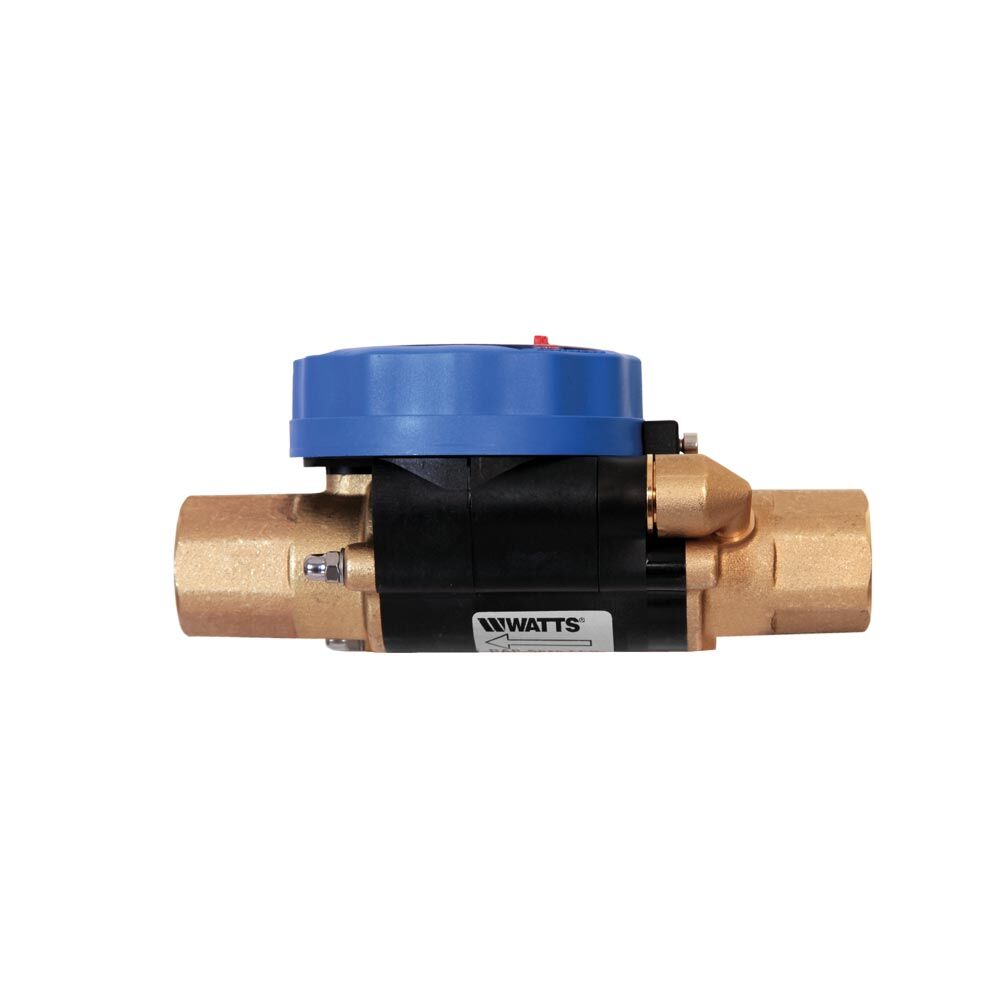

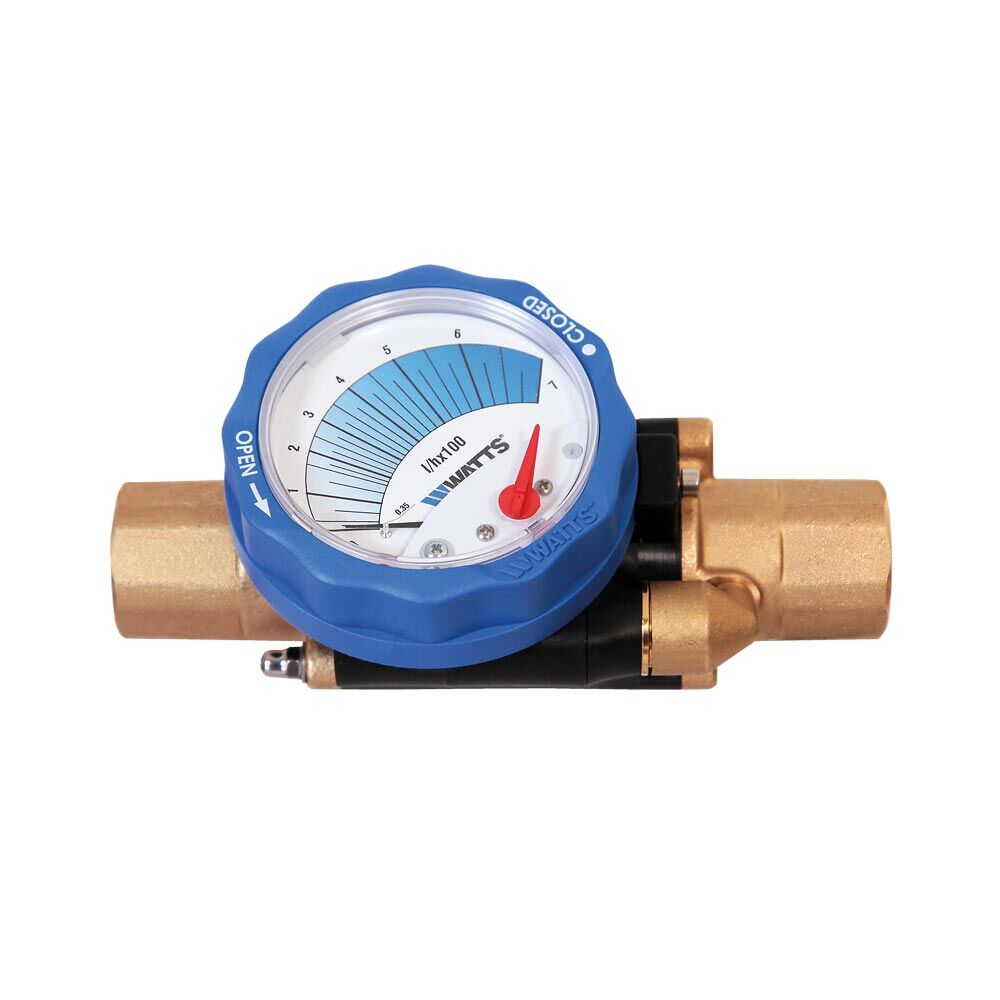

Static balancing valve iDROSET® Series CF FFG
×
![]()
Static balancing valve iDROSET® Series CF FFG
Static balancing valve iDROSET® Series CF FFG
Description
Static balancing and control valve Series CF Watts Brand with free nut connection from DN15 to DN50 for heating, cooling and domestic water distribution systems. Brass and polyamide body. New patented technology that allows to set and read instantly the flow rate on board without the requirement of special tools. Shut-off function. Lock of the hand wheel. Indication of the flow rate set point by a manual red pointer. Isolation shells for balancing valves iDROSET® Series CF. Thermal conductivity λ: 0,036 W/mK. Fire resistant: B2 Class - DIN 4102. NB. Please check your local regulations for application suitability.
- Nominal pressure of 16 bar.
- Operating temperature range from -10 °C to 110 °C.
- Balancing turn down ratio up to 32:1.
- Fluids: water with glycol up to 50%.
- Connection: 1/2"-2" FF
Technical Features
Part no.
Downloads
-
iDROSET Series CF | STEP | XL050
-
iDROSET Series CF | DXF | XL050
-
iDROSET Series CF | STEP | S020
-
iDROSET Series CF | DXF | S020
-
iDROSET Series CF | DWG | S020
-
iDROSET Series CF | DXF | S015
-
iDROSET Series CF | DWG | S015
-
iDROSET Series CF | STEP | M025
-
iDROSET Series CF | DXF | M025
-
iDROSET Series CF | DWG | M025
-
iDROSET Series CF | STEP | L040
-
iDROSET Series CF | DXF | L040
-
iDROSET Series CF | DWG | L040
-
iDROSET Series CF | STEP | L032
-
iDROSET Series CF | DXF | L032
-
iDROSET Series CF | DWG | L032
-
iDROSET Series CF | DWG | XL050
-
iDROSET Series CF | STEP | FF connection
