Stainless Steel Manifold with automatic flow control HKV2013A-AFC for HIU2
×
![]()
Stainless Steel Manifold with automatic flow control HKV2013A-AFC for HIU2
Stainless Steel Manifold with automatic flow control HKV2013A-AFC for HIU2
Description

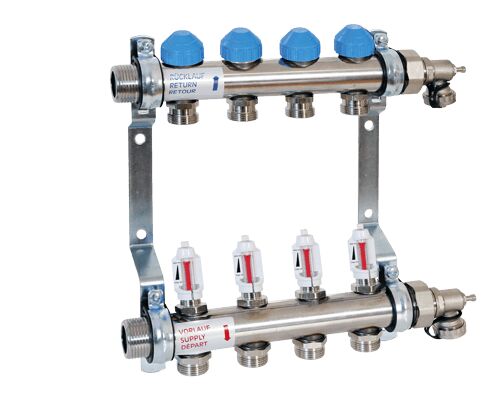

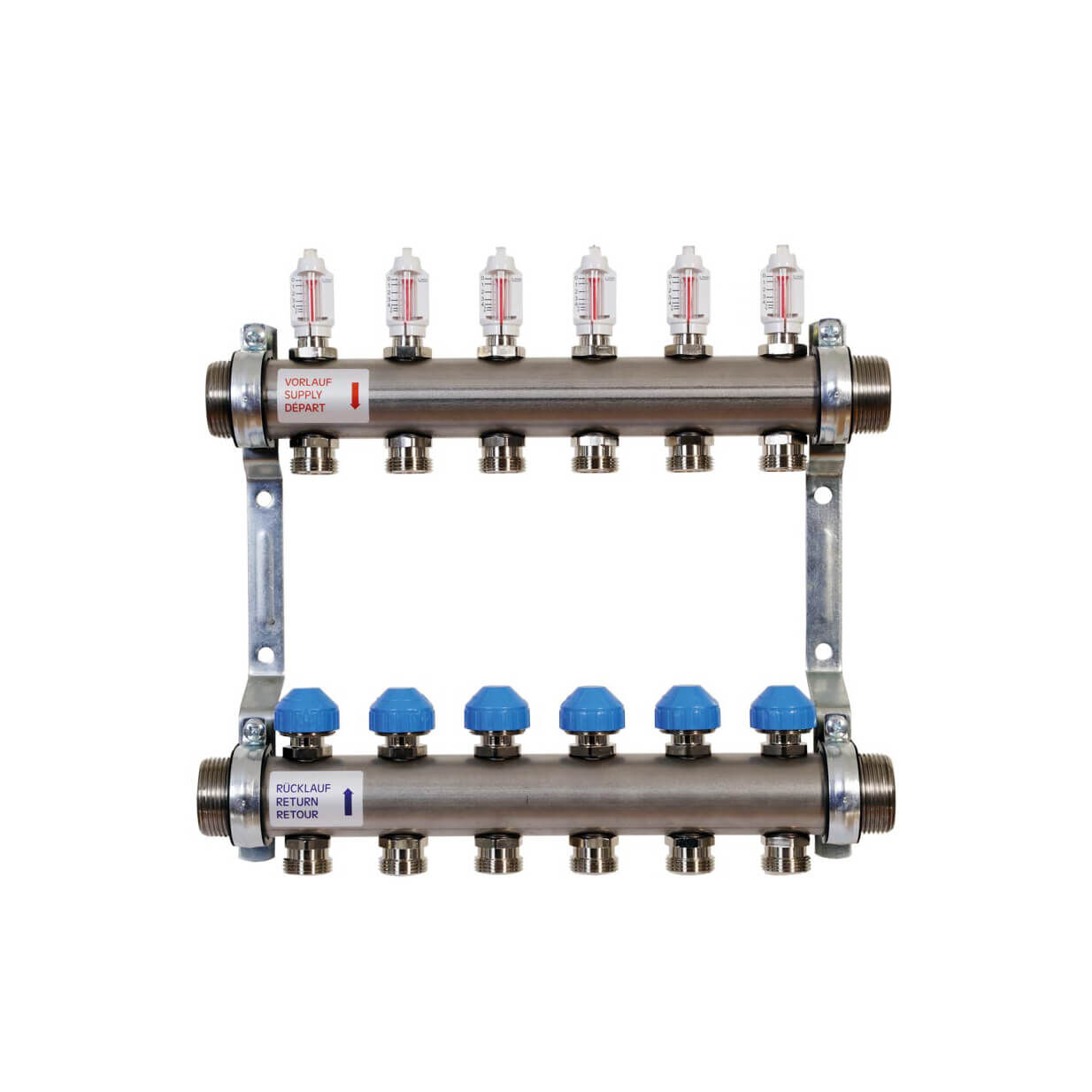

Stainless steel round pipe heating circuit manifold according to EN 1264-4. Flat sealing connections 1” M. Low installation depth. Connection nipple G 3/4” with Eurocone, 50 mm distance. End set KFE90. SUPPLY (bottom): Flowmeter with low pressure drop and shut-off function. RETURN (return): Control and shut-off valve with adaption M30 x 1,5 with setting range: 30 to 300 l/h.
- Max. admissible operation temperature: +70 °C
- Min. admissible operation temperature: -5 °C *
- Max. admissible operation pressure: 10 bar
- Valves and fittings: Brass CW614N /CW617N
- Manifold Pipe: stainless steel 1.4301
- O-Rings: EPDM Elastomers
- Washers: EPDM Elastomers or Aramid AFM34
- Polymers: Impact- and temperature resistant
- Brackets: Steel, galvanized
Technical Features
Part no.
| Type | Part no. | Heizkreise |
| HKV2013A-50-1"-AFC VA02 | 10084806 | 2 heating circuits |
| HKV2013A-50-1"-AFC VA03 | 10084807 | 3 heating circuits |
| HKV2013A-50-1"-AFC VA04 | 10084808 | 4 heating circuits |
| HKV2013A-50-1"-AFC VA05 | 10084809 | 5 heating circuits |
| HKV2013A-50-1"-AFC VA06 | 10084810 | 6 heating circuits |
| HKV2013A-50-1"-AFC VA07 | 10084811 | 7 heating circuits |
| HKV2013A-50-1"-AFC VA08 | 10084812 | 8 heating circuits |
| HKV2013A-50-1"-AFC VA09 | 10084813 | 9 heating circuits |
| HKV2013A-50-1"-AFC VA10 | 10084814 | 10 heating circuits |
| HKV2013A-50-1"-AFC VA11 | 10084815 | 11 heating circuits |
| HKV2013A-50-1"-AFC VA12 | 10084816 | 12 heating circuits |
