Description

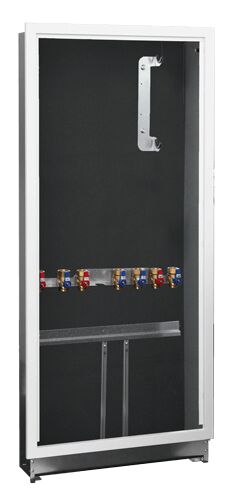

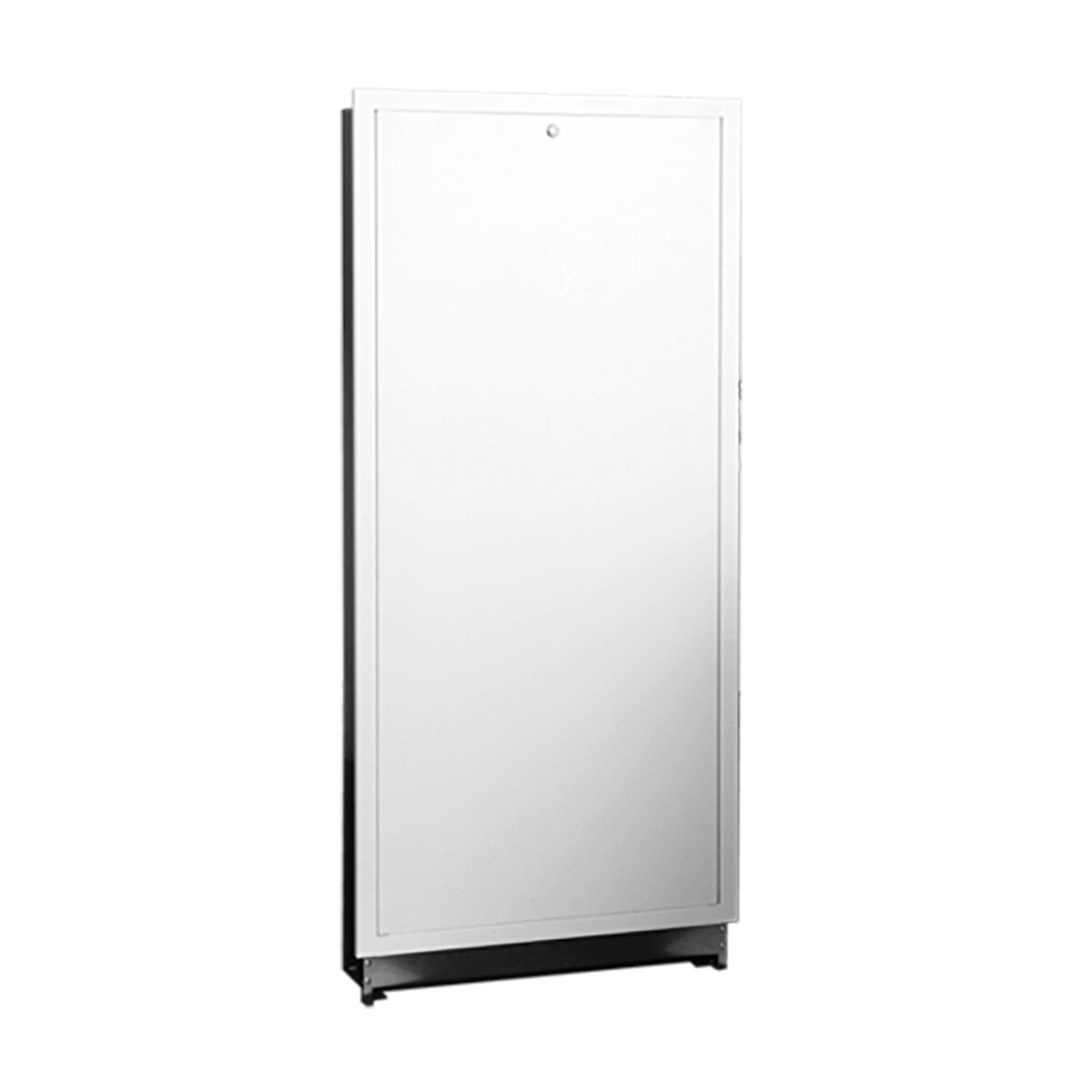

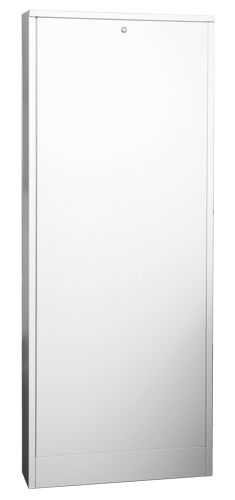

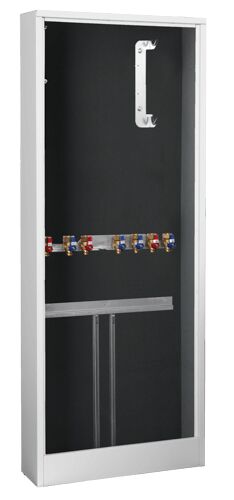

The stable housing made of galvanised sheet steel provides space for a HIU2 HKM home station in combination with heating circuit manifolds as well as all components and accessories. Consisting of body, front door, lock, stable bracket for hanging the home station, as well as a pre-mounted connection rail with shut-off set consisting of 7 ball valves. For quick removal of the home station at any time for replacement and repair work. The combination cabinet including door is insulated in conformity with the GEG (German Energy Saving Ordinance). Housing and front door painted white.
Technical Features
Part no.
| Type | Width with frame | Width without frame | Height without frame | Depth with frame | Depth without frame | Number of heating circuits | Part no. |
| HIU2VSUI-2 550 | 600 mm | 550 mm | 1515 mm | 170 mm | 150 mm | for max. 6 heating circuits | 10085022 |
| HIU2VSUI-3 700 | 750 mm | 700 mm | 1515 mm | 170 mm | 150 mm | for max. 9 heating circuits | 10088325 |
| HIU2VSUI-4 850 | 900 mm | 850 mm | 1515 mm | 170 mm | 150 mm | for max. 12 heating circuits | 10085023 |
