Heating circuit manifold HKV PnG Pur with push-fit connector
×
![]()
Heating circuit manifold HKV PnG Pur with push-fit connector
Heating circuit manifold HKV PnG Pur with push-fit connector
Description

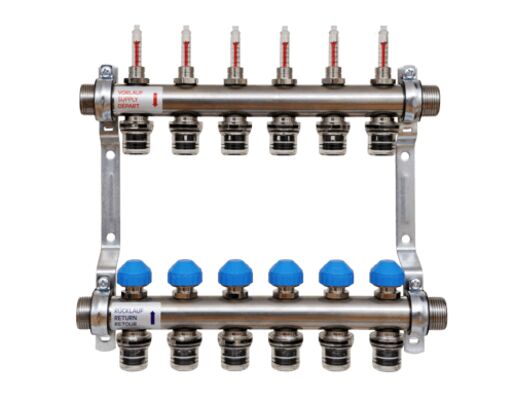

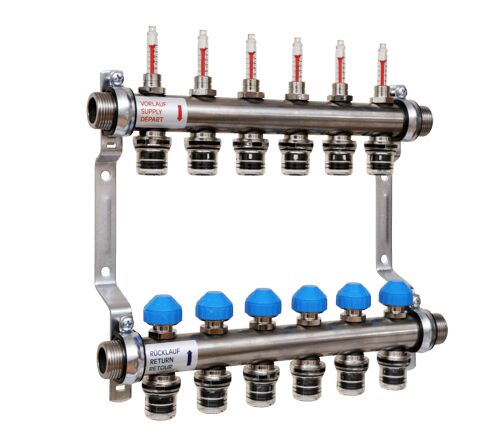

Stainless steel round pipe manifold according to DIN EN 1264-4. Flat-sealing 1" male connection on both sides for manifold accessories and manifold control station. Pre-assembled Push'n'Go connectors on outlets for connection of Ø 16 mm PEX pipe according to DIN EN ISO 15875-2 or PERT pipe (Important: not suitable for connecting to aluminium composite pipes). Centre distance of the outlets 50 mm. Ready-mounted on wall bracket, pipe clamps sound-insulated according to DIN 4109. Supply (top): Shut-off flow meter with very low pressure loss. Flow rate display 0-4 l/min. Return (bottom): regulating and shut-off valves with adaptation M30 x 1.5. Closing dimension 11.8 mm. Scope of delivery: Manifold only.
Technical Features
Part no.
| Typ | Description | Part no. |
| HKV 0-4 1" VA PnG Pur 02 | for 2 heating circuits | 10084923 |
| HKV 0-4 1" VA PnG Pur 03 | for 3 heating circuits | 10084924 |
| HKV 0-4 1" VA PnG Pur 04 | for 4 heating circuits | 10084925 |
| HKV 0-4 1" VA PnG Pur 05 | for 5 heating circuits | 10084926 |
| HKV 0-4 1" VA PnG Pur 06 | for 6 heating circuits | 10084927 |
| HKV 0-4 1" VA PnG Pur 07 | for 7 heating circuits | 10084928 |
| HKV 0-4 1" VA PnG Pur 08 | for 8 heating circuits | 10084929 |
| HKV 0-4 1" VA PnG Pur 09 | for 9 heating circuits | 10084930 |
| HKV 0-4 1" VA PnG Pur 10 | for 10 heating circuits | 10084931 |
| HKV 0-4 1" VA PnG Pur 11 | for 11 heating circuits | 10084932 |
| HKV 0-4 1" VA PnG Pur 12 | for 12 heating circuits | 10084933 |
