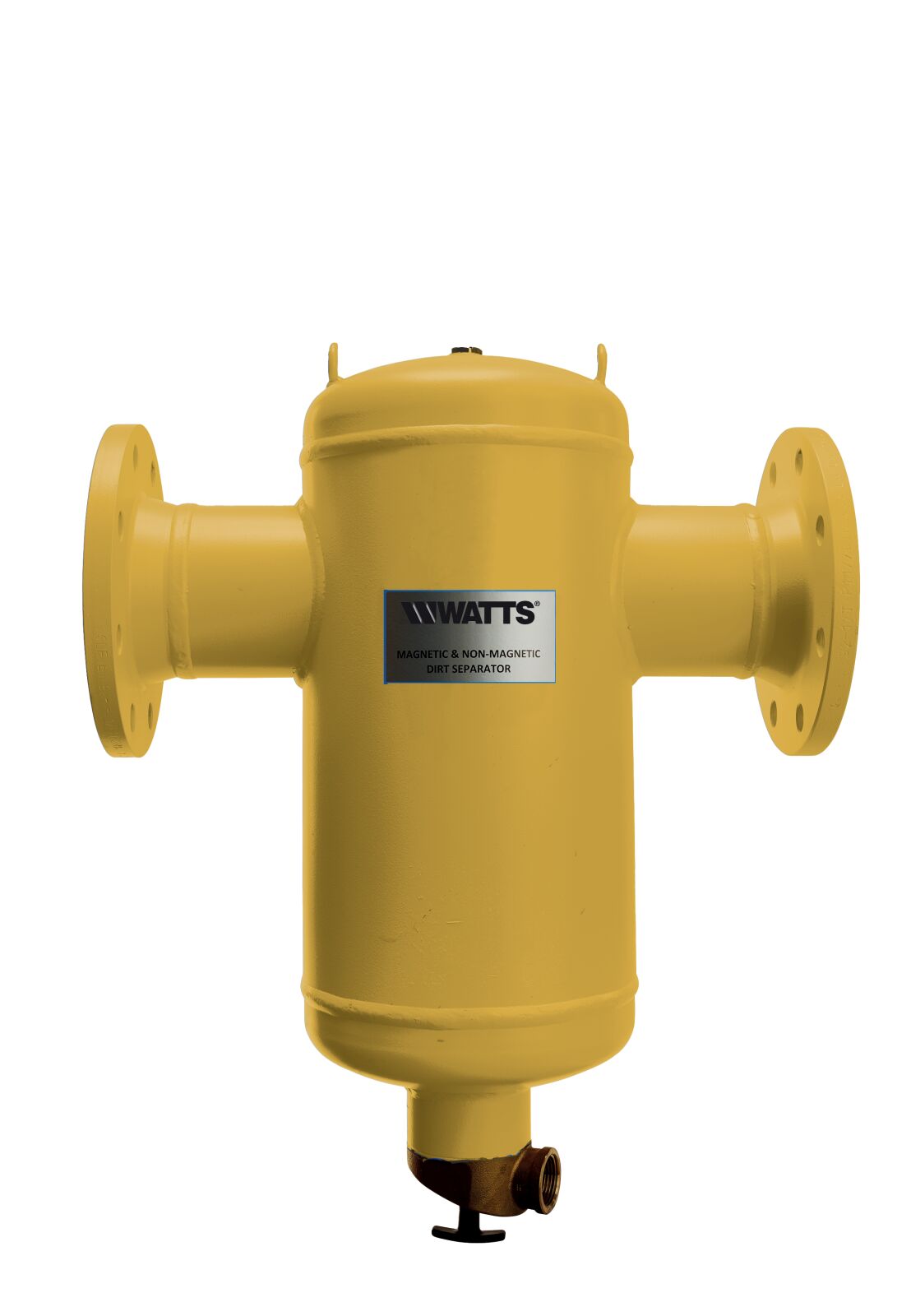

Flanged magnetic dirt separator WBS
×
![]()
Flanged magnetic dirt separator WBS
Flanged magnetic dirt separator WBS
Description
Dirt separator for the removal of sludge and impurities (magnetic and otherwise) from heating/cooling systems, complete with removable external magnet and drain valve for cleaning. Fast, convenient dirt removal. Easy to install horizontally. Easy to clean. Stainless steel body. For use with water and water/glycol (up to 50%). Maximum operating temperature: 110°C. Particle separation capacity: up to 5 microns. EPP rigid foam insulation as per AnIV and EnEV requirements up to DN100: available to order.
Technical Features
Part no.
| Part Number | DN | Flow/PN | Q.ty/Box | Box/Carton |
| DSF0065W | DN65 | 20,00 m3/h - PN 10 | 1 | 1 |
| DSF0080W | DN80 | 27,00 m3/h - PN 10 | 1 | 1 |
| DSF0100W | DN100 | 47,00 m3/h - PN 10 | 1 | 1 |
| DSF0125W | DN125 | 72,00 m3/h - PN 10 | 1 | 1 |
| DSF0150W | DN150 | 108,00 m3/h - PN 10 | 1 | 1 |
| DSF0200W | DN200 | 180,00 m3/h - PN 10 | 1 | 1 |
| DSF0250W | DN250 | 288,00 m3/h - PN 10 | 1 | 1 |
| DSF0300W | DN300 | 405,00 m3/h - PN 10 | 1 | 1 |
