PRESSURE REDUCING VALVES REDUBLOC 3.1
×
![]()
PRESSURE REDUCING VALVES REDUBLOC 3.1
PRESSURE REDUCING VALVES REDUBLOC 3.1

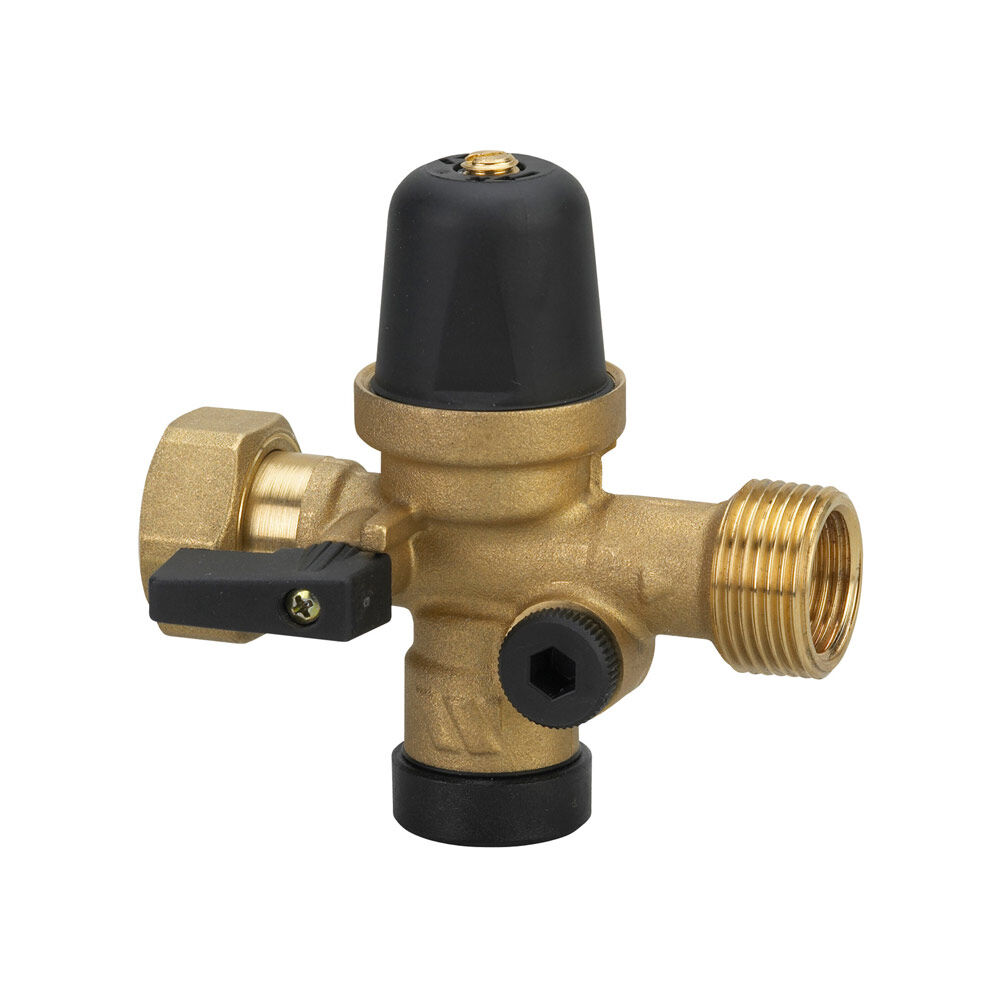

Description
Single device intended for water connection, combining 3 functions in one body. 1. Isolating Valve 2. Pressure reducing valve 3. Non return valve ( according to NF) ADVANTAGES - Easy mounting. - Respect for standards. - Competitive price. - Reduced weight and dimension. - 3 times less time to install. - Simple construction ensuring reliability and longevity. - Controllable check valve approved
- Range of use: Sanitary cold water to 30°C.
- Permissible temperature up to 70 ° C.
Risk of scaling when used continuously at 70 ° C. - Max inlet pressure: 15 bar
- Adjustable outlet pressure: 1,5 to 4 bar
- Factory preset 3 ± 0,5)
- Connections ¾”M x Union nut ¾” F
Technical Features
Part no.
| Type | Part no. WIFR | Part no. WID | Size |
| REDUBLOC | 82900 | 10029528 | 1/2" M / 3/4" F х 3/4" UN |
