e-Kit upgrade of an installed ULTRAMIX
Description
The benefits of updating an existing ULTRAMIX® installation - A full system: easy to install, use and maintain - Quick implementation without dismantling the installation (plug & play) - Savings : reduced cost for upgrading the installed ULTRAMIX® - Accurate temperature, instant response, guaranteed comfort - Automated and controlled disinfection: programmable via the smart control unit - Service Continuity: in case of a power failure it maintains with precision the temperature of mixed water and manual adjustment is possible. - Traceable data: all data is saved to a micro SD card for subsequent records or interrogation (CSV format). - Compatible with Building Technical Management system: can be administered and monitored remotely (Modbus protocol).

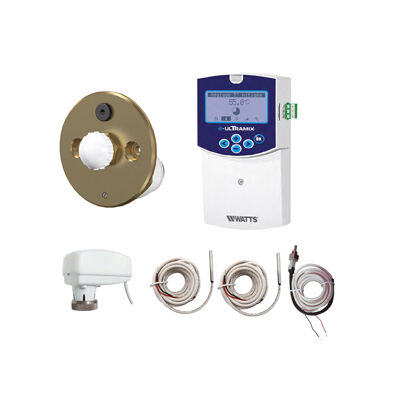

e-Cartridge.
Electric actuator.
Controller - micro SD card included.
Gable and probes (mixing valve and return).
Technical Features
Part no.
| Type | part no. | Size | № of users | Flow range, l/min | |
| e-KIT | 22TX1E37KITV3 | 3/4" | 1-7 | 3-56 | |
| e-KIT | 22TX2E37KITV3 | 3/4" | 1-10 | 3-80 | |
| e-KIT | 22TX3E37KITV3 | 1" | 1-15 | 3-120 | |
| e-KIT | 22TX4E37KITV3 | 1.1/4" | 1-21 | 5-175 | |
| e-KIT | 22TX5E37KITV3 | 1.1/2" | 1-32 | 5-260 | |
| e-KIT | 22TX6E37KITV3 | 2" | 1-50 | 6-400 |
* As an indication - take into account the number of point of use connected to the same network and simultaneously in use.
