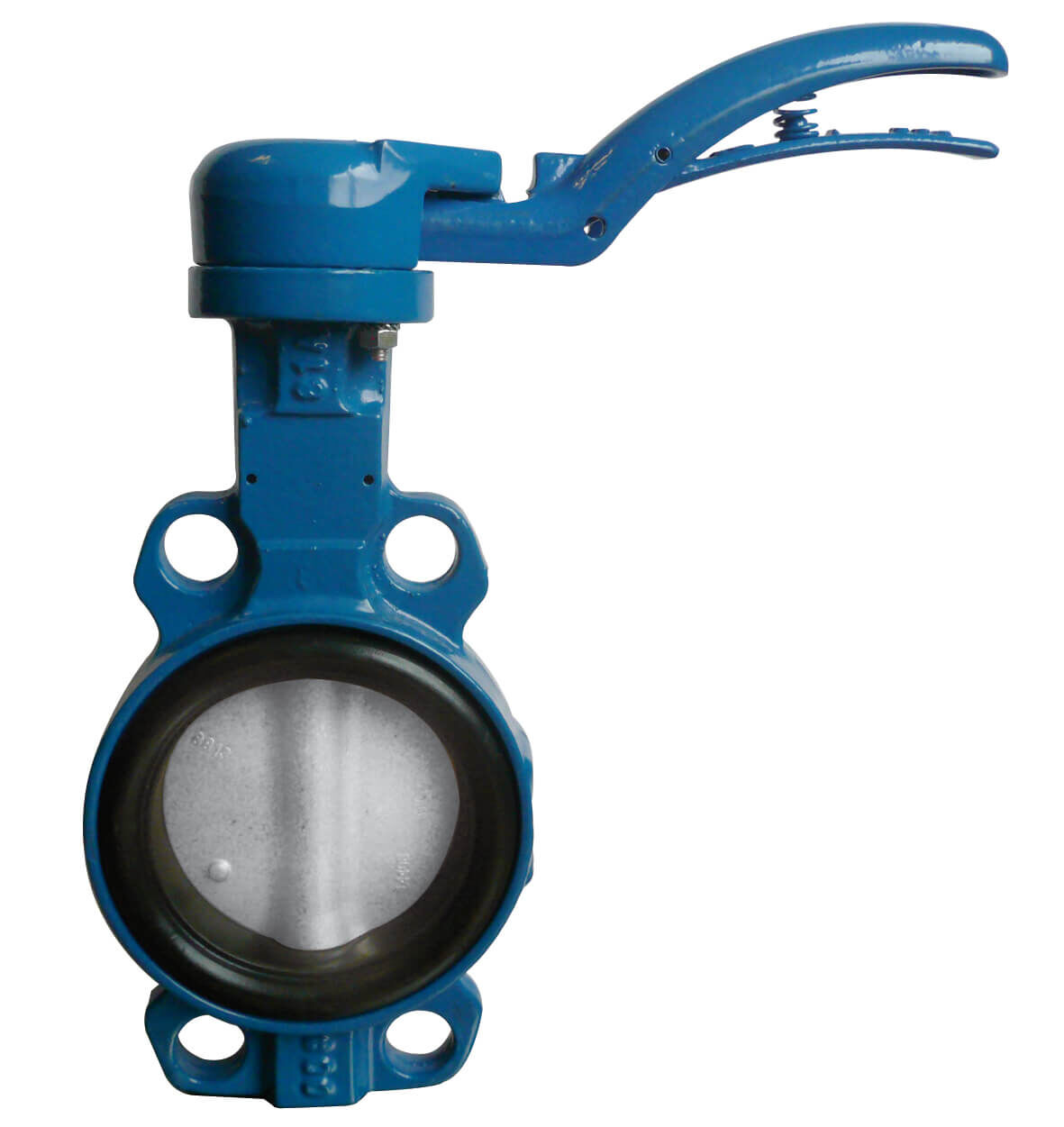

Sylax Wafer Type Butterfly Valve Cast Iron Body 316 stainless Disc EPDM Liner
×
![]()
Sylax Wafer Type Butterfly Valve Cast Iron Body 316 stainless Disc EPDM Liner
Sylax Wafer Type Butterfly Valve Cast Iron Body 316 stainless Disc EPDM Liner
Description
Designed in accordance with EN593, EN558, Class 20.
Technical Features
Part no.
| Artikelnummer | Omschrijving | DN | Aansluiting | Gewicht (kg) | VE |
| 149G34903P | XYLIA2 Wafer/EPDM/CF8M | 50 | PN16 | 3,2 | 1/160 |
| 149G34904P | XYLIA2 Wafer/EPDM/CF8M | 65 | PN16 | 3,8 | 1/160 |
| 149G34905P | XYLIA2 Wafer/EPDM/CF8M | 80 | PN16 | 3,9 | 1/160 |
| 149G34906P | XYLIA2 Wafer/EPDM/CF8M | 100 | PN16 | 5,2 | 1/120 |
| 149G34907P | XYLIA2 Wafer/EPDM/CF8M | 125 | PN16 | 7,5 | 1/90 |
| 149G34908P | XYLIA2 Wafer/EPDM/CF8M | 150 | PN16 | 8,3 | 1/90 |
