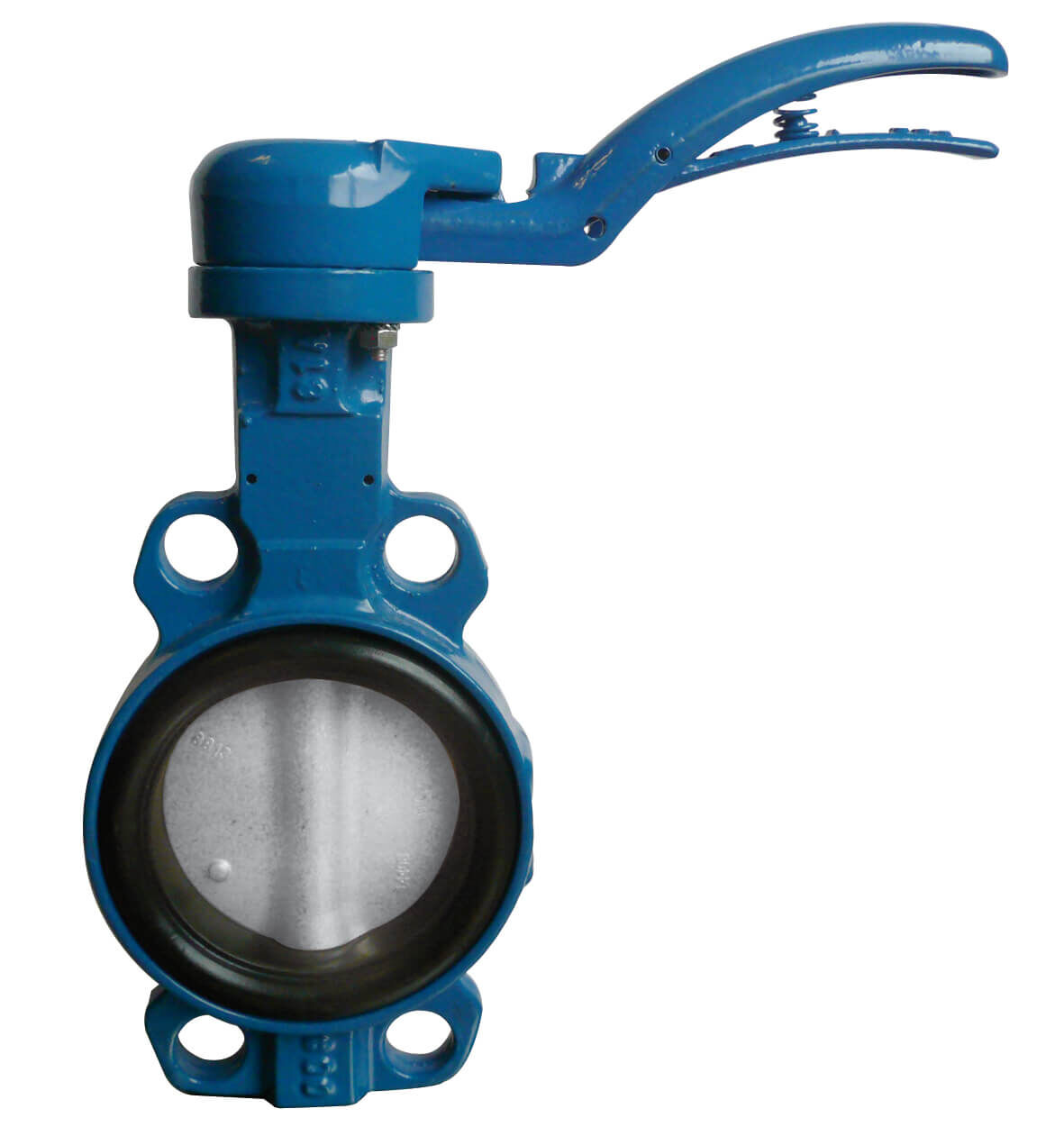

Sylax Xylia2 Wafer Type Butterfly Valve Cast Iron Body 316 stainless Disc EPDM Liner
×
![]()
Sylax Xylia2 Wafer Type Butterfly Valve Cast Iron Body 316 stainless Disc EPDM Liner
Sylax Xylia2 Wafer Type Butterfly Valve Cast Iron Body 316 stainless Disc EPDM Liner
Description
Xylia2 Product features:
-
Ductile iron (GGG40) body
-
Valve disc available in stainless steel (CF8M) or epoxy-coated cast iron (GGG40/DI epoxy).
-
Riveted metal label attached to the body for easy identification and traceability.
-
Handle (DN50-DN150) or gearbox (DN50-300) options
-
Wafer or lug options
-
Anti-ejection ring
-
EPDM seal.
-
2-year warranty.
Commercial Heating and Hot Water
-
Underfloor heating and radiator supply
-
Commercial kitchens, bathrooms, and laundry services
-
Industries processes including rinsing and sterilisation
-
Plant room applications
Process Cooling Water
-
Pharmaceutical and healthcare
-
HVAC
-
Fabrication machinery
-
Data centres
Benefits
-
Compact design for easy integration into the pipework system using wafer or lug installation, advantageous in commercial buildings with limited space in plant rooms.
-
Water-tight closure with complete shut-off for system security.
-
System design flexibility with sizes from DN50 to DN300 suitable for a wide range of commercial and industrial HVAC applications
-
Low maintenance reduces the time required for inspection and service.
-
Long service life with excellent resistance to weathering and ageing.
Technical Features
Part no.
| Product Code | DESCRIPTION | SIZE DN | Net Weight (Kg) | CONNECTION TYPE | OPERATION |
|---|---|---|---|---|---|
| 149G34903P | XYLIA 2 - DN50 - WAFER PN16 - EPDM - CF8M DISC - LEVER | 50 | 3.2 | WAFER | LEVER |
| 149G34904P | XYLIA 2 - DN65 - WAFER PN16 - EPDM - CF8M DISC - LEVER | 65 | 3.8 | WAFER | LEVER |
| 149G34905P | XYLIA 2 - DN80 - WAFER PN16 - EPDM - CF8M DISC - LEVER | 80 | 3.9 | WAFER | LEVER |
| 149G34906P | XYLIA 2 - DN100 - WAFER PN16 - EPDM - CF8M DISC - LEVER | 100 | 5.2 | WAFER | LEVER |
| 149G34907P | XYLIA 2 - DN125 - WAFER PN16 - EPDM - CF8M DISC - LEVER | 125 | 7.5 | WAFER | LEVER |
| 149G34908P | XYLIA 2 - DN150 - WAFER PN16 - EPDM - CF8M DISC - LEVER | 150 | 8.3 | WAFER | LEVER |
| 149G34903R | XYLIA 2 - DN50 - WAFER PN16 - EPDM - CF8M DISC - GEARBOX | 50 | 5.22 | WAFER | GEARBOX |
| 149G34904R | XYLIA 2 - DN65 - WAFER PN16 - EPDM - CF8M DISC - GEARBOX | 65 | 5.75 | WAFER | GEARBOX |
| 149G34905R | XYLIA 2 - DN80 - WAFER PN16 - EPDM - CF8M DISC - GEARBOX | 80 | 5.95 | WAFER | GEARBOX |
| 149G34906R | XYLIA 2 - DN100 - WAFER PN16 - EPDM - CF8M DISC - GEARBOX | 100 | 7.25 | WAFER | GEARBOX |
| 149G34907R | XYLIA 2 - DN125 - WAFER PN16 - EPDM - CF8M DISC - GEARBOX | 125 | 10.3 | WAFER | GEARBOX |
| 149G34908R | XYLIA 2 - DN150 - WAFER PN16 - EPDM - CF8M DISC - GEARBOX | 150 | 11 | WAFER | GEARBOX |
| 149G34909R | XYLIA 2 - DN200 - WAFER PN16 - EPDM - CF8M DISC - GEARBOX | 200 | 16 | WAFER | GEARBOX |
| 149G34910R | XYLIA 2 - DN250 - WAFER PN16 - EPDM - CF8M DISC - GEARBOX | 250 | 22.6 | WAFER | GEARBOX |
| 149G34911R | XYLIA 2 - DN300 - WAFER PN16 - EPDM - CF8M DISC - GEARBOX | 300 | 31.3 | WAFER | GEARBOX |
| 149G34913P | XYLIA 2 - DN50 - LUG PN16 - EPDM - CF8M DISC - LEVER | 50 | 4 | LUG | LEVER |
| 149G34914P | XYLIA 2 - DN65 - LUG PN16 - EPDM - CF8M DISC - LEVER | 65 | 4.7 | LUG | LEVER |
| 149G34915P | XYLIA 2 - DN80 - LUG PN16 - EPDM - CF8M DISC - LEVER | 80 | 5.9 | LUG | LEVER |
| 149G34916P | XYLIA 2 - DN100 - LUG PN16 - EPDM - CF8M DISC - LEVER | 100 | 7.04 | LUG | LEVER |
| 149G34917P | XYLIA 2 - DN125 - LUG PN16 - EPDM - CF8M DISC - LEVER | 125 | 9.5 | LUG | LEVER |
| 149G34918P | XYLIA 2 - DN150 - LUG PN16 - EPDM - CF8M DISC - LEVER | 150 | 11.1 | LUG | LEVER |
| 149G34913R | XYLIA 2 - DN50 - LUG PN16 - EPDM - CF8M DISC - GEARBOX | 50 | 5.94 | LUG | GEARBOX |
| 149G34914R | XYLIA 2 - DN65 - LUG PN16 - EPDM - CF8M DISC - GEARBOX | 65 | 6.62 | LUG | GEARBOX |
| 149G34915R | XYLIA 2 - DN80 - LUG PN16 - EPDM - CF8M DISC - GEARBOX | 80 | 7.83 | LUG | GEARBOX |
| 149G34916R | XYLIA 2 - DN100 - LUG PN16 - EPDM - CF8M DISC - GEARBOX | 100 | 9.05 | LUG | GEARBOX |
| 149G34917R | XYLIA 2 - DN125 - LUG PN16 - EPDM - CF8M DISC - GEARBOX | 125 | 11.42 | LUG | GEARBOX |
| 149G34918R | XYLIA 2 - DN150 - LUG PN16 - EPDM - CF8M DISC - GEARBOX | 150 | 13.03 | LUG | GEARBOX |
| 149G34919R | XYLIA 2 - DN200 - LUG PN16 - EPDM - CF8M DISC - GEARBOX | 200 | 23.4 | LUG | GEARBOX |
| 149G34920R | XYLIA 2 - DN250 - LUG PN16 - EPDM - CF8M DISC - GEARBOX | 250 | 32.85 | LUG | GEARBOX |
| 149G34921R | XYLIA 2 - DN300 - LUG PN16 - EPDM - CF8M DISC - GEARBOX | 300 | 43.3 | LUG | GEARBOX |
| 149G34923P | XYLIA 2 - DN50 - WAFER PN16 - EPDM - DI EPOXY DISC - LEVER | 50 | 3.2 | WAFER | LEVER |
| 149G34924P | XYLIA 2 - DN65 - WAFER PN16 - EPDM - DI EPOXY DISC - LEVER | 65 | 3.7 | WAFER | LEVER |
| 149G34925P | XYLIA 2 - DN80 - WAFER PN16 - EPDM - DI EPOXY DISC - LEVER | 80 | 3.9 | WAFER | LEVER |
| 149G34926P | XYLIA 2 - DN100 - WAFER PN16 - EPDM - DI EPOXY DISC - LEVER | 100 | 5.2 | WAFER | LEVER |
| 149G34927P | XYLIA 2 - DN125 - WAFER PN16 - EPDM - DI EPOXY DISC - LEVER | 125 | 7.4 | WAFER | LEVER |
| 149G34928P | XYLIA 2 - DN150 - WAFER PN16 - EPDM - DI EPOXY DISC - LEVER | 150 | 8.2 | WAFER | LEVER |
| 149G34923R | XYLIA 2 - DN50 - WAFER PN16 - EPDM - DI EPOXY DISC - GEARBOX | 50 | 5.2 | WAFER | GEARBOX |
| 149G34924R | XYLIA 2 - DN65 - WAFER PN16 - EPDM - DI EPOXY DISC - GEARBOX | 65 | 5.73 | WAFER | GEARBOX |
| 149G34925R | XYLIA 2 - DN80 - WAFER PN16 - EPDM - DI EPOXY DISC - GEARBOX | 80 | 5.92 | WAFER | GEARBOX |
| 149G34926R | XYLIA 2 - DN100 - WAFER PN16 - EPDM - DI EPOXY DISC - GEARBOX | 100 | 7.22 | WAFER | GEARBOX |
| 149G34927R | XYLIA 2 - DN125 - WAFER PN16 - EPDM - DI EPOXY DISC - GEARBOX | 125 | 10.3 | WAFER | GEARBOX |
| 149G34928R | XYLIA 2 - DN150 - WAFER PN16 - EPDM - DI EPOXY DISC - GEARBOX | 150 | 11 | WAFER | GEARBOX |
| 149G34929R | XYLIA 2 - DN200 - WAFER PN16 - EPDM - DI EPOXY DISC - GEARBOX | 200 | 15.7 | WAFER | GEARBOX |
| 149G34930R | XYLIA 2 - DN250 - WAFER PN16 - EPDM - DI EPOXY DISC - GEARBOX | 250 | 22.1 | WAFER | GEARBOX |
| 149G34931R | XYLIA 2 - DN300 - WAFER PN16 - EPDM - DI EPOXY DISC - GEARBOX | 300 | 30.5 | WAFER | GEARBOX |
| 149G34933P | XYLIA 2 - DN50 - LUG PN16 - EPDM - DI EPOXY DISC - LEVER | 50 | 4 | LUG | LEVER |
| 149G34934P | XYLIA 2 - DN65 - LUG PN16 - EPDM - DI EPOXY DISC - LEVER | 65 | 4.6 | LUG | LEVER |
| 149G34935P | XYLIA 2 - DN80 - LUG PN16 - EPDM - DI EPOXY DISC - LEVER | 80 | 5.9 | LUG | LEVER |
| 149G34936P | XYLIA 2 - DN100 - LUG PN16 - EPDM - DI EPOXY DISC - LEVER | 100 | 7.04 | LUG | LEVER |
| 149G34937P | XYLIA 2 - DN125 - LUG PN16 - EPDM - DI EPOXY DISC - LEVER | 125 | 9.4 | LUG | LEVER |
| 149G34938P | XYLIA 2 - DN150 - LUG PN16 - EPDM - DI EPOXY DISC - LEVER | 150 | 11 | LUG | LEVER |
| 149G34933R | XYLIA 2 - DN50 - LUG PN16 - EPDM - DI EPOXY DISC - GEARBOX | 50 | 5.92 | LUG | GEARBOX |
| 149G34934R | XYLIA 2 - DN65 - LUG PN16 - EPDM - DI EPOXY DISC - GEARBOX | 65 | 6.6 | LUG | GEARBOX |
| 149G34935R | XYLIA 2 - DN80 - LUG PN16 - EPDM - DI EPOXY DISC - GEARBOX | 80 | 7.8 | LUG | GEARBOX |
| 149G34936R | XYLIA 2 - DN100 - LUG PN16 - EPDM - DI EPOXY DISC - GEARBOX | 100 | 9.02 | LUG | GEARBOX |
| 149G34937R | XYLIA 2 - DN125 - LUG PN16 - EPDM - DI EPOXY DISC - GEARBOX | 125 | 11.42 | LUG | GEARBOX |
| 149G34938R | XYLIA 2 - DN150 - LUG PN16 - EPDM - DI EPOXY DISC - GEARBOX | 150 | 13.03 | LUG | GEARBOX |
| 149G34939R | XYLIA 2 - DN200 - LUG PN16 - EPDM - DI EPOXY DISC - GEARBOX | 200 | 23.1 | LUG | GEARBOX |
| 149G34940R | XYLIA 2 - DN250 - LUG PN16 - EPDM - DI EPOXY DISC - GEARBOX | 250 | 32.35 | LUG | GEARBOX |
| 149G34941R | XYLIA 2 - DN300 - LUG PN16 - EPDM - DI EPOXY DISC - GEARBOX | 300 | 42.5 | LUG | GEARBOX |
