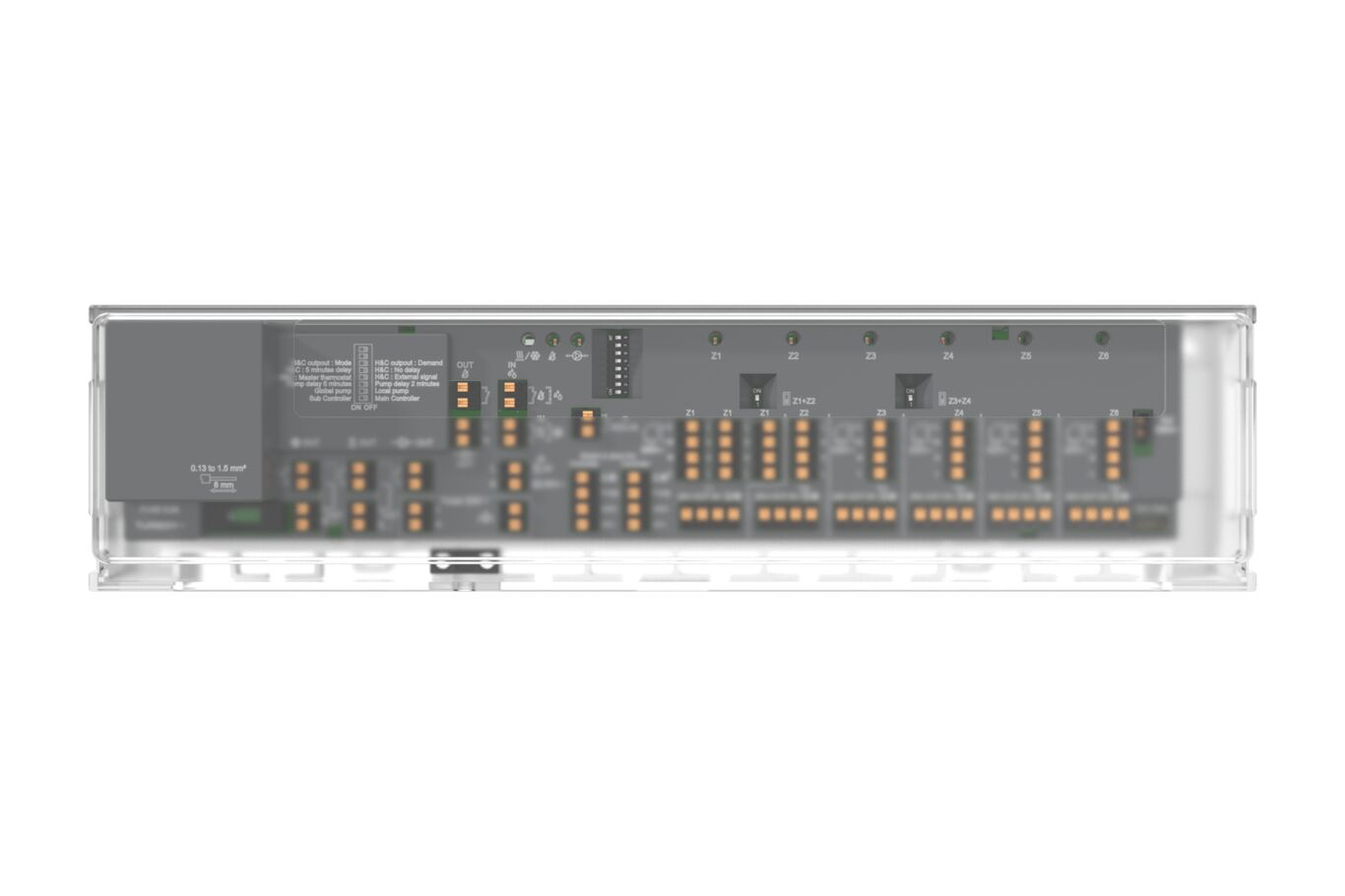

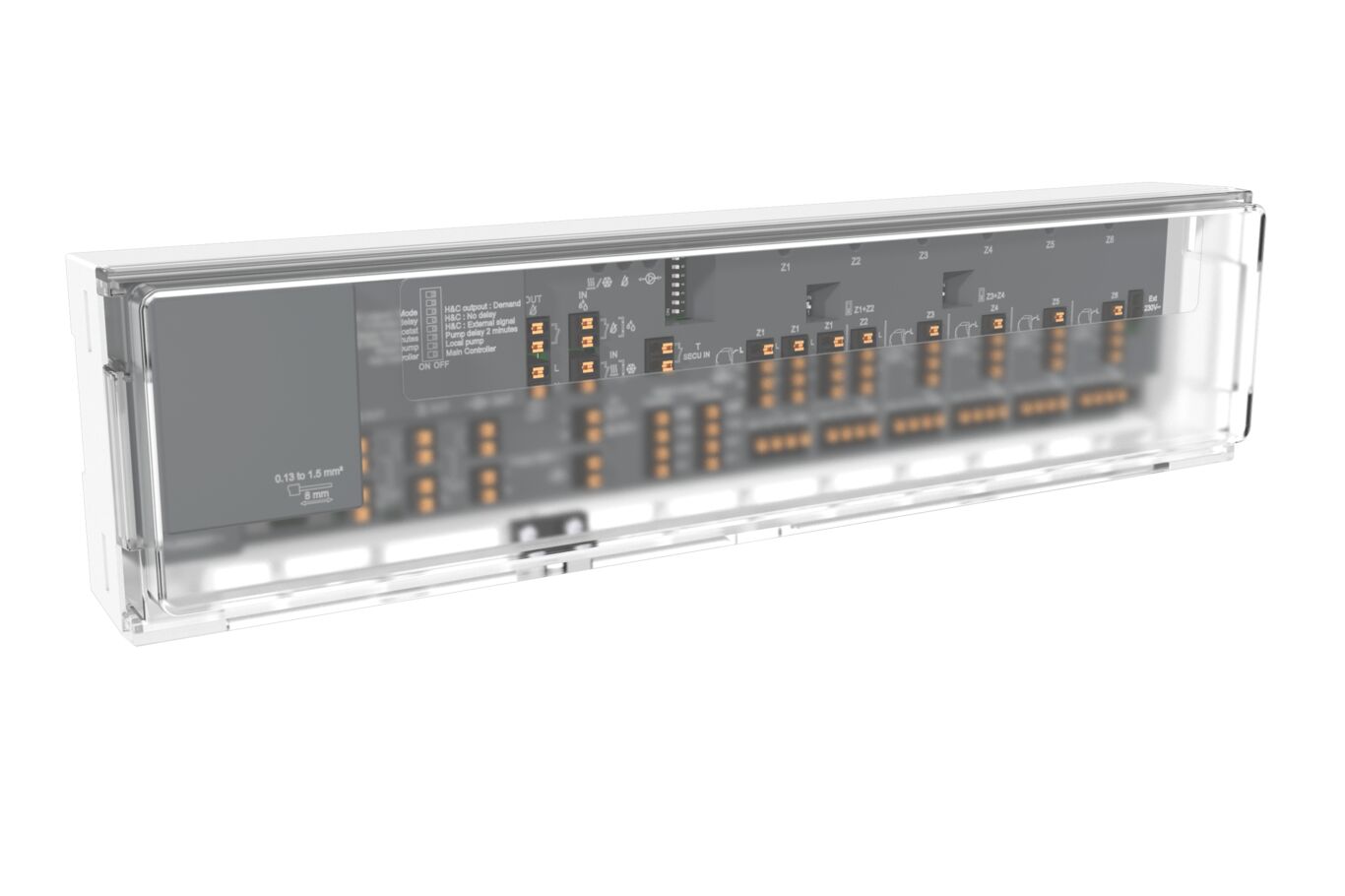

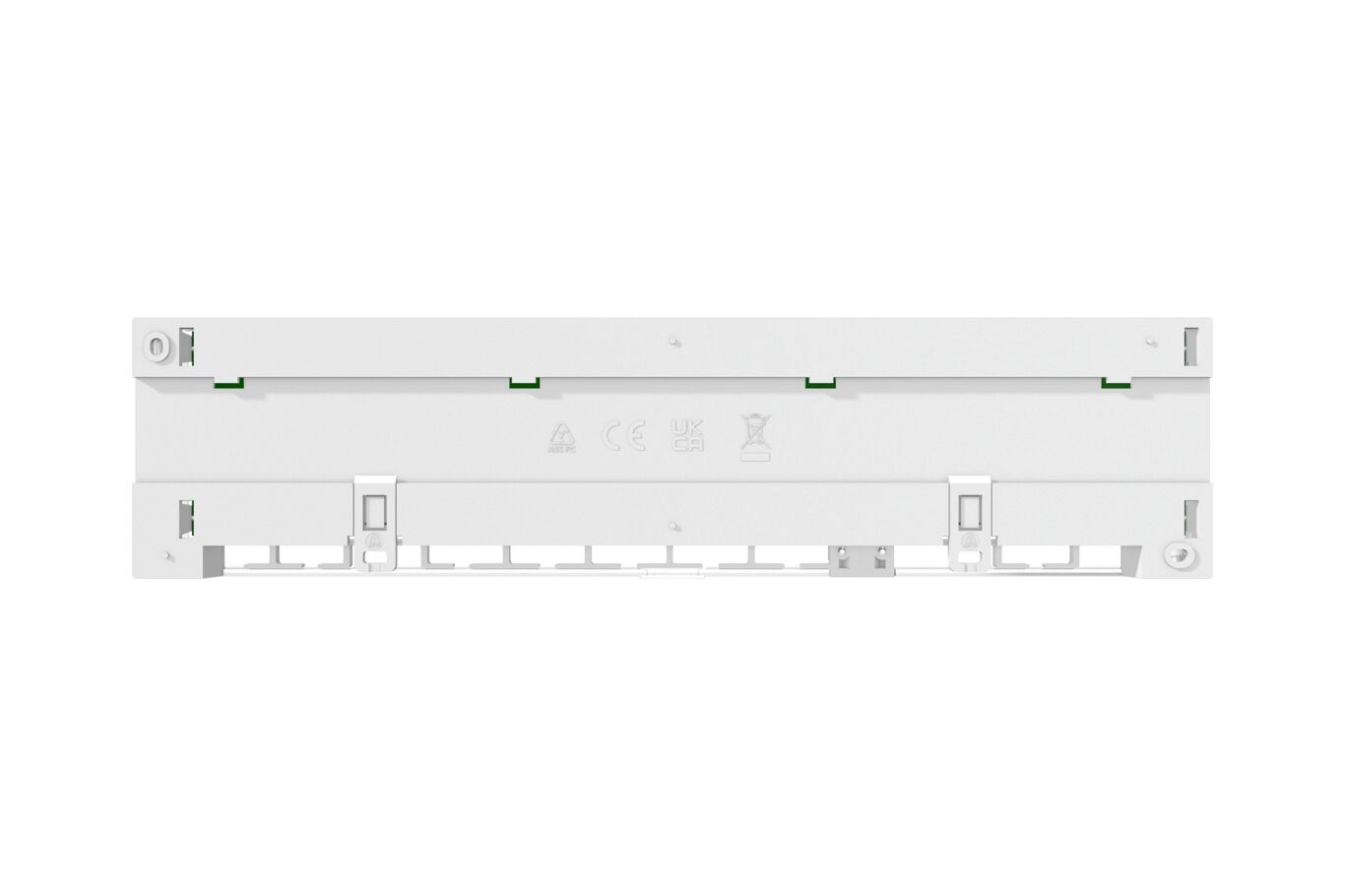

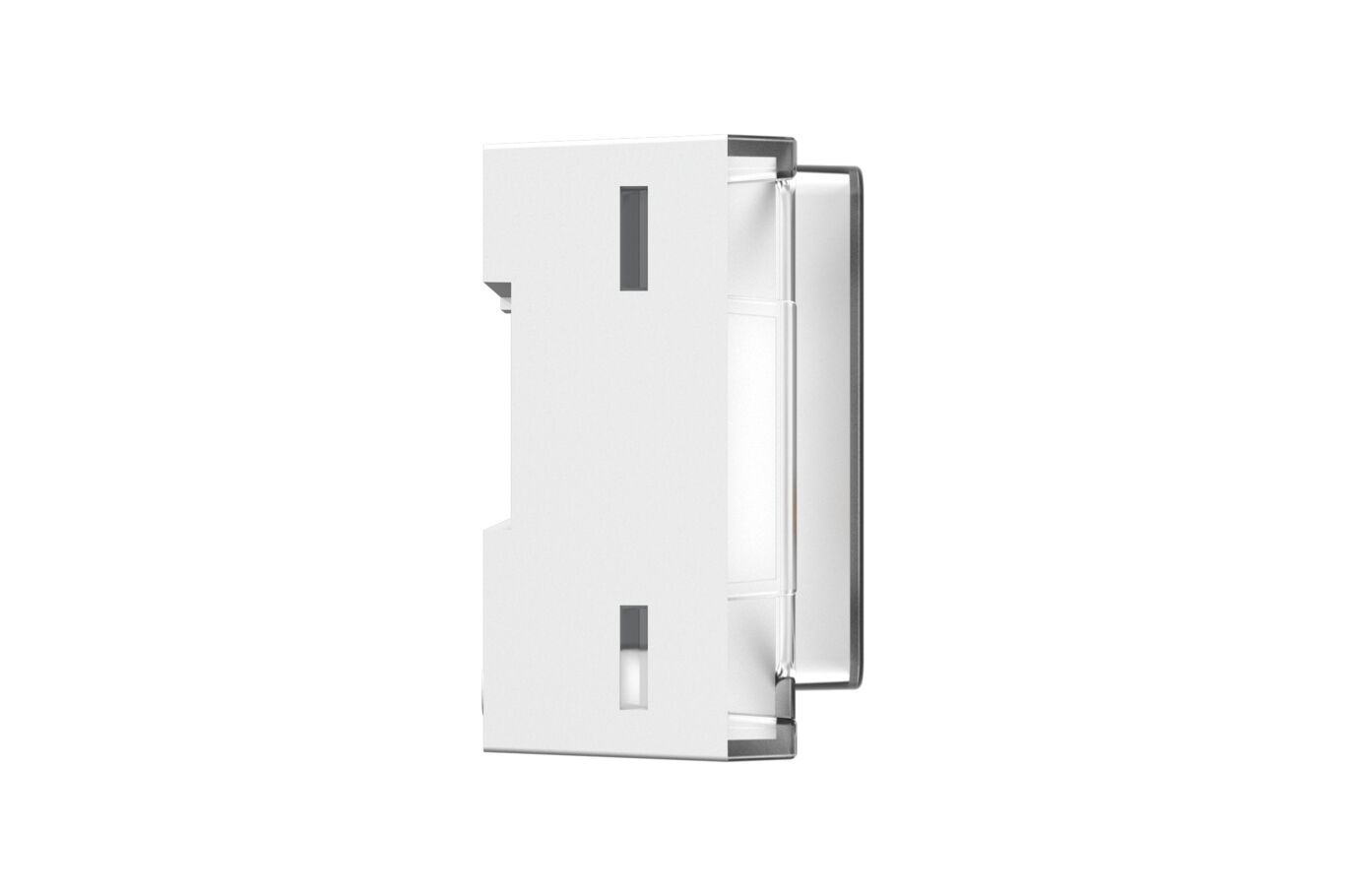

Wired Water Heating Controller Heat & Cool WFC-03 HC TH, 230V actuators, 24V thermostats
Beschrijving
The Connecting box WFC-03 is especially designed to control your Under Floor Heating and Cooling system. It allows easy and quick connection of 24V thermostats and 230V actuators.
It has integrated multiple functions:
• Wall mounted or mounted on DIN Rail
• Push-in cable connections with strain relief
• LED status indication and DIP switch for device setting
• Easy merging of the zones on the same thermostat (DIP switches)
• Link between 2 connecting boxes (to share H&C mode, clock signal and pump signals)
• H&C input (230V and volt free signal) and Clock input (230V)
• Separate heating and cooling Volt free outputs
• Pump or boiler output (230V and volt free signal)
• Heating and cooling output (Volt Free signal)
• Anti-Grip management
• Overheating security
• Humidity detection input, dehumidifier switching
Technical Features
Artikelnummer
| Type | Part no. |
| WFC-03 6Z HC 230 24V TH | P08699 |
