Elektromagnetický ventil pre plyn, N.C., EV
×
![]()
Elektromagnetický ventil pre plyn, N.C., EV
Elektromagnetický ventil pre plyn, N.C., EV
Popis

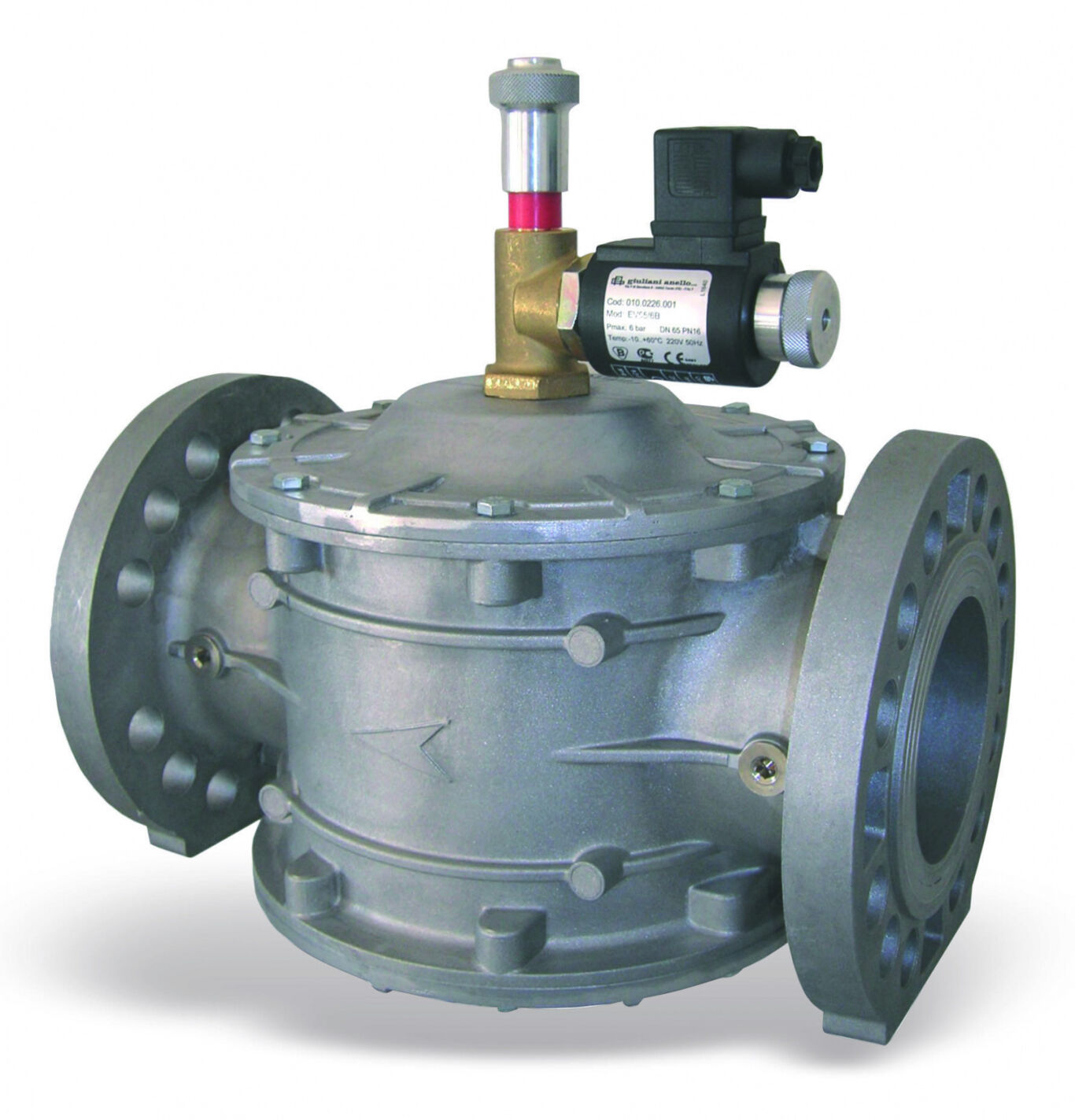

Normally closed gas solenoid valve with manual resetting. Aluminium body. Coil with IP65 connector. Suitable for manufactured gas, natural gas, liquefied petroleum gas (LPG), non-aggressive gas and air. Operating temperature range: -20÷60°C. Max. operating pressure: 0.5 bar.
Technické údaje
Obj. číslo
| Typ | Kód | Pripojenie | Popis | Q.ty/Box | Box/Karton |
| EV15 | 010.0180.001 | 1/2" | Napäte 230 Vac. | 1 | 1 |
| EV15 | 010.0180.002 | 1/2" | Napäte 24 Vac./Vdc. | 1 | 1 |
| EV15 | 010.0180.003 | 1/2" | Napäte 12 Vdc. | 1 | 1 |
| EV20 | 010.0181.001 | 3/4" | Napäte 230 Vac. | 1 | 1 |
| EV20 | 010.0181.002 | 3/4" | Napäte 24 Vac./Vdc. | 1 | 1 |
| EV20 | 010.0181.003 | 3/4" | Napäte 12 Vdc. | 1 | 1 |
| EV25 | 010.0182.001 | 1" | Napäte 230 Vac. | 1 | 1 |
| EV25 | 010.0182.002 | 1" | Napäte 24 Vac./Vdc. | 1 | 1 |
| EV25 | 010.0182.003 | 1" | Napäte 12 Vdc. | 1 | 1 |
| EV32 | 010.0183.001 | 1.1/4" | Napäte 230 Vac. | 1 | 1 |
| EV32 | 010.0183.002 | 1.1/4" | Napäte 24 Vac./Vdc. | 1 | 1 |
| EV32 | 010.0183.003 | 1.1/4" | Napäte 12 Vdc. | 1 | 1 |
| EV40 | 010.0184.001 | 1.1/2" | Napäte 230 Vac. | 1 | 1 |
| EV40 | 010.0184.002 | 1.1/2" | Napäte 24 Vac./Vdc. | 1 | 1 |
| EV40 | 010.0184.003 | 1.1/2" | Napäte 12 Vdc. | 1 | 1 |
| EV40F | 010.0184.011 | DN40 | Napäte 230 Vac. | 1 | 1 |
| EV40F | 010.0184.012 | DN40 | Napäte 24 Vac./Vdc. | 1 | 1 |
| EV40F | 010.0184.013 | DN40 | Napäte 12 Vdc. | 1 | 1 |
| EV50 | 010.0185.001 | 2" | Napäte 230 Vac. | 1 | 1 |
| EV50 | 010.0185.002 | 2" | Napäte 24 Vac./Vdc. | 1 | 1 |
| EV50 | 010.0185.003 | 2" | Napäte 12 Vdc. | 1 | 1 |
| EV50F | 010.0185.011 | DN50 | Napäte 230 Vac. | 1 | 1 |
| EV50F | 010.0185.012 | DN50 | Napäte 24 Vac./Vdc. | 1 | 1 |
| EV50F | 010.0185.013 | DN50 | Napäte 12 Vdc. | 1 | 1 |
| EV65 | 010.0186.101 | DN65 | Napäte 230 Vac. | 1 | 1 |
| EV65 | 010.0186.102 | DN65 | Napäte 24 Vac. | 1 | 1 |
| EV65 | 010.0186.103 | DN65 | Napäte 24 Vdc. | 1 | 1 |
| EV65 | 010.0186.104 | DN65 | Napäte 12 Vdc. | 1 | 1 |
| EV80 | 010.0187.101 | DN80 | Napäte 230 Vac. | 1 | 1 |
| EV80 | 010.0187.102 | DN80 | Napäte 24 Vac. | 1 | 1 |
| EV80 | 010.0187.103 | DN80 | Napäte 24 Vdc. | 1 | 1 |
| EV80 | 010.0187.104 | DN80 | Napäte 12 Vdc. | 1 | 1 |
| EV100 | 010.0188.001 | DN100 | Napäte 230 Vac. | 1 | 1 |
| EV100 | 010.0188.002 | DN100 | Napäte 24 Vac. | 1 | 1 |
| EV100 | 010.0188.003 | DN100 | Napäte 24 Vdc. | 1 | 1 |
| EV100 | 010.0188.004 | DN100 | Napäte 12 Vdc. | 1 | 1 |
| EV125 | 010.0189.001 | DN125 | Napäte 230 Vac. | 1 | 1 |
| EV125 | 010.0189.002 | DN125 | Napäte 24 Vac./Vdc. | 1 | 1 |
| EV125 | 010.0189.003 | DN125 | Napäte 12 Vdc. | 1 | 1 |
| EV150 | 010.0190.001 | DN150 | Napäte 230 Vac. | 1 | 1 |
| EV150 | 010.0190.002 | DN150 | Napäte 24 Vac./Vdc. | 1 | 1 |
| EV150 | 010.0190.003 | DN150 | Napäte 12 Vdc. | 1 | 1 |
| EV200 | 010.0191.001 | DN200 | Napäte 230 Vac. | 1 | 1 |
| EV200 | 010.0191.002 | DN200 | Napäte 24 Vac./Vdc. | 1 | 1 |
| EV200 | 010.0191.003 | DN200 | Napäte 12 Vdc. | 1 | 1 |
| EV300 | 010.0192.001 | DN300 | Napäte 230 Vac. | 1 | 1 |
| EV300 | 010.0192.002 | DN300 | Napäte 24 Vac./Vdc. | 1 | 1 |
| EV300 | 010.0192.003 | DN300 | Napäte 12 Vdc. | 1 | 1 |
