Nabíjacia kotlová jednotka KLSC20 KLSC25 KLSC32
×
![]()
Nabíjacia kotlová jednotka KLSC20 KLSC25 KLSC32
Nabíjacia kotlová jednotka KLSC20 KLSC25 KLSC32
Popis

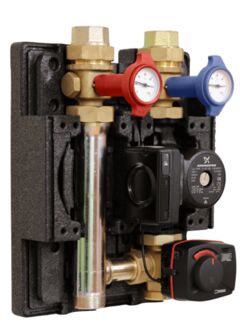

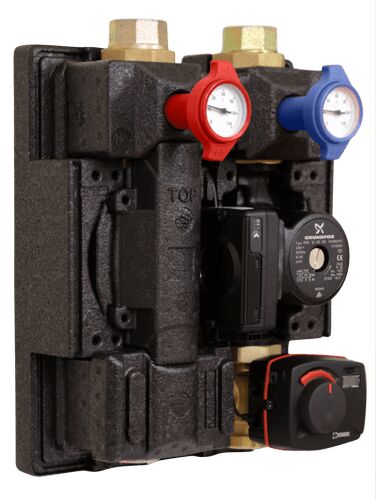

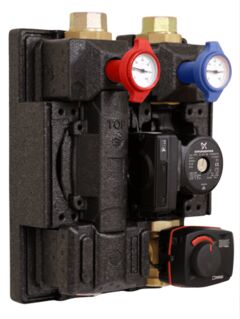

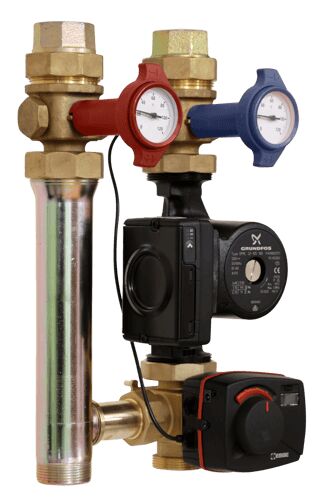

Boiler charging with units with electronic fixed point control for quickly reaching the operating temperature of solid fuel boilers. Mixer motor with integrated fixed value control. Setting range 5 - 95 °C. Temperature preset to 60 °C. Ball valves with integrated thermometers, gravity brake that can be opened, circulation pump 130 mm for KLSC20 and 180 mm for KLSC25 or KLSC32, factory-wired, output up to 120 kW possible. GEG-compliant (German Buildings Energy Act) thermal insulation by EPP insulation shell.
- Setting range 5 - 95 °C.
- Temperature preset to 60 °C.
- Circulation pump 130 mm for KLSC20
- Circulation pump 180 mm for KLSC25 or KLSC32
- Output up to 120 kW possible
Technické údaje
Obj. číslo
| Typ | DN | Kvs | Obj. číslo | ||
| KLSC20 | Wilo Para SC/6 | 20 | 6,3 | 10084646 | |
| KLSC20 | Grundfos UPM3A/7 | 20 | 6,3 | 10084647 | |
| KLSC20 | bez čerpadla | 20 | 6,3 | 10084648 | |
| KLSC25 | Wilo Para SC/6 | 25 | 10 | 10084649 | |
| KLSC25 | Grundfos UPM3A/7 | 25 | 10 | 10084650 | |
| KLSC25 | bez čerpadla | 25 | 10 | 10084651 | |
| KLSC32 | Wilo Stratos Para8 | 32 | 18 | 10084652 | už nie je k dispozícii |
| KLSC32 | Grundfos UPML10 | 32 | 18 | 10084653 | |
| KLSC32 | bez čerpadla | 32 | 18 | 10084654 | už nie je k dispozícii |
