KLS25 with thermostatic mixing valve
KLS25 with thermostatic mixing valve
Описание

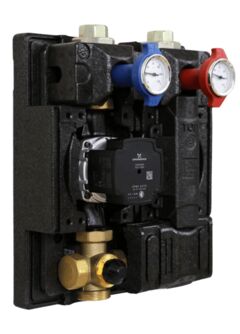

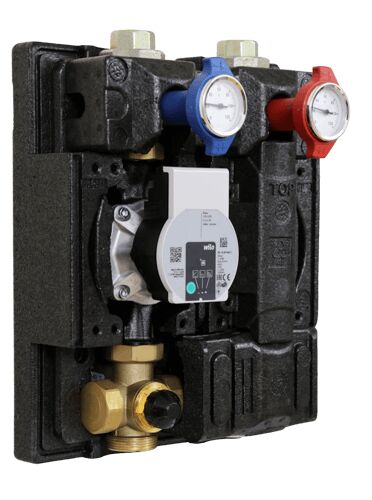

Ready-to-mount, compact unit to rapidly achieve the necessary operating temperature of solid-fuel fired boilers. With thermostatic mixing valve. Dynamic bypass closes reciprocally in proportion to the increasing charging temperature. Thermometer integrated into the multifunctional shut-off valve. Arrangeable flow stops. Circulating pump 180 mm. Thermostatic mixing valve temperature pre-set to 58 °C, not changeable. Up to 50 KW heat output possible. EPP insulation.
