KLS25 with thermostatic mixing valve
×
![]()
KLS25 with thermostatic mixing valve
KLS25 with thermostatic mixing valve
Description
Ready-to-mount, compact unit to rapidly achieve the necessary operating temperature of solid-fuel fired boilers. With thermostatic mixing valve. Dynamic bypass closes reciprocally in proportion to the increasing charging temperature. Thermometer integrated into the multifunctional shut-off valve. Arrangeable flow stops. Circulating pump 180 mm. Thermostatic mixing valve temperature pre-set to 58 °C, not changeable. Up to 50 KW heat output possible. EPP insulation.
- Circulating pump 180 mm.
- Thermostatic mixing valve temperature pre-set to 58 °C, not changeable.
- Up to 50 KW heat output possible.
Technical Features
Part no.
| Type | Description | Part no. | |

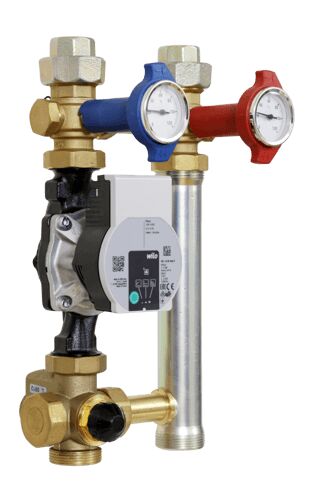

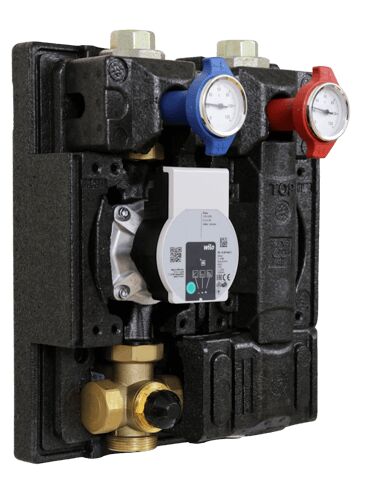

| KLS 25 | Wilo Para SC 25/6 | 10084158 | |

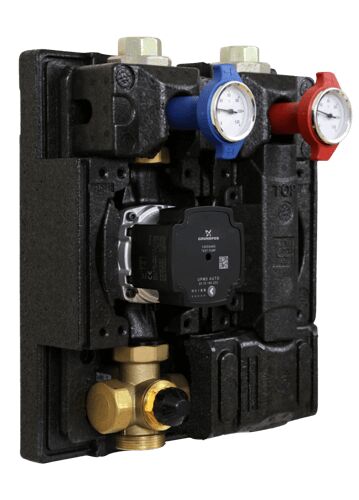

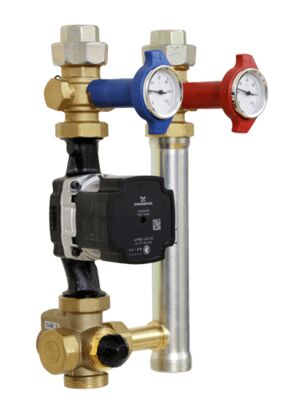

| KLS 25 | Grundfos UPM3A/7 | 10084645 | |
| KLS 25 | without pump | 10027902 | the product is discontued |
| KlS 25 | Yonos PARA 25/6 | 10026341 | the product is discontued |
| KlS 25 | Alpha2l25-60 | 10026343 | the product is discontued |
