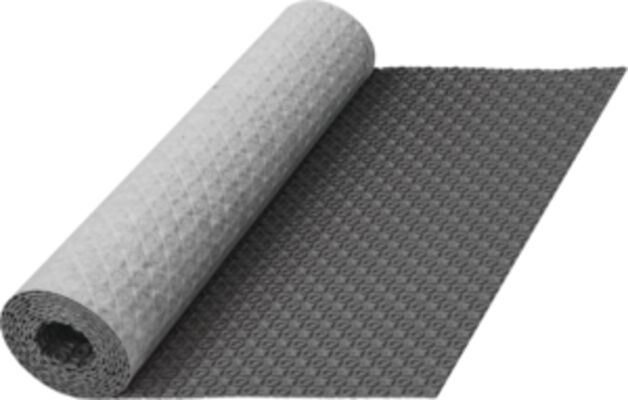

HeatMatrixTM

Description

For fast, easy installation of WarmWire® under tile & stone

Simply press WarmWire® into the HeatMatrixTM channels at the selected spacing • Protect tile and stone from cracking with a sheer stress control layer that isolates the surface from subfloor movement
Provide a barrier against surface water with durable polypropylene construction
HeatMatrixTM is ideal for below grade installations with deep-grooved channels that allow evaporation of moisture from below the membrane

Protect your investment in flooring while reducing WarmWire installation time. Flexible spacing options let you adjust the heat output and easily fit WarmWire within the space.

Roll Selection

HeatMatrixTM is installed in both unheated and heated areas to provide crack-isolation, vapor management, and waterproofing. Order a quantity that will cover the full square footage of the area to be tiled.

For areas where the floor is exposed to surface water, HeatMatrixTM Joint Tape is recommended to seal the seams.

Technical Features

Part no.

HeatMatrixTM roll sizes

Coverage	L x W	Code	Model
15m2	(15 m x 1 m)	81019454	8006GRY161-ST
3.7m2	( 3.71 m x 1 m)	81019455	8006GRY40-ST
0.9m2	(1 m x .95 m)	81020013	8006GRY11-ST

Joint Tape

Coverage	L x W	Code	Model
0.97m2	(7.62 m x .127 m)	81019457	8006HJS-ST
