Description
The flexibility to fit any floor plan at a cost effective price
- Wire is easily secured with CableStrap™ or HeatMatrix™ uncoupling membrane
- Wire spacing can be adjusted to match rooms with different heating needs.
- Constant diameter wire allows for increased jobsite toughness and durability
- Constant diameter wire makes installation with HeatMatrixTM quick and easy
- 25-year warranty

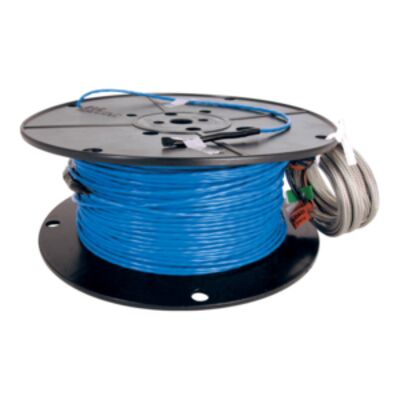

WarmWire® Spools
WarmWire coverage depends on the selected wire spacing.
73.66cm spacing is recommended for high heat loss areas such as conservatories.
91.44cm spacing is recommended for kitchens, bathrooms, and living rooms over wood-framed subfloors.
104.14cm spacing may be used in lower heat loss areas such as hallways.
Technical Features
Part no.
| Heated Area (m2) | ||||||
| 73.66cm O.C. (13.38 W/ft2) | 91.44cm O.C. (11.15 W/ft2) | 104.14cm O.C. (9.57 W/ft2) | Code | Model | Length | Amps |
| 1.58 | 1.86 | 2.23 | 81019572 | 240020WB-CST | 78' | 1.0 |
| 2.32 | 2.79 | 3.34 | 81019573 | 240030WB-CST | 117' | 1.5 |
| 3.16 | 3.72 | 4.46 | 81019574 | 240040WB-CST | 157' | 2.0 |
| 3.90 | 4.65 | 5.57 | 81019575 | 240050WB-CST | 196' | 2.5 |
| 4.74 | 5.57 | 6.69 | 81019576 | 240060WB-CST | 235' | 3.0 |
| 5.48 | 6.50 | 7.80 | 81019577 | 240070WB-CST | 274' | 3.5 |
| 6.22 | 7.43 | 8.92 | 81019578 | 240080WB-CST | 313' | 4.0 |
| 7.06 | 8.36 | 10.03 | 81019579 | 240090WB-CST | 352' | 4.5 |
| 7.80 | 9.29 | 11.15 | 81019580 | 240100WB-CST | 391' | 5.0 |
| 9.38 | 11.15 | 13.38 | 81019581 | 240120WB-CST | 470' | 6.0 |
| 10.96 | 13.01 | 15.61 | 81019582 | 240140WB-CST | 548' | 7.0 |
| 12.54 | 14.86 | 17.84 | 81019583 | 240160WB-CST | 626' | 8.0 |
| 14.03 | 16.72 | 20.07 | 81019584 | 240180WB-CST | 704' | 9.0 |
| 15.61 | 18.58 | 22.30 | 81019585 | 240200WB-CST | 783' | 10.0 |
| 15.61 | 18.58 | 22.30 | 81019585 | 240200WB-CST | 783' | 10.0 |
