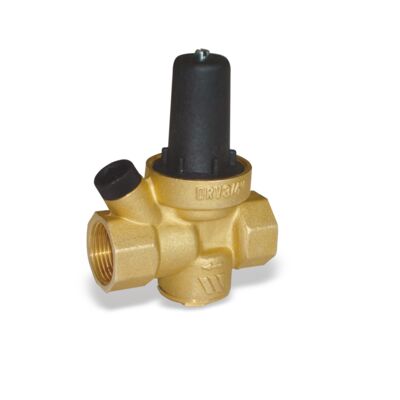

DRV/E Pressure Reducing Valve

Description

Type DRV/E Pressure Reducing Valve. Brass CW602N Body (anti-dezincification alloy). Complete with Swivel Nut. Diaphragm pressure educing valve. Designed to be compact. Can be used for water or compressed air and mounted in any position. WRAS approved for cold water.

PN25
Adjustable downstream pressure: 1.5 - 6 bar
Max. fluid temperature: 30 °C

UK STANDARD STOCK

Technical Features

Part no.

Type	Product Code	Max. Upstream Pressure	Adjustable Downstream Pressure	Compression	Max. Fluid Temp.
DRV/E	5021152	5 bar	1.5 - 6 bar	15mm	70°C
DRV/E	502120	25 bar	1.5 - 6 bar	22mm	70°C
